Fuel Level Sensor: Testing and Inspection
Fuel Level Sensor InspectionReference: Fuel Level Sensor Removal and Installation

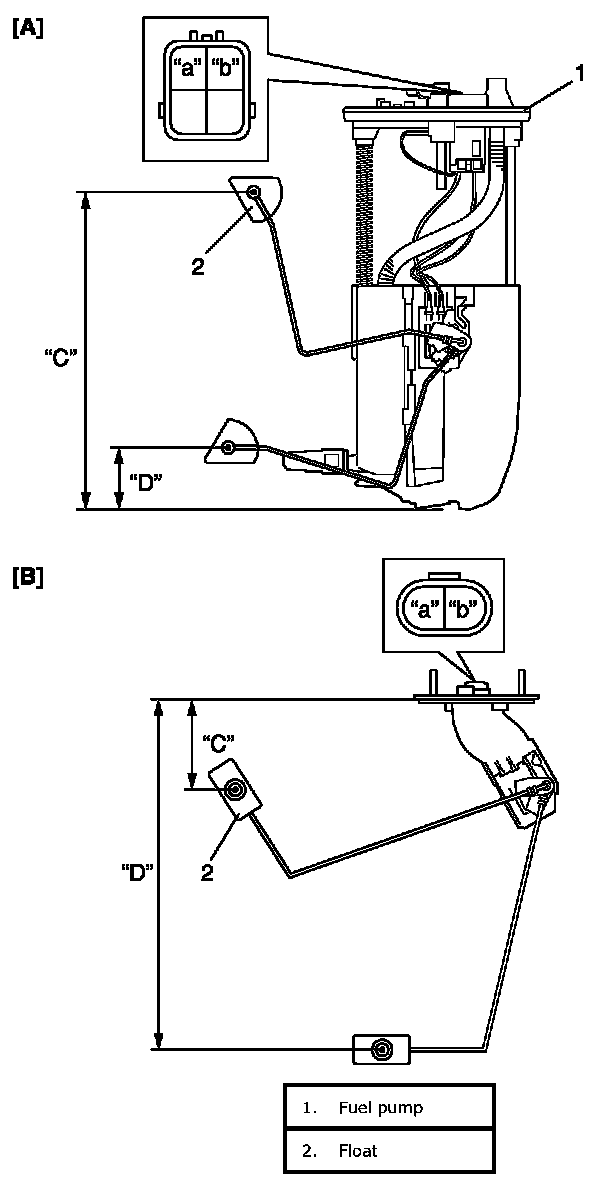

- Check that resistance between terminals "a" and "b" of fuel level sensor changes with change of float position.
- Check resistance between terminals "a" and "b" at each float position in the following.
If the measured value is out of specification, replace fuel pump and/or sub fuel level sensor.
Main fuel level sensor [A] specifications

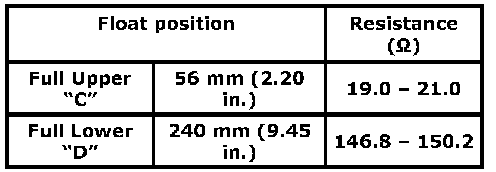

Main Fuel Level Sensor (A) Specifications:
Sub fuel level sensor [B] specifications

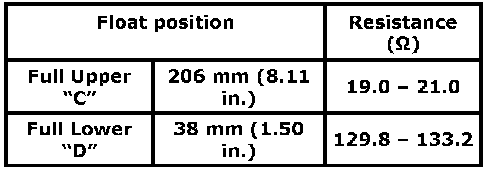

Sub Fuel Level Sensor (B) Specifications:
