Cold Start Performance Monitor
OBD System Description - Cold Start Performance MonitorSystem Description / Monitoring Procedure
The ECM retards the ignition timing and increases the idle speed to quickly increase the catalyst temperature at cold start to reduce emissions. The ECM monitors the ignition timing and the idle speed for cold start. If the idle speed or the ignition timing is out of specification, the ECM will set DTC.
DTC Description / Detecting Condition / Confirmation Procedure
P050A
Refer to DTC P050A / P050B: Cold Start Idle Air Control System Performance / Cold Start Ignition Timing Performance.
P050B
Refer to DTC P050A / P050B: Cold Start Idle Air Control System Performance / Cold Start Ignition Timing Performance.

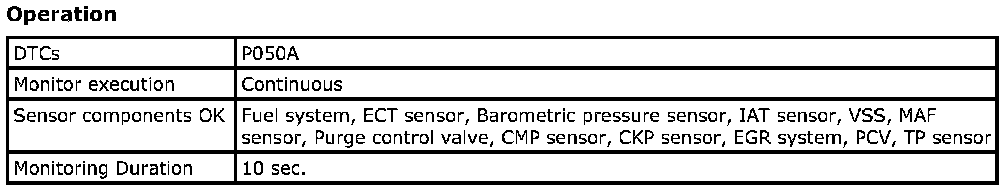

Cold Start Idle Air Control System Performance Monitor
Cold Start Idle Air Control System Performance Monitor:

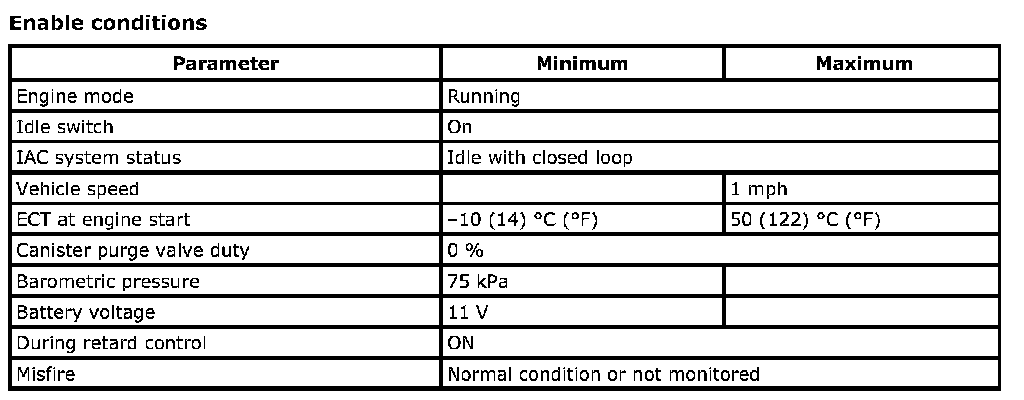

Enable Conditions:

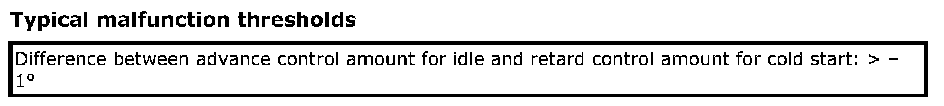

Typical Malfunction Thresholds:
Cold Start Ignition Timing Monitor

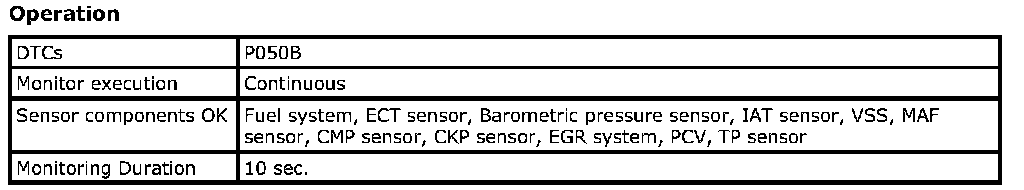

Operation:

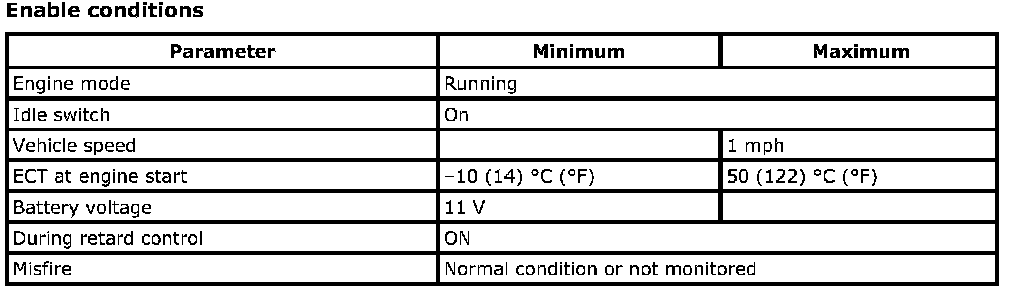

Enable Conditions:
Typical Malfunction Thresholds:
