Engine Symptom Diagnosis
Engine Symptom DiagnosisPerform troubleshooting referring to the following table when ECM has detected no DTC and no abnormality has been found Visual Inspection Visual Inspection in and Engine Basic Check. Engine Basic Check

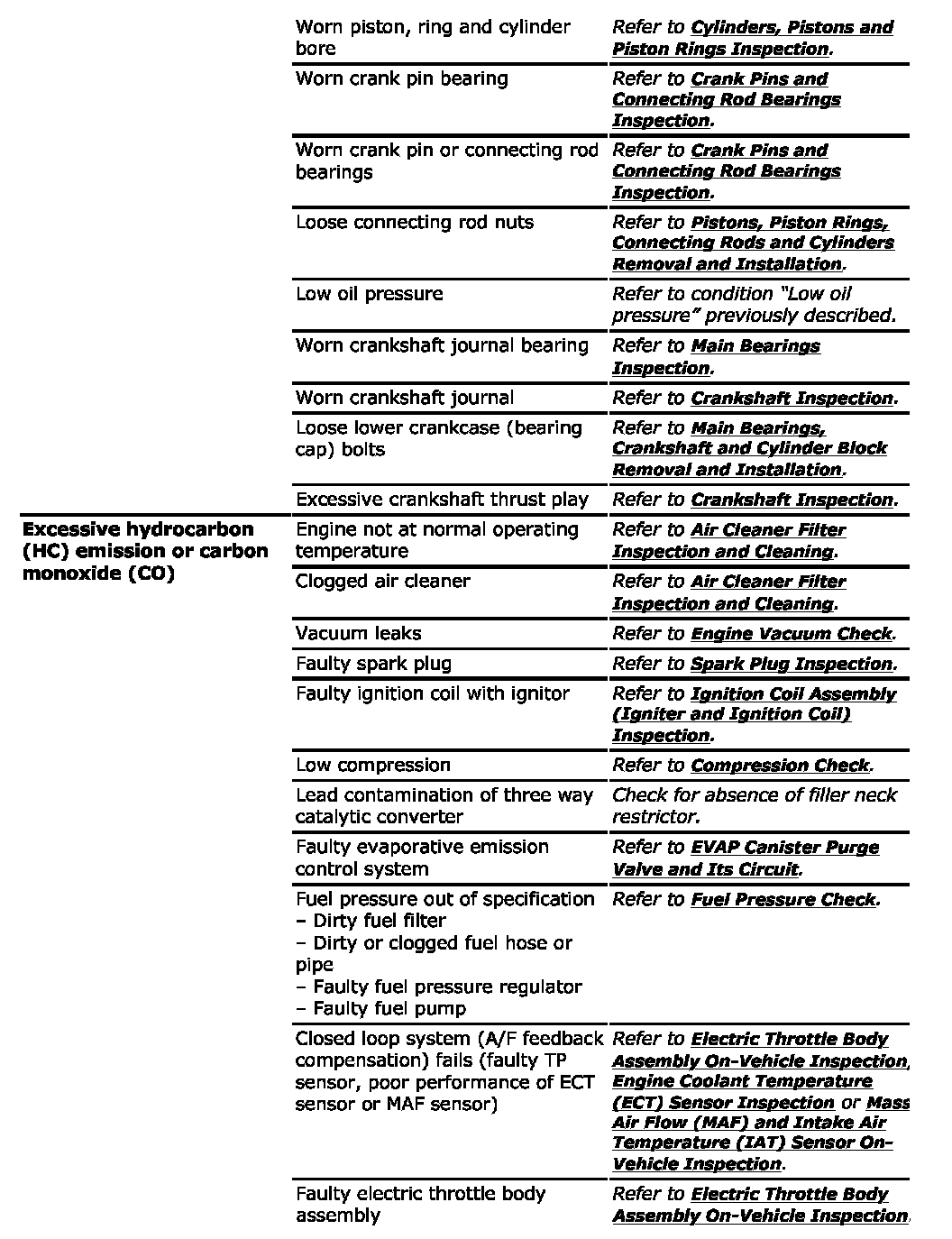

Engine Symptom Diagnosis (Part 1):

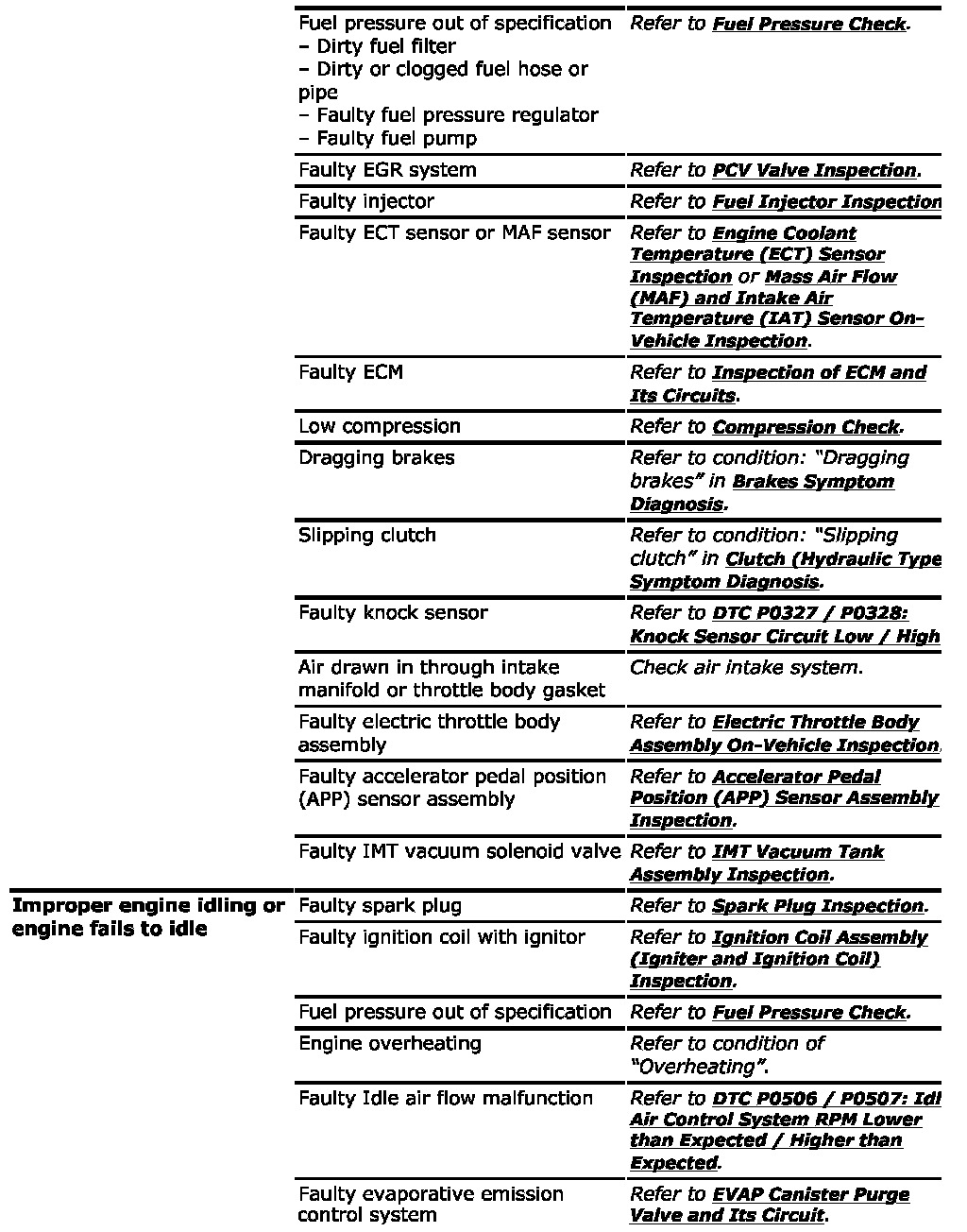

Engine Symptom Diagnosis (Part 2):

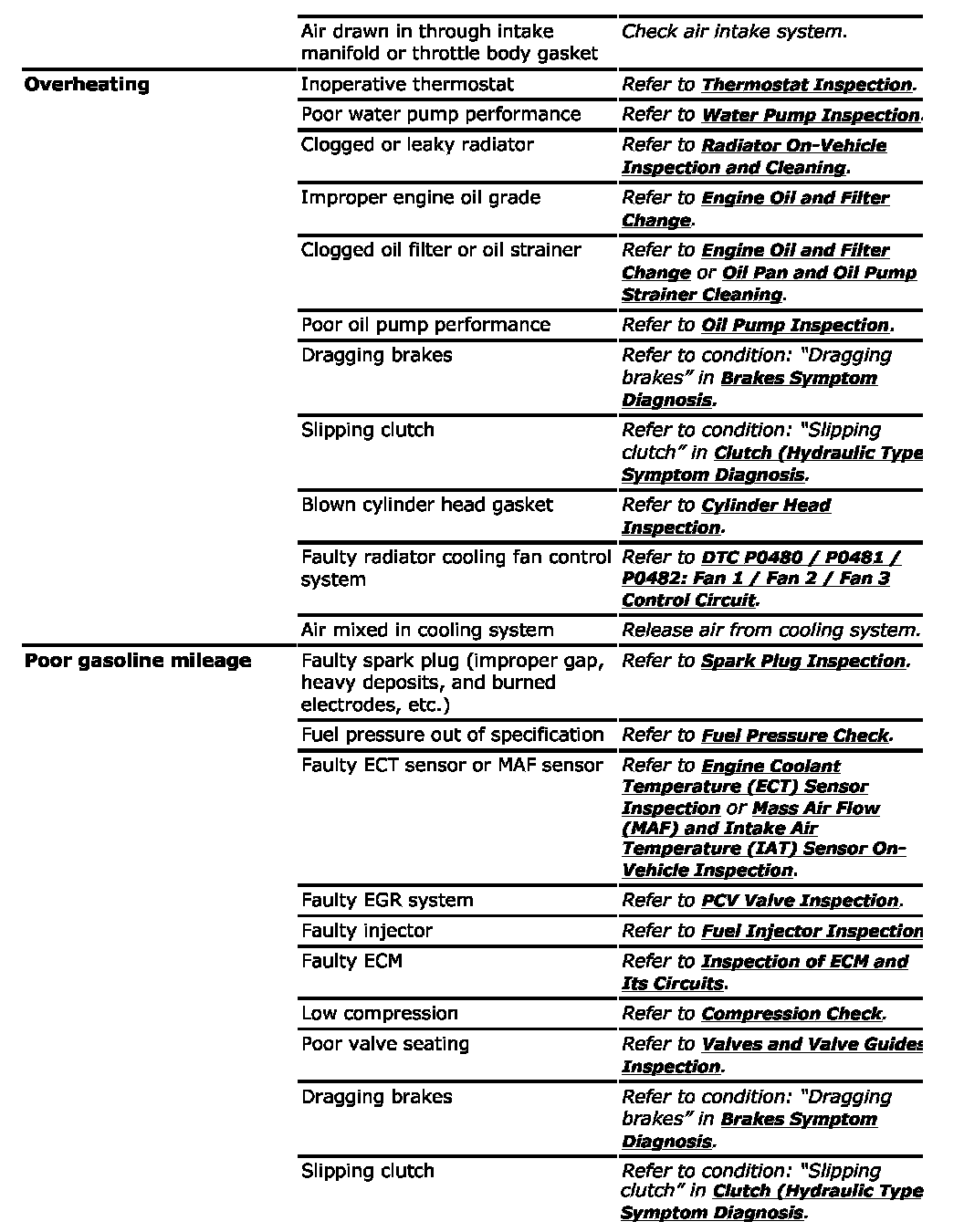

Engine Symptom Diagnosis (Part 3):

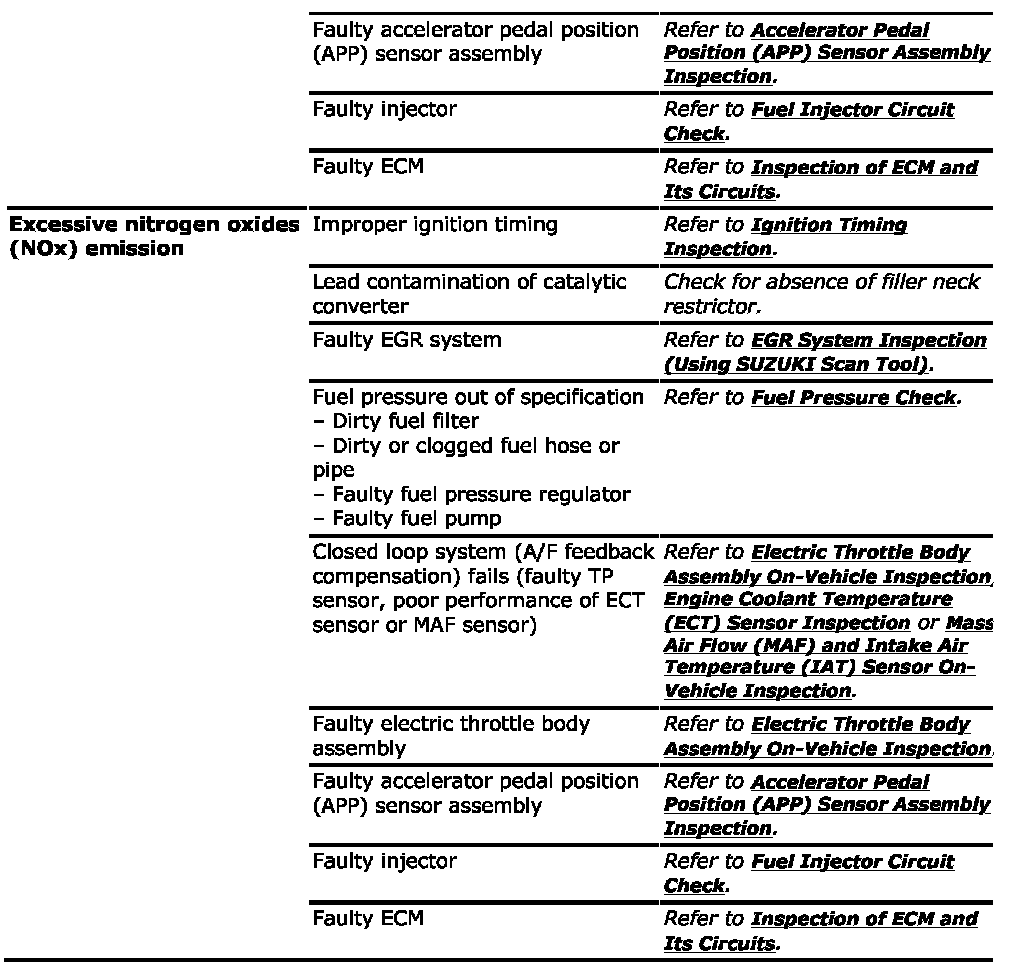

Engine Symptom Diagnosis (Part 4):

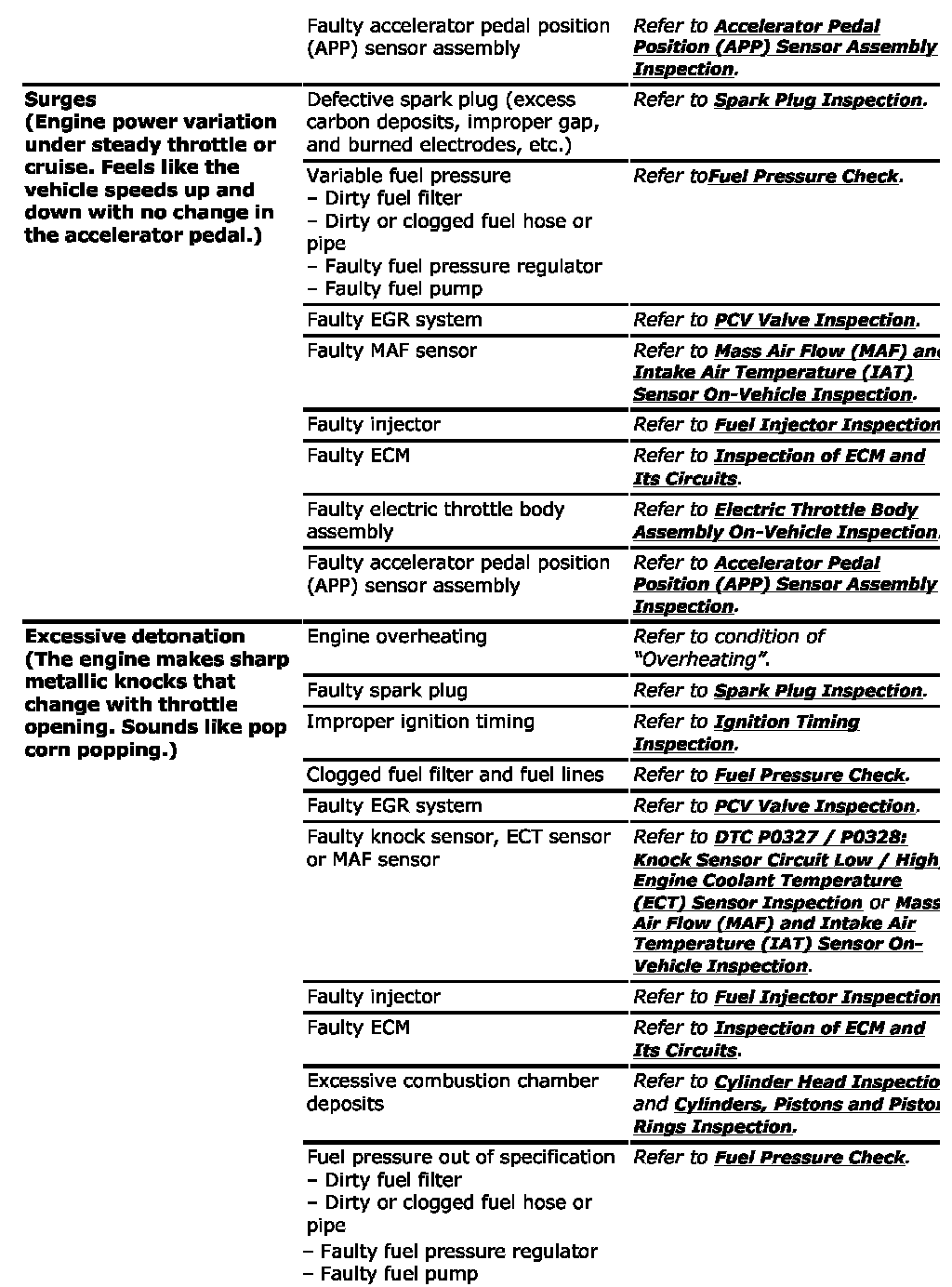

Engine Symptom Diagnosis (Part 5):

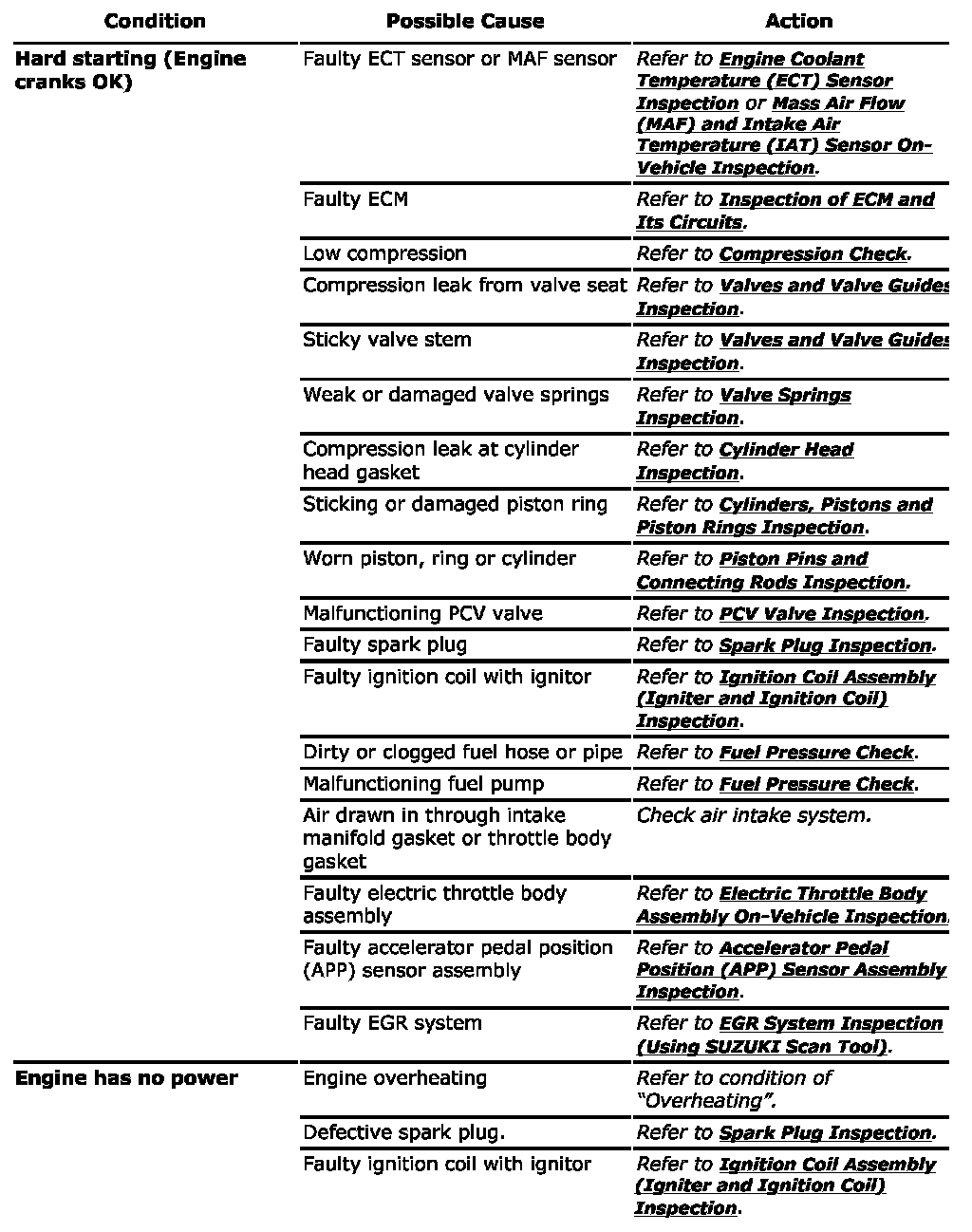

Engine Symptom Diagnosis (Part 6):

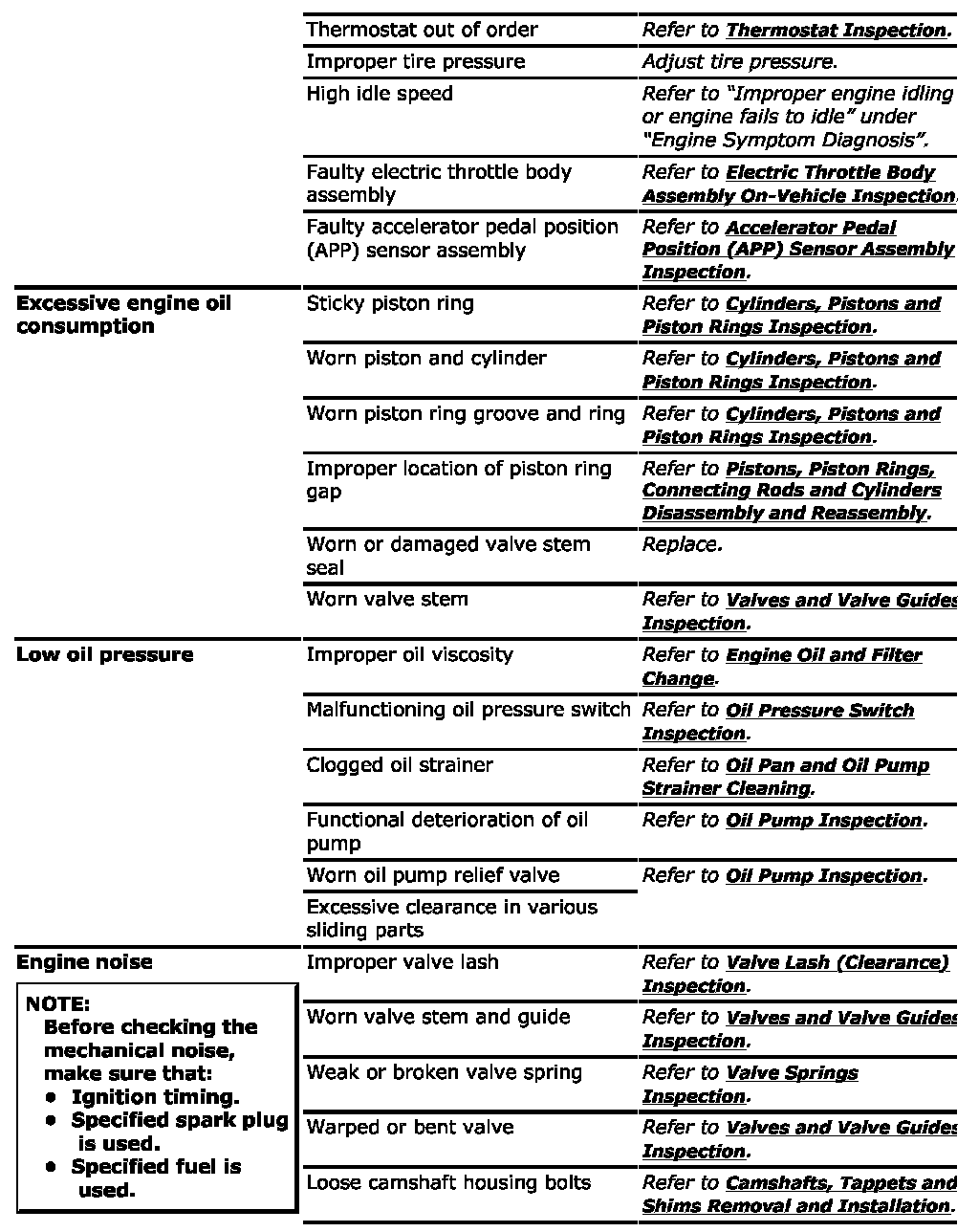

Engine Symptom Diagnosis (Part 7):

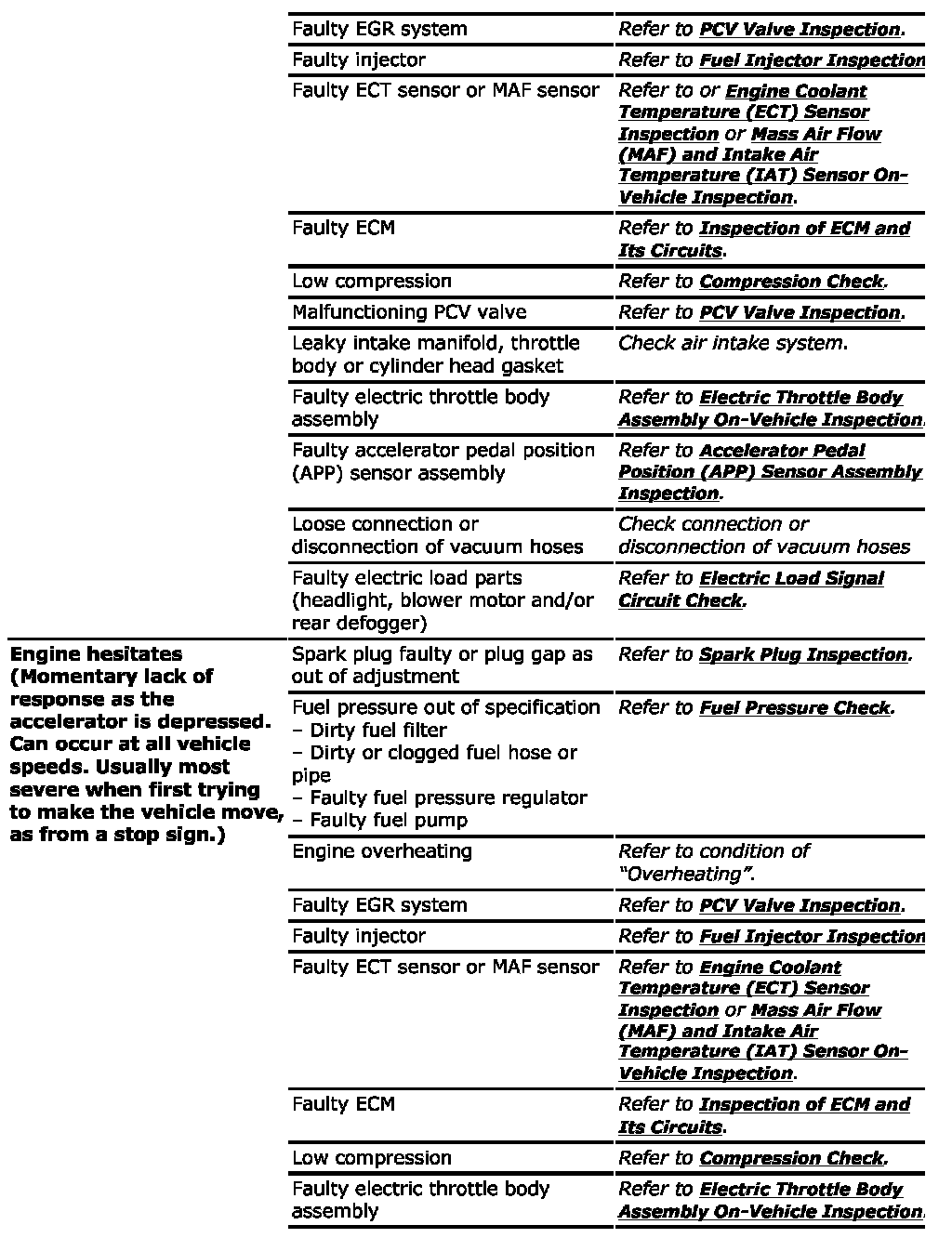

Engine Symptom Diagnosis (Part 8):
