Spark Plug: Service and Repair

Spark Plug Removal and Installation

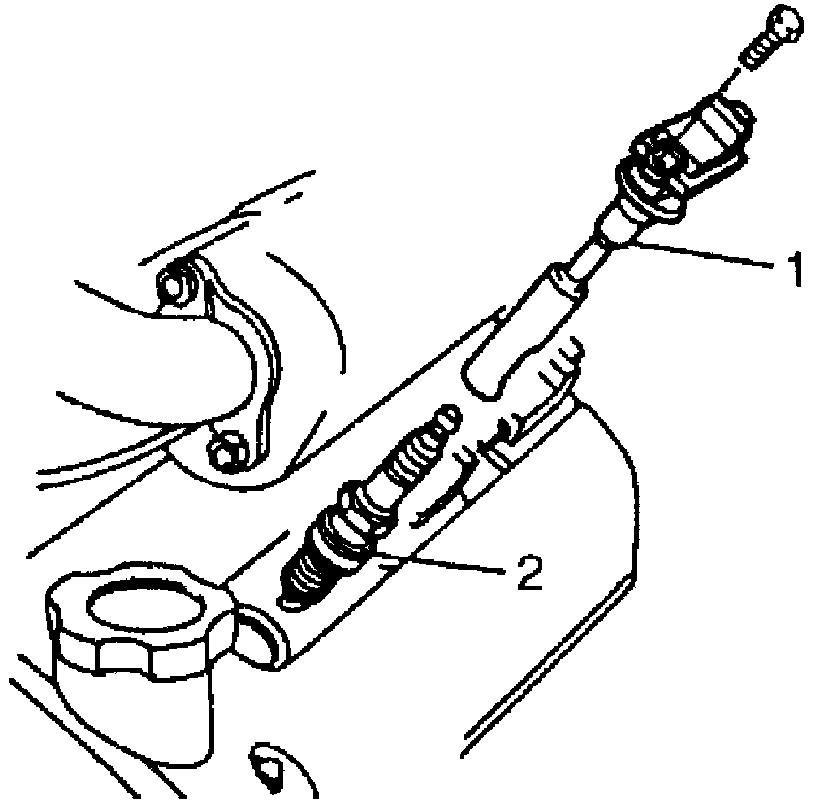

Removal
1. Remove ignition coil assembly (1) referring to Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation.
2. Remove spark plug (2).

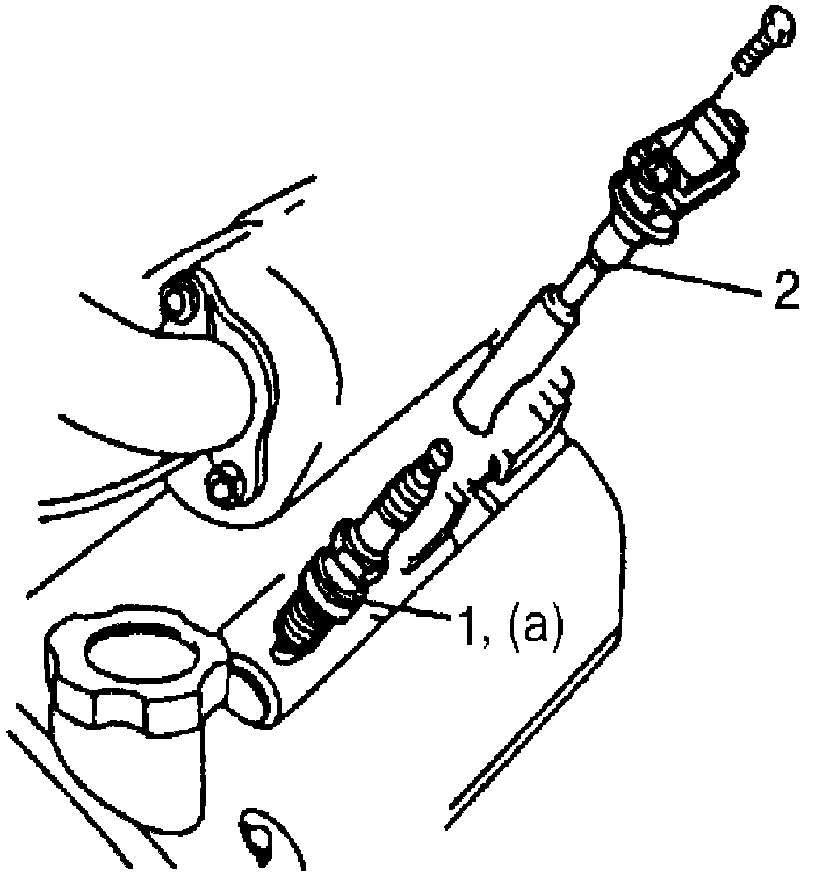

Installation
Reference: Spark Plug Inspection
1. Install spark plug (1) and tighten them to specified torque.

Tightening torque
Spark plug (a): 25 N.m (2.5 kg.m, 18.0 lbf.ft)

2. Install ignition coil assembly (2) referring to Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation.
