Ignition System Check

Ignition System Check

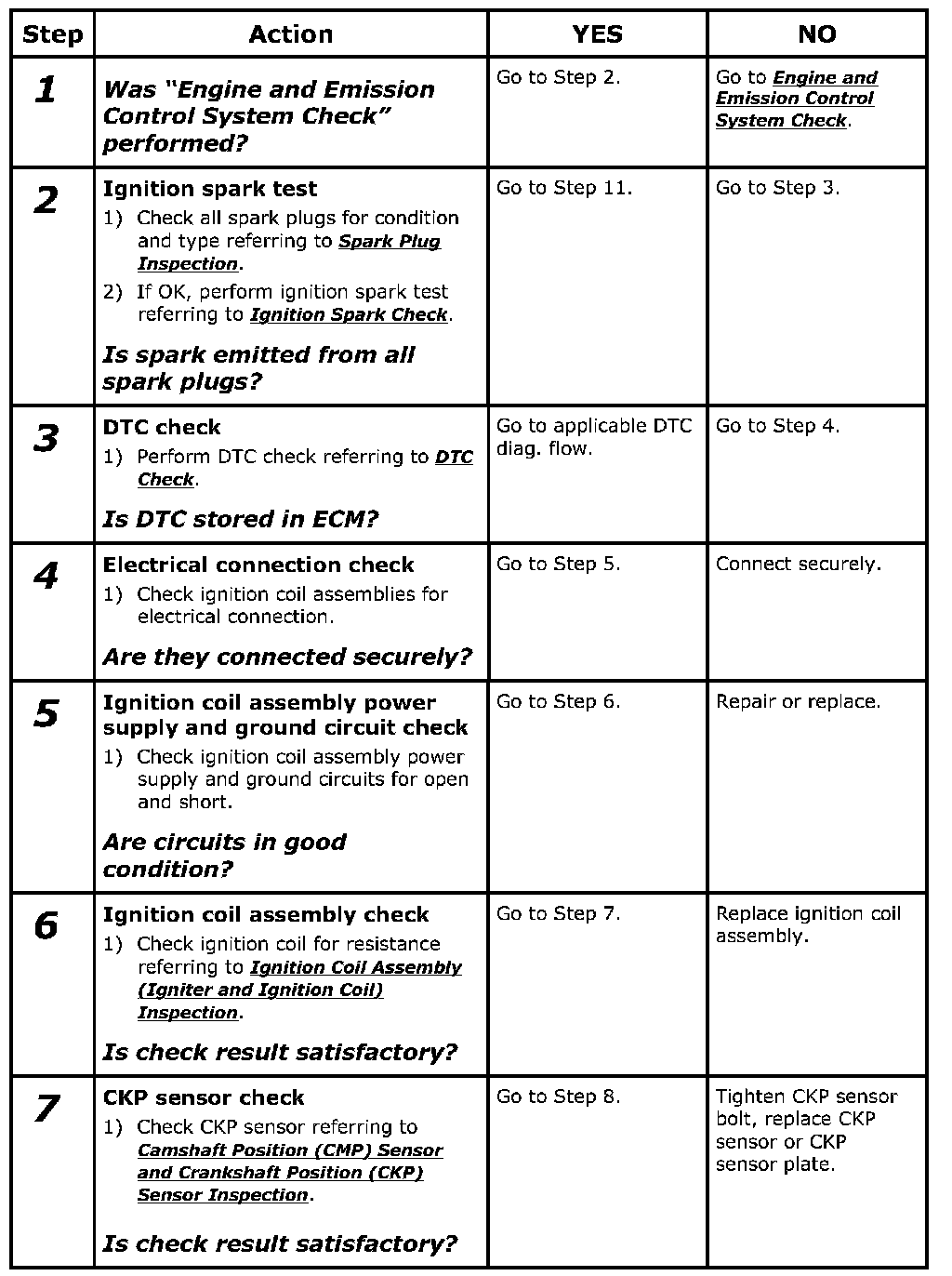

Step 1-7:

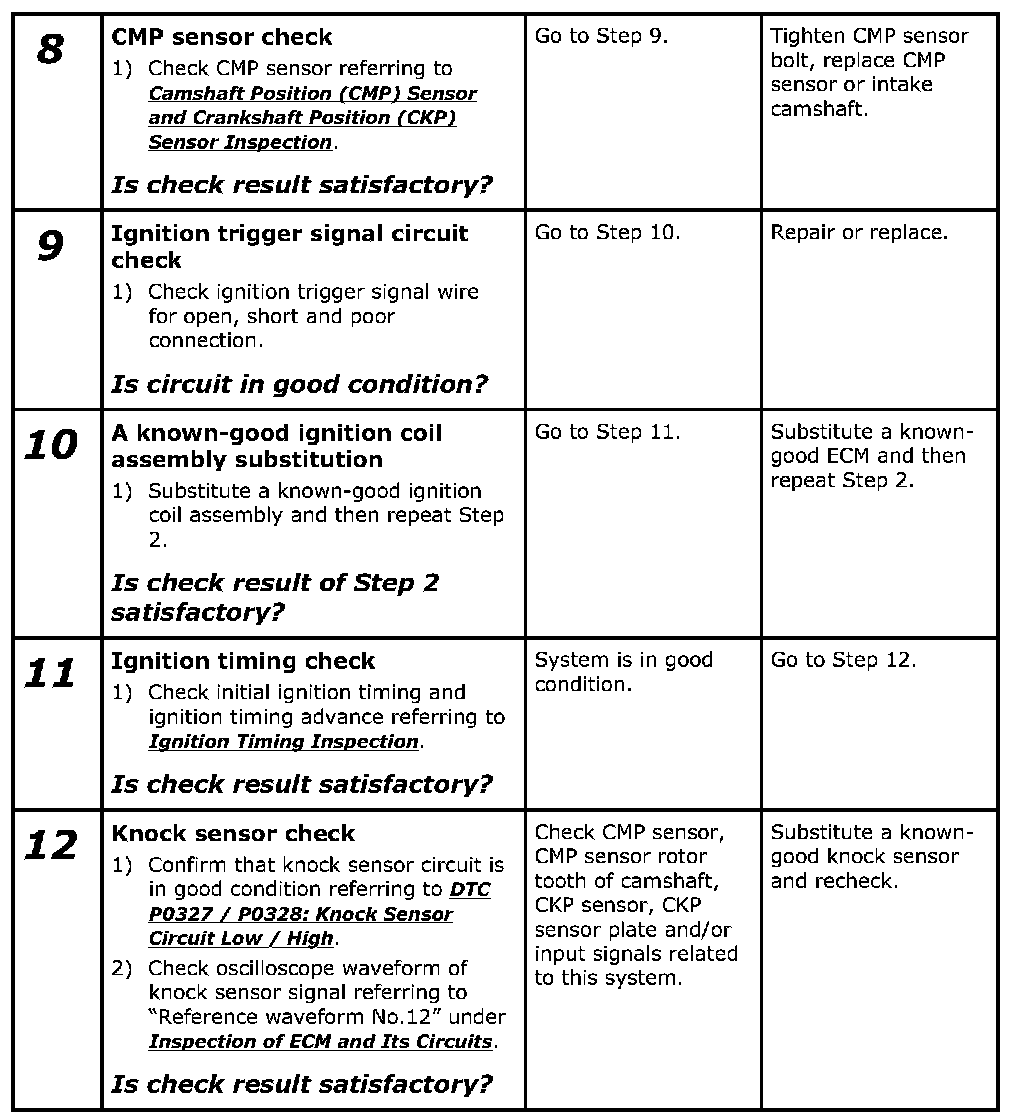

Step 8-12:

Reference
Refer to "Reference waveform No.17 to 20" and "Reference waveform No.24 to 26" under Inspection of ECM and Its Circuits for waveform of ignition trigger signal.
