Ignition Control Module: Service and Repair

Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation

Removal
1. Remove surge tank cover.
2. Disconnect ignition coil coupler.

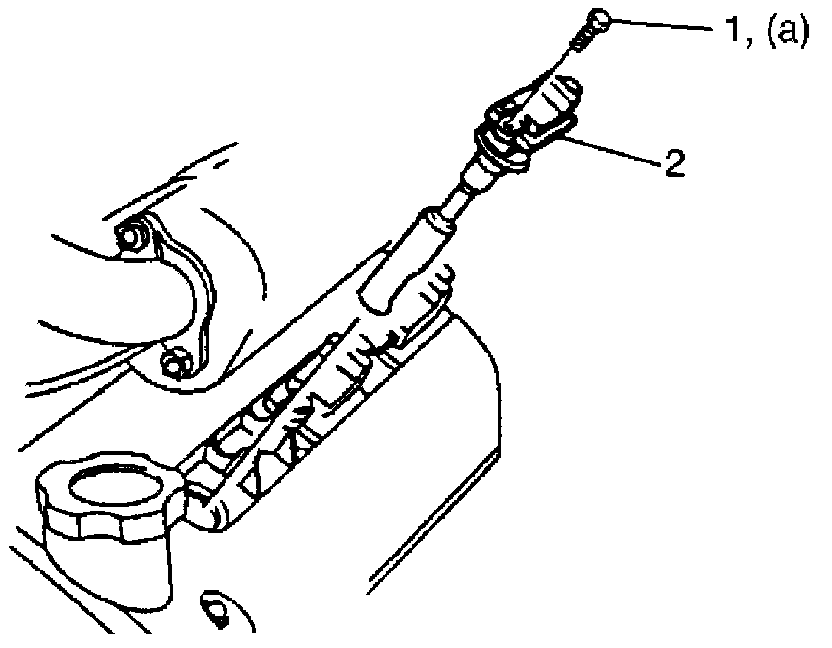

3. Remove ignition coil bolt (1), and then pull out ignition coil assembly (2).

Installation
Reference: Ignition Coil Assembly (Igniter and Ignition Coil) Inspection Install in reverse order of removal.

Tightening torque
Ignition coil bolt (a): 6.5 N.m (0.65 kg.m, 5.0 lbf.ft)
