System Specifications

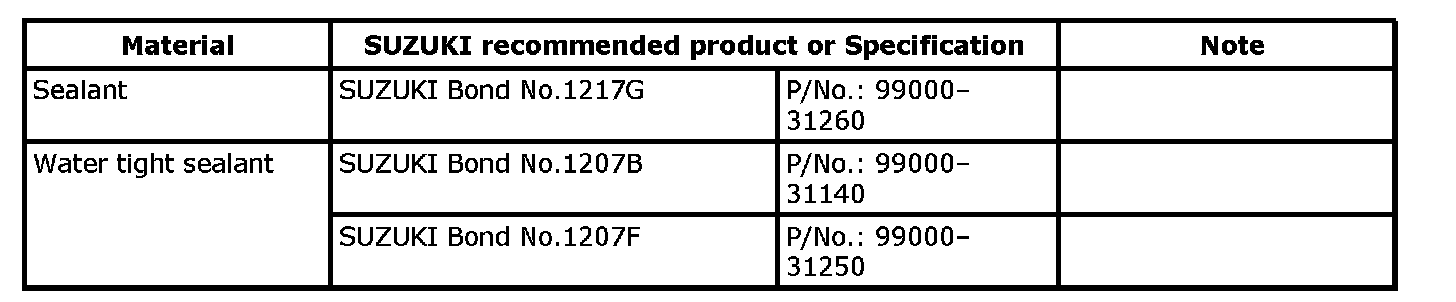

Recommended Service Material





NOTE:
Required service material is also described in the following.
Timing Chain Cover Components
LH (No. 1) Bank 2nd Timing Chain and Chain Tensioner Components
1st Timing Chain and Chain Tensioner Component
RH (No. 2) Bank 2nd Timing Chain and Chain Tensioner Components
Camshaft, Tappets and Shims Components
Valves and Cylinder Heads Components
Pistons, Piston Rings, Connecting Rods and Cylinders Components
Main Bearings, Crankshaft and Cylinder Block Components
