Automatic Gear Shift Table

Automatic Gear Shift Table
Automatic gear shift schedule is shown in the following table. Test-drive the vehicle on a flat road in the D position.

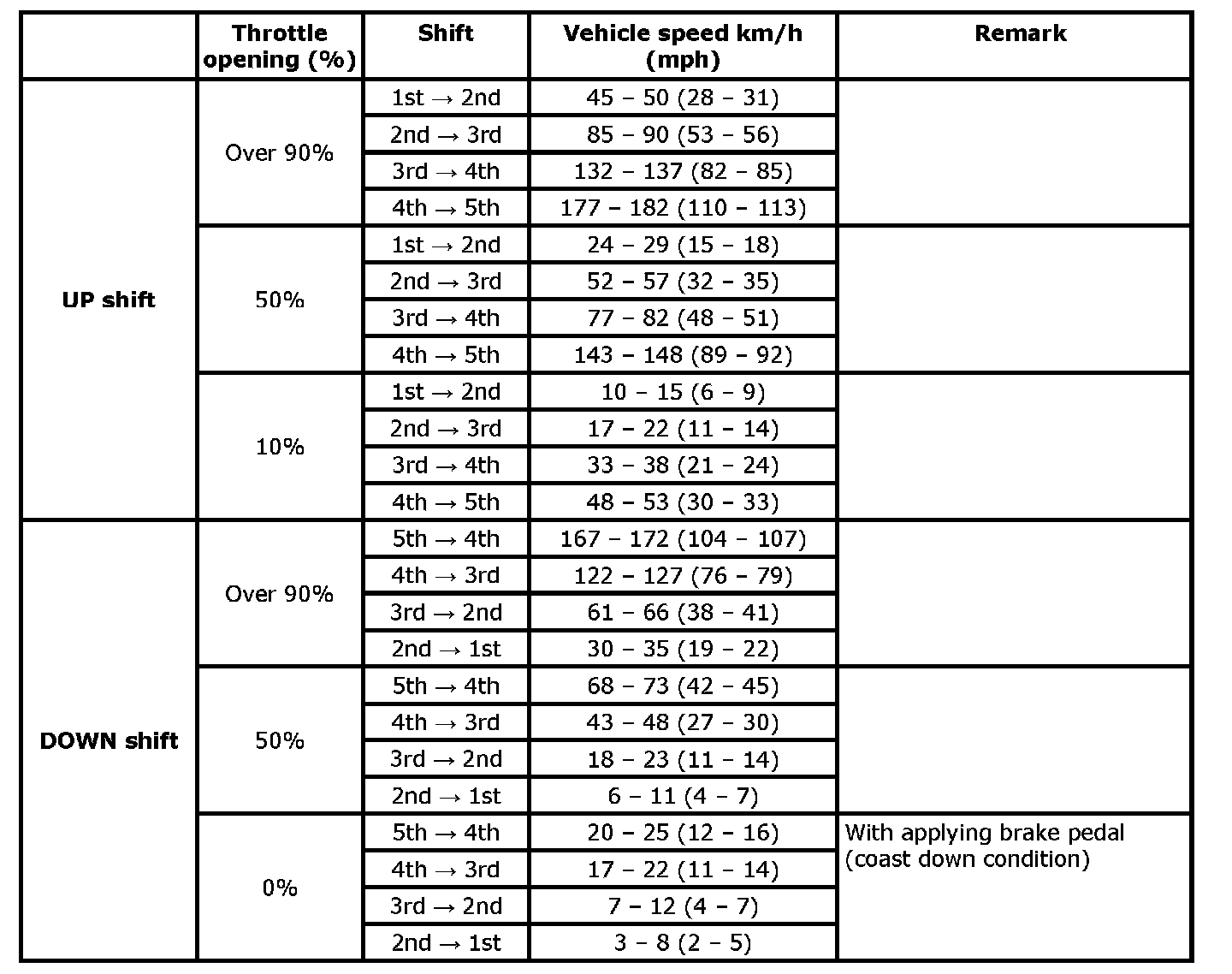

1. Shift Point in D position and transfer shift position in 4H

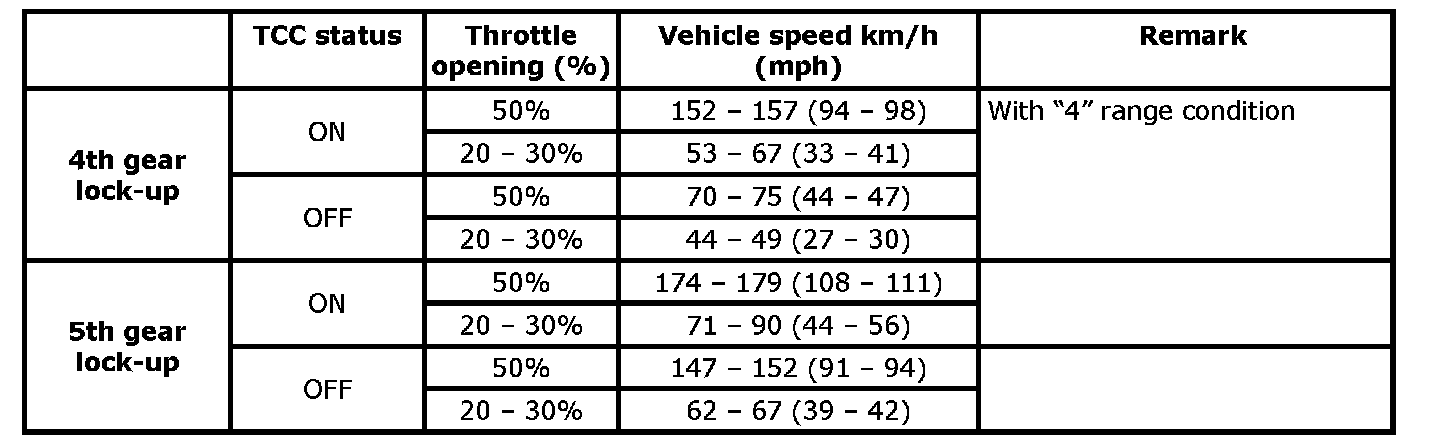

2. TCC lock-up point in D position and/or 4 position mode

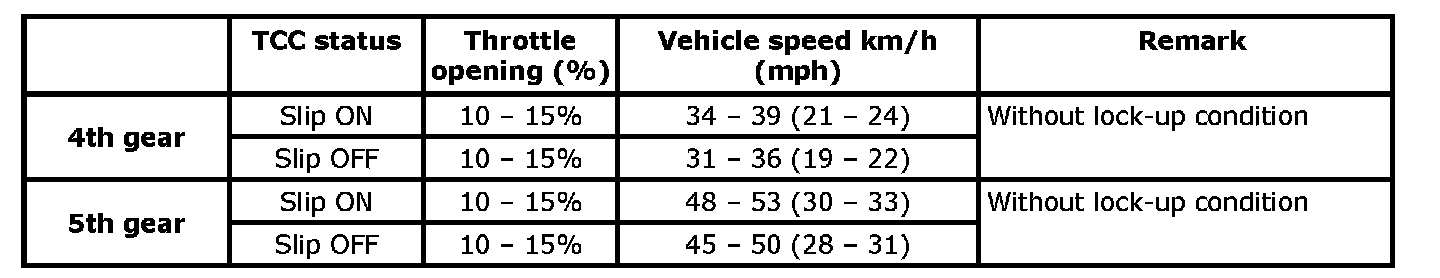

3. TCC slip point in D and/or 4 position





NOTE:
The gear change is done at the shift point different from the above while any of the following control functions is working. Bear this in mind when performing inspection.

^ Slope Shift Control
When TCM makes up-slope judgment, Slope Shift Control (on up-slope) is executed by changing the gear change point to the high-speed side so as to reduce frequent up-shift and down-shift operations. When TCM makes down-shift judgment, Slope Shift Control (on down-slope) is executed by changing the gear change point to the low-speed side so as to use engine-brake function effectively while driving on a down-slope.
^ Cruise Shift Control
Cruise Shift Control is executed by selecting appropriate gear according to requirement for retaining a constant vehicle speed or acceleration so as to reduce frequent up-shift and downshift operations while cruising.
