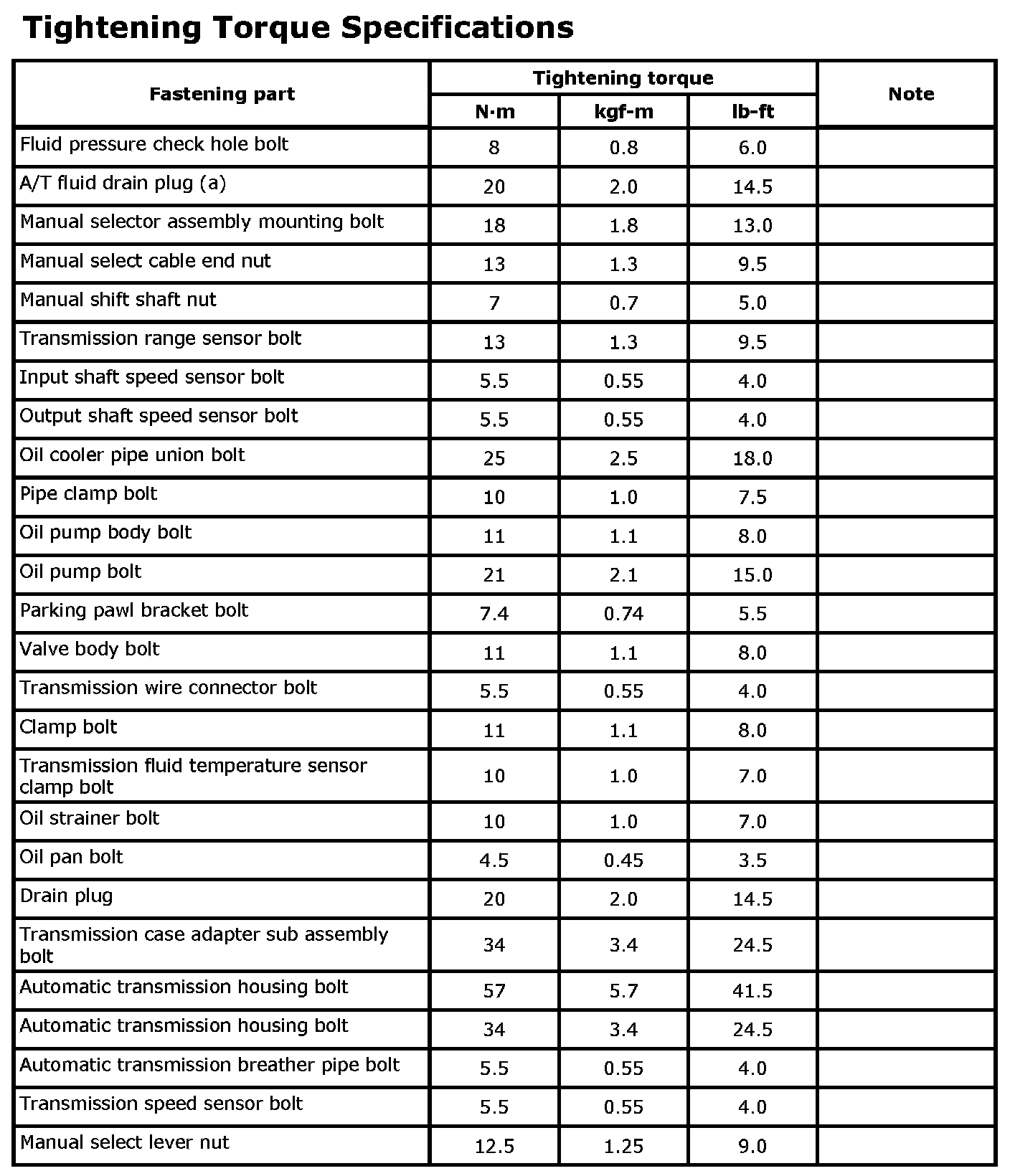

Tightening Torque Specifications

Tightening Torque Specifications

NOTE:
The specified tightening torque is also described in the following.
Oil Cooler Hoses Replacement
Manual Selector Assembly Components
Select Cable Component
Automatic Transmission Unit Components
Automatic Transmission Unit Components
Oil Pump Assembly Components
Valve Body Assembly Components

Flexplate 69 Nm (6.9 kgf-m, 50.0 ft. lb.)
Oil pan bolt 4.5 Nm (0.45 kgf-m, 3.5 ft. lb.)
