Piston Ring, Engine
Ring groove clearance
Top
0.03 - 0.07 mm (0.0012 - 0.0027 in.)
2nd
0.02 - 0.06 mm (0.0008 - 0.0023 in.)

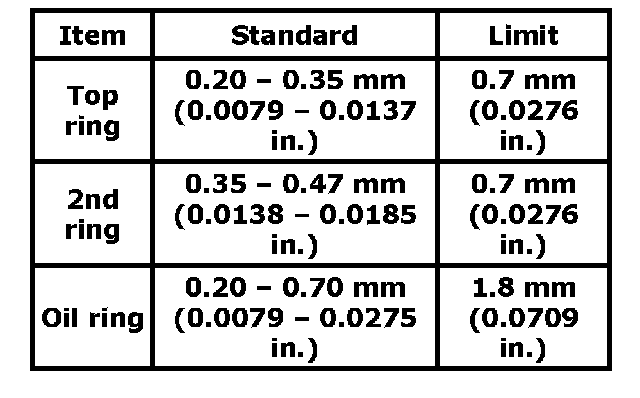

Piston ring end gap
