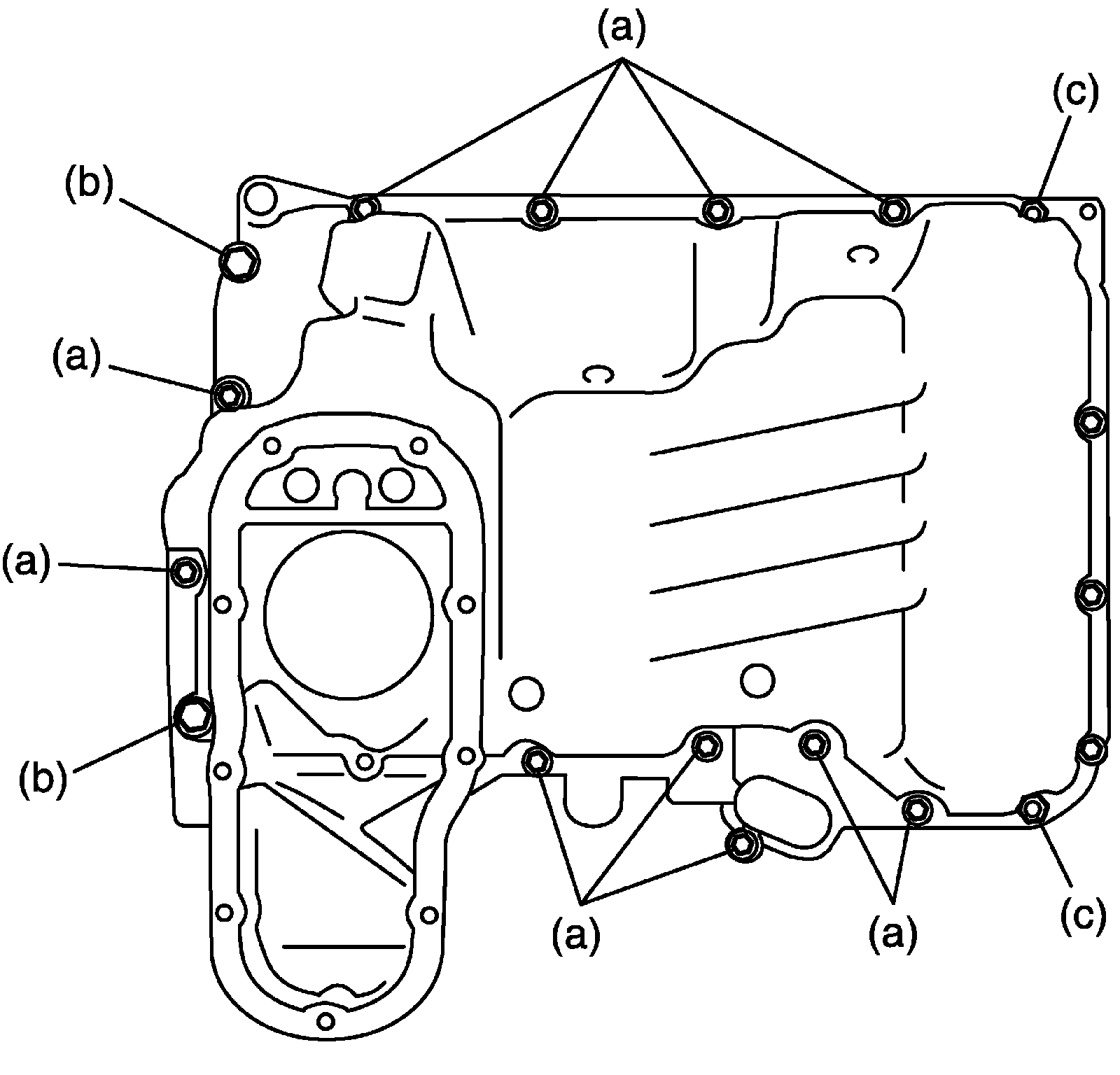

Oil Pan, Engine
Upper
oil pan bolt (M6) (a)
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Upper
oil pan bolt (MB) (b)
25 Nm (2.5 kg-m 19.5 ft. lbs.)
Upper
oil pan nut (c)
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Tightening torque
Lower
oil pan bolt (a)
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Lower
oil pan nut (b)
11 Nm (1.1 kg-m, 8.0 ft. lbs.)
