Rear Suspension

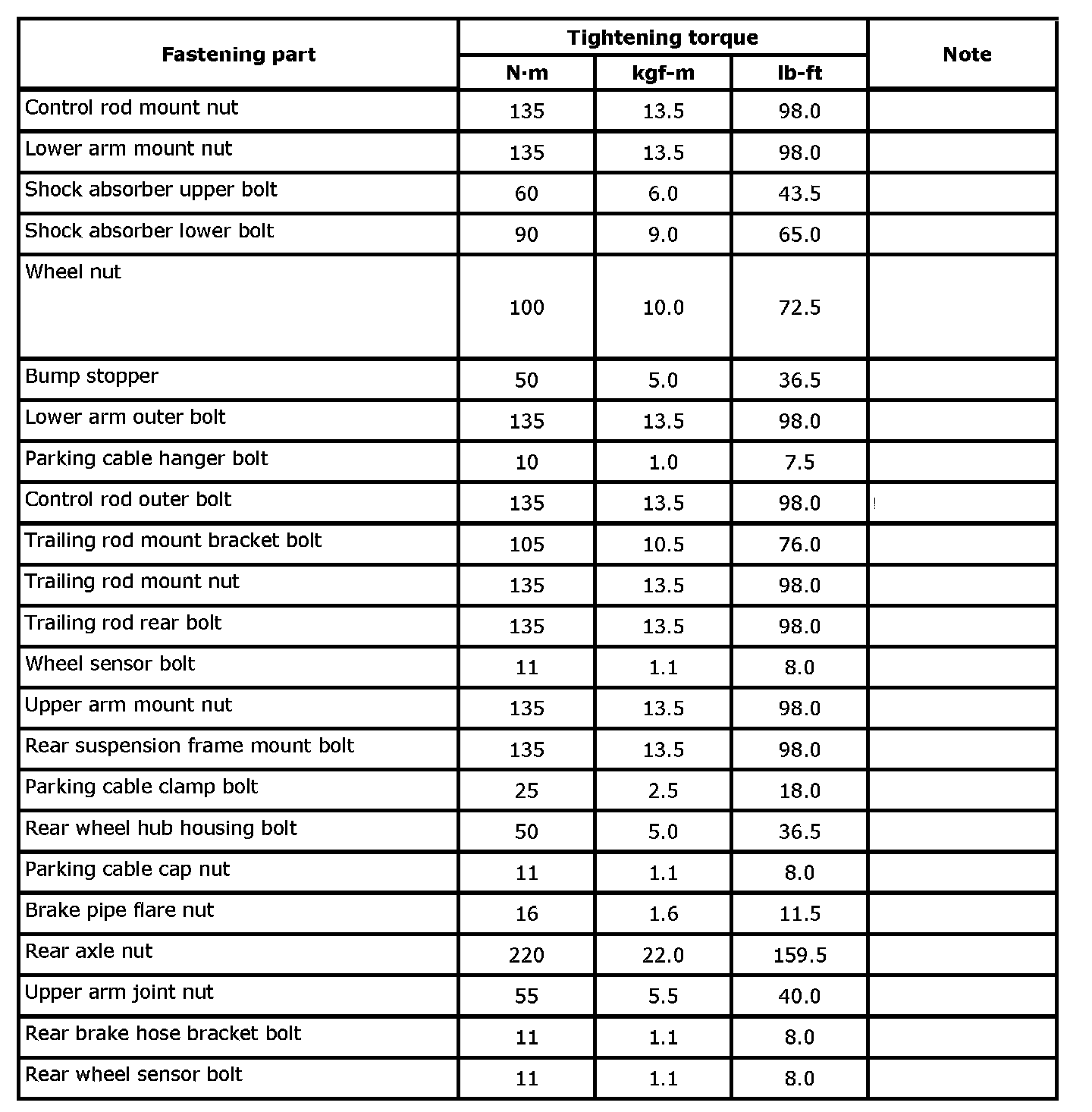

Tightening Torque Specifications NOTE: The specified tightening torque is also described in the following.
Rear
Suspension Construction
Rear Shock Absorber and Rear Coil Spring Components
Rod and Arm Components
Rear
Suspension Frame Components
Rear
Wheel Hub Assembly and Rear
Suspension Knuckle Components
