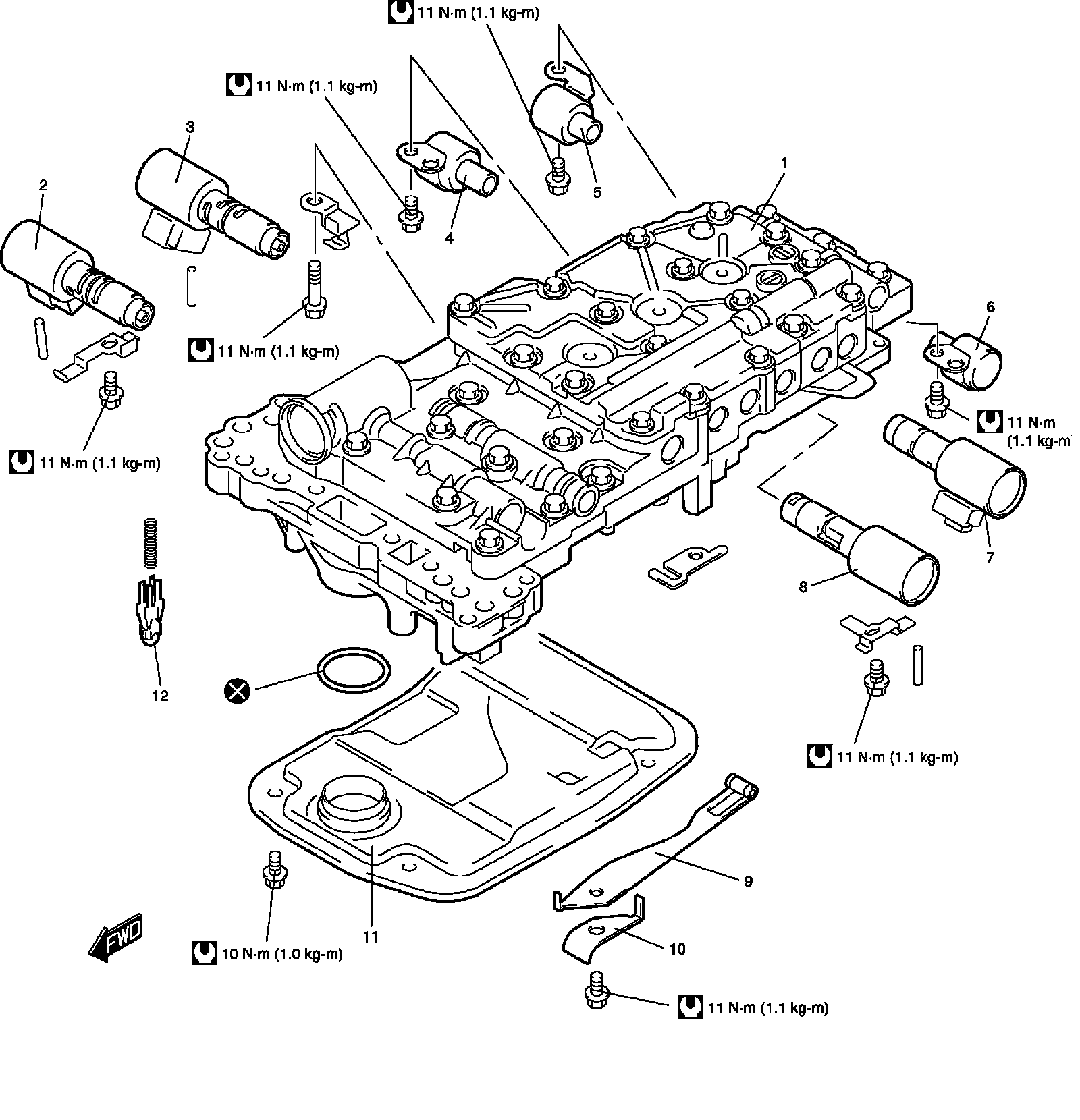

Valve Body Assembly Components

Valve Body Assembly Components








CAUTION:
When replacing pressure control solenoid valve-A, -B, -C and TCC solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
