A/T Fluid Change

A/T Fluid Change
1) Lift up vehicle.

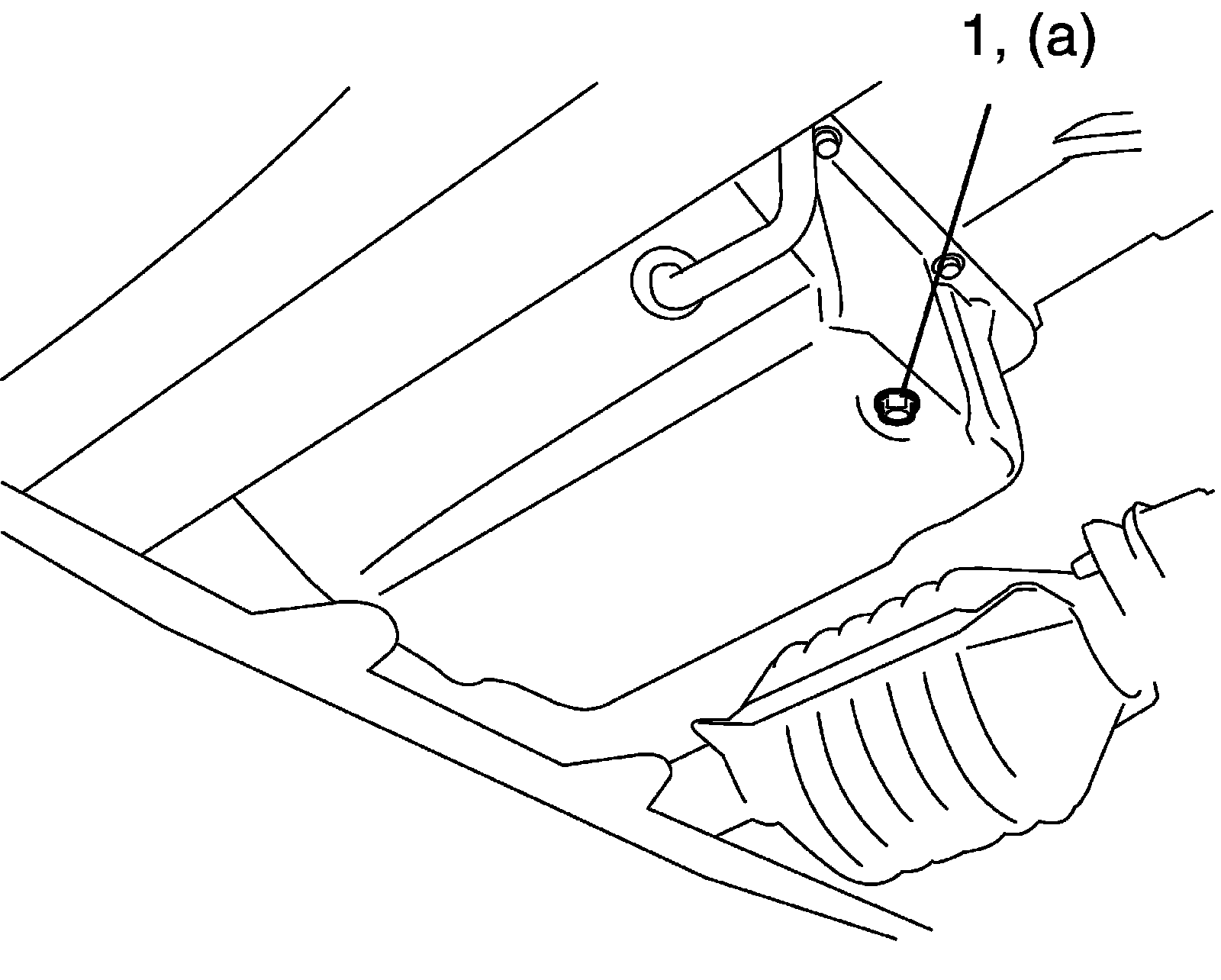

2) When engine is cool, remove drain plug (1) from oil pan and drain A/T fluid.
3) Install drain plug with new gasket.
Tightening torque
A/T fluid drain plug (a): 20 Nm (2.0 kg-m, 14.5 ft. lb.)





4) Lower vehicle and fill proper amount of specified fluid.

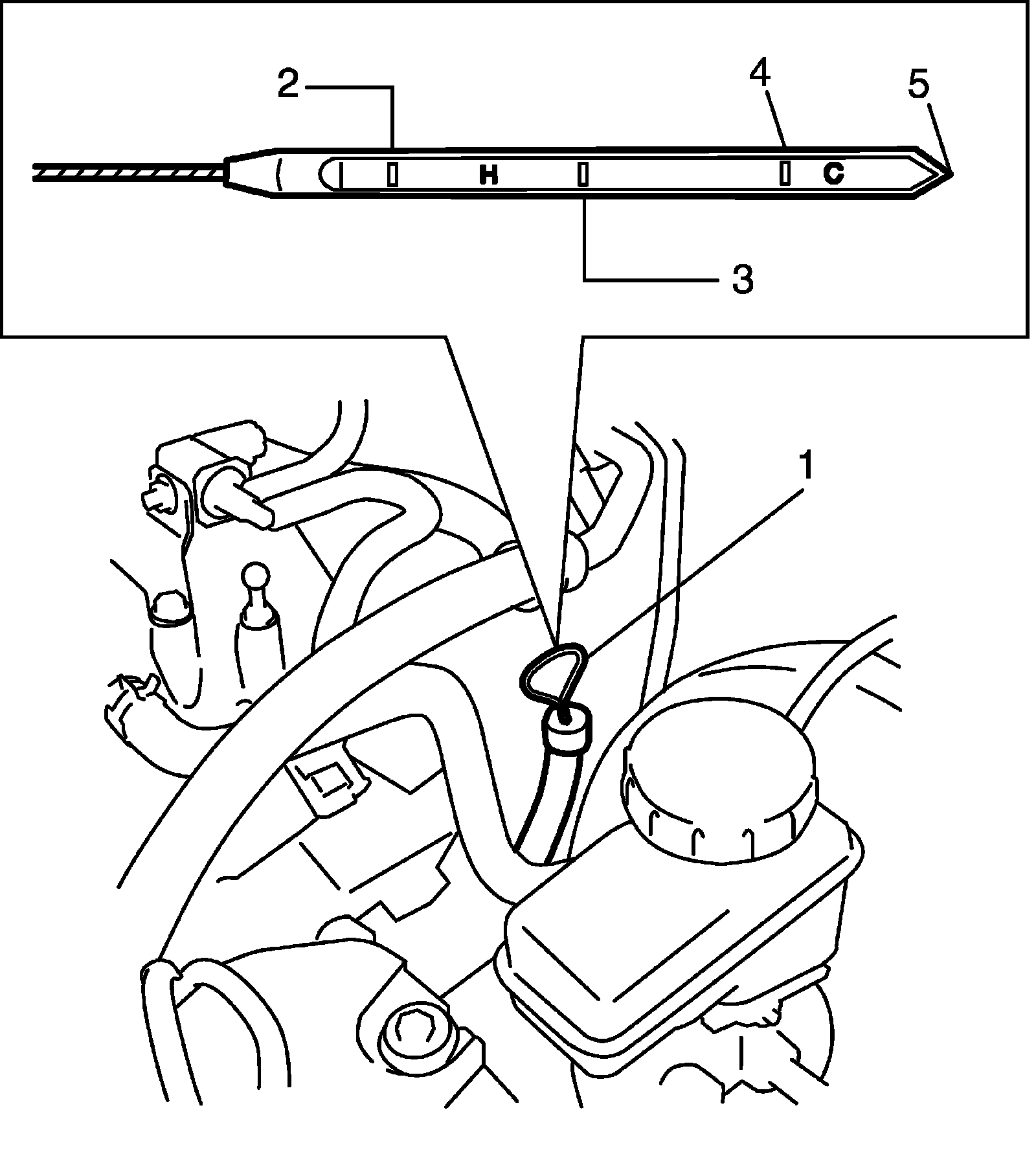

5) Check fluid level.
A/T fluid specification
SUZUKI ATF 3317 or Mobil ATF 3309

A/T fluid capacity reference value
When draining from drain plug hole: Approx. 3.0 liters (6.34/5.28 US/Imp. pt.)
When overhauling: Approx. 9.9 liters (20.92/17.42 US/Imp. pt.)
