Transaxle Rear Cover Inspection

Transaxle Rear Cover Inspection

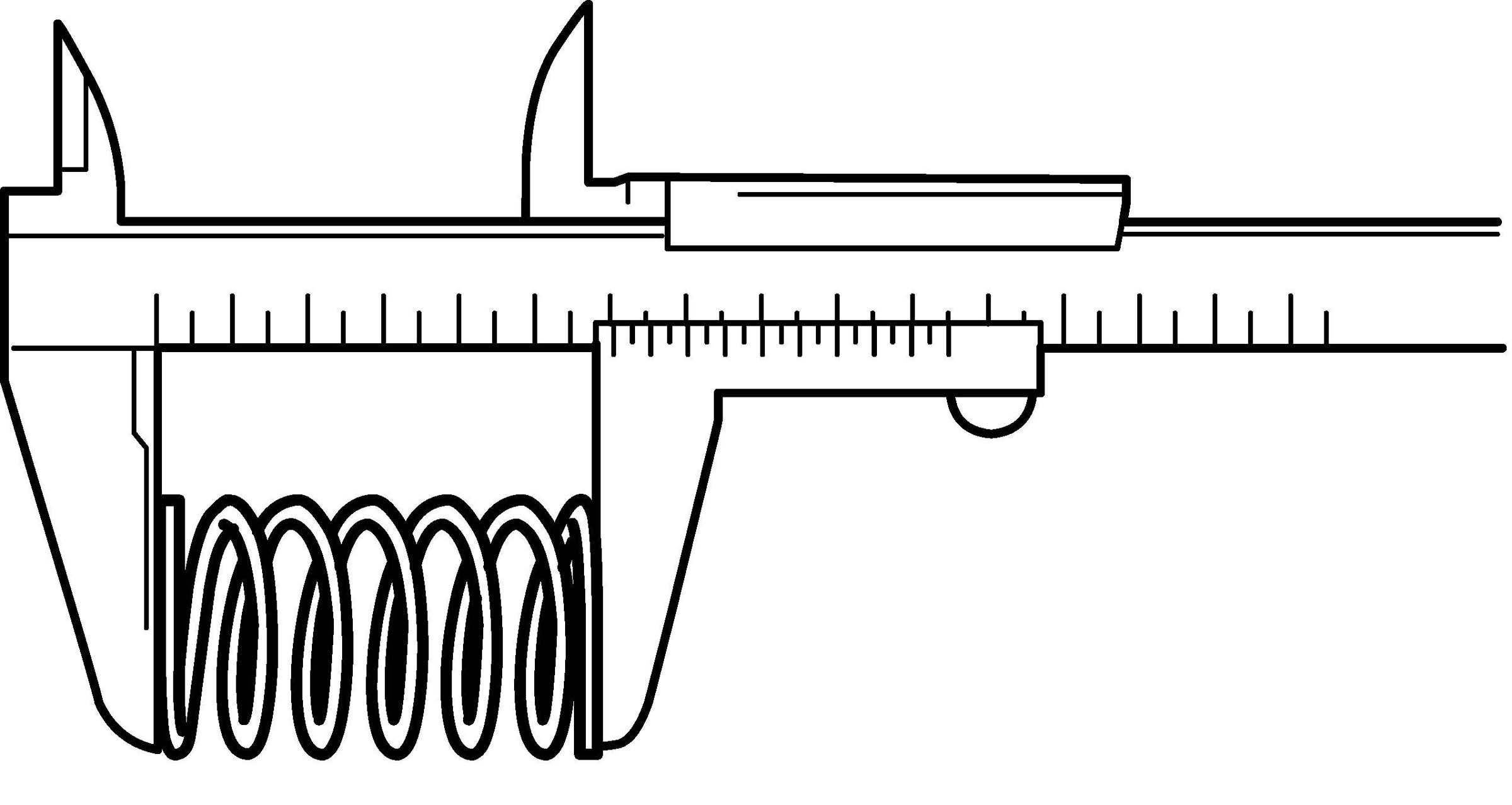

Measure free length forward clutch accumulator spring. If necessary, replace with a new one.
Forward clutch accumulator spring free length
Standard: 66.64 mm (2.624 in.)
