Valve Body Assembly Disassembly and Reassembly
Valve Body Assembly Disassembly and ReassemblyDisassembly
1. Pull out manual valve.

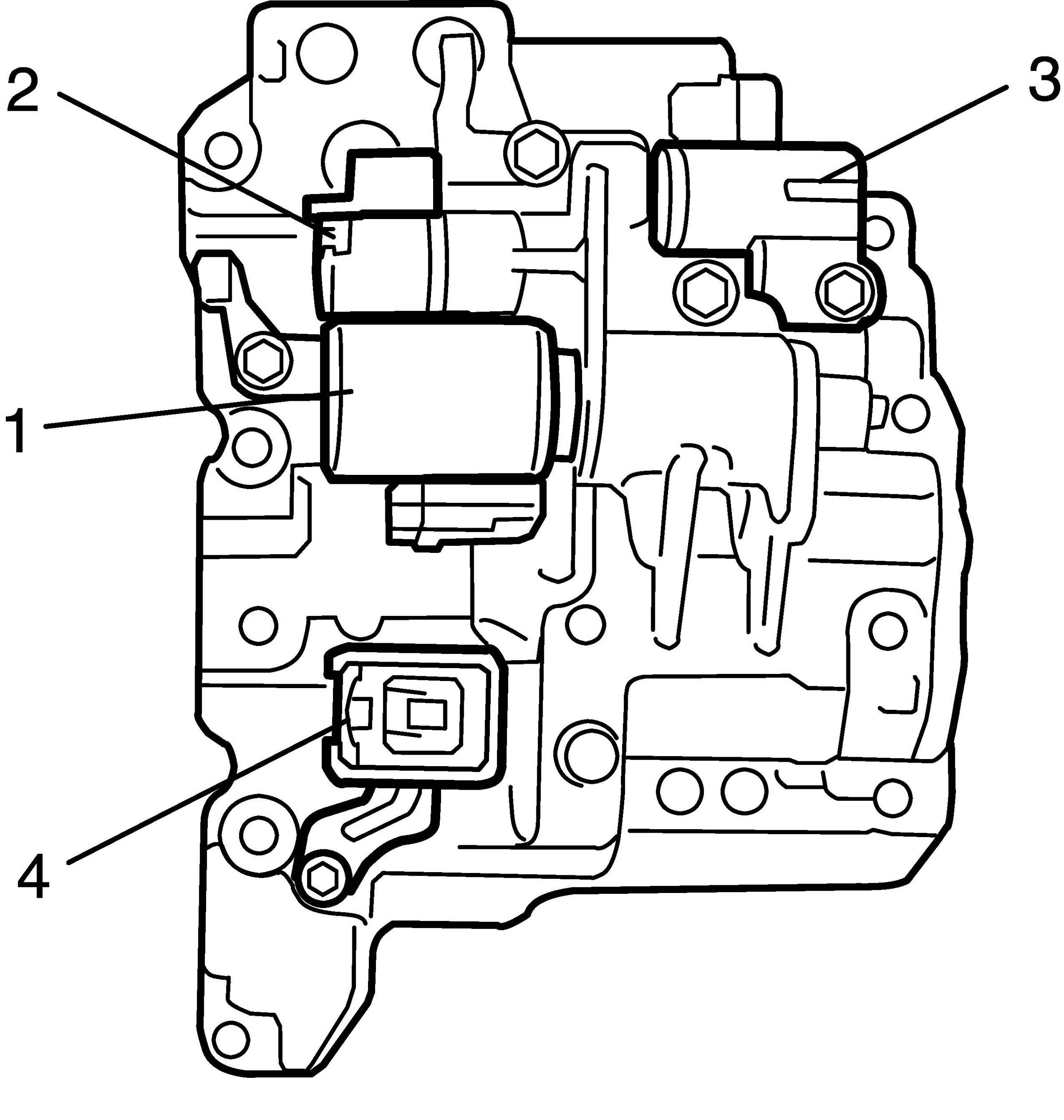

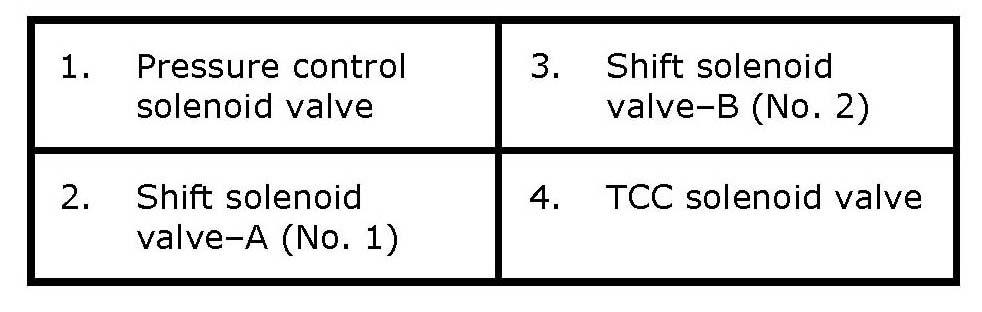

2. Remove solenoid valves with O-ring by removing bolts.
NOTE: Never reuse removed O-ring.
Reassembly
1. Apply A/T fluid to new O-rings and install O-rings to each solenoid valves.
2. Install solenoid valves to valve body and tighten bolts to specified torque.
Tightening torque

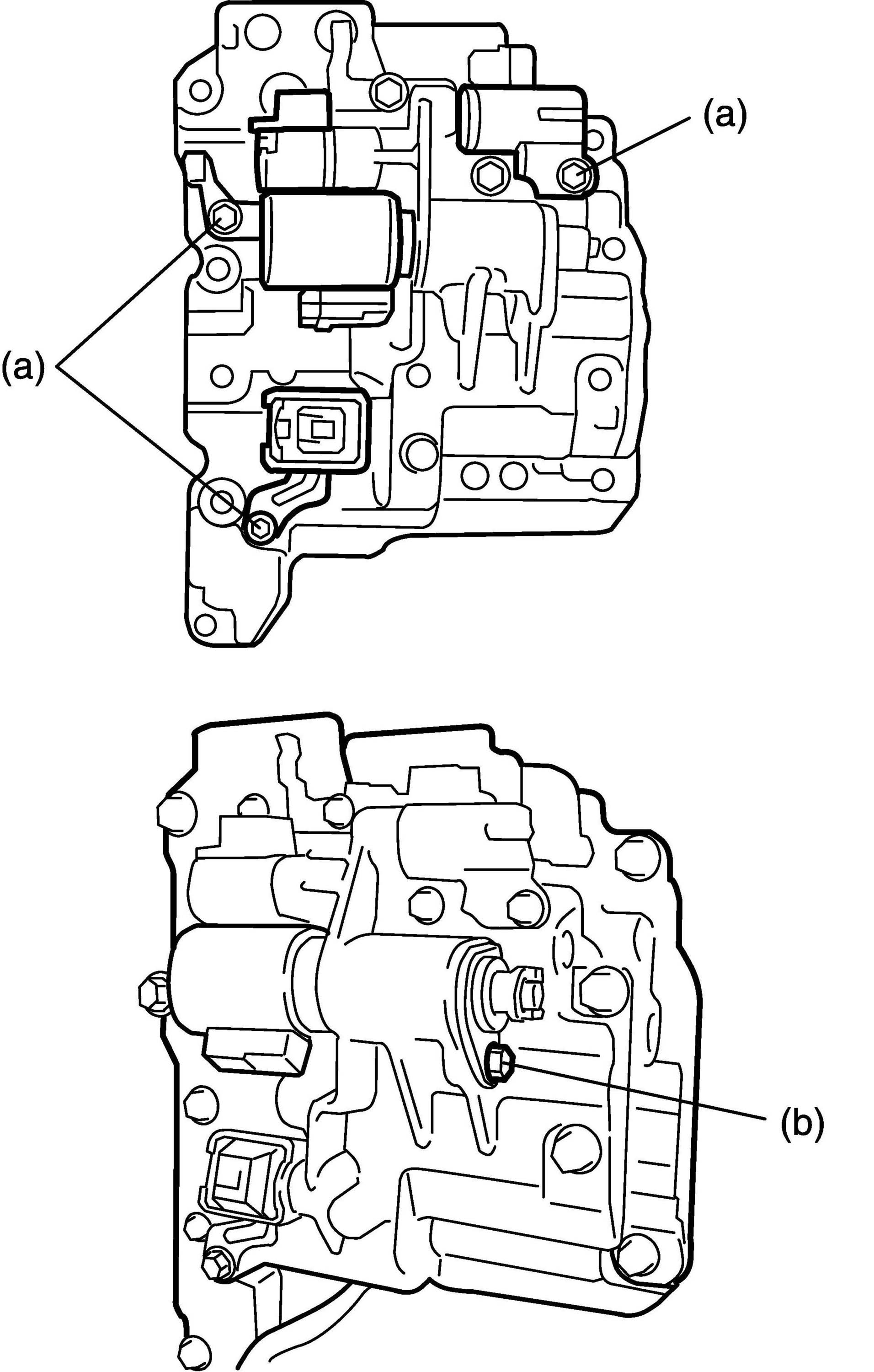

Shift solenoid bolts a: 7.0 Nm (0.7 kgf-m, 5.0 ft. lbs.)
Pressure control solenoid bolt b: 7.0 Nm (0.7 kgf-m, 5.0 ft. lbs.)
3. Install manual shift valve to valve body.
