Switch: Service and Repair

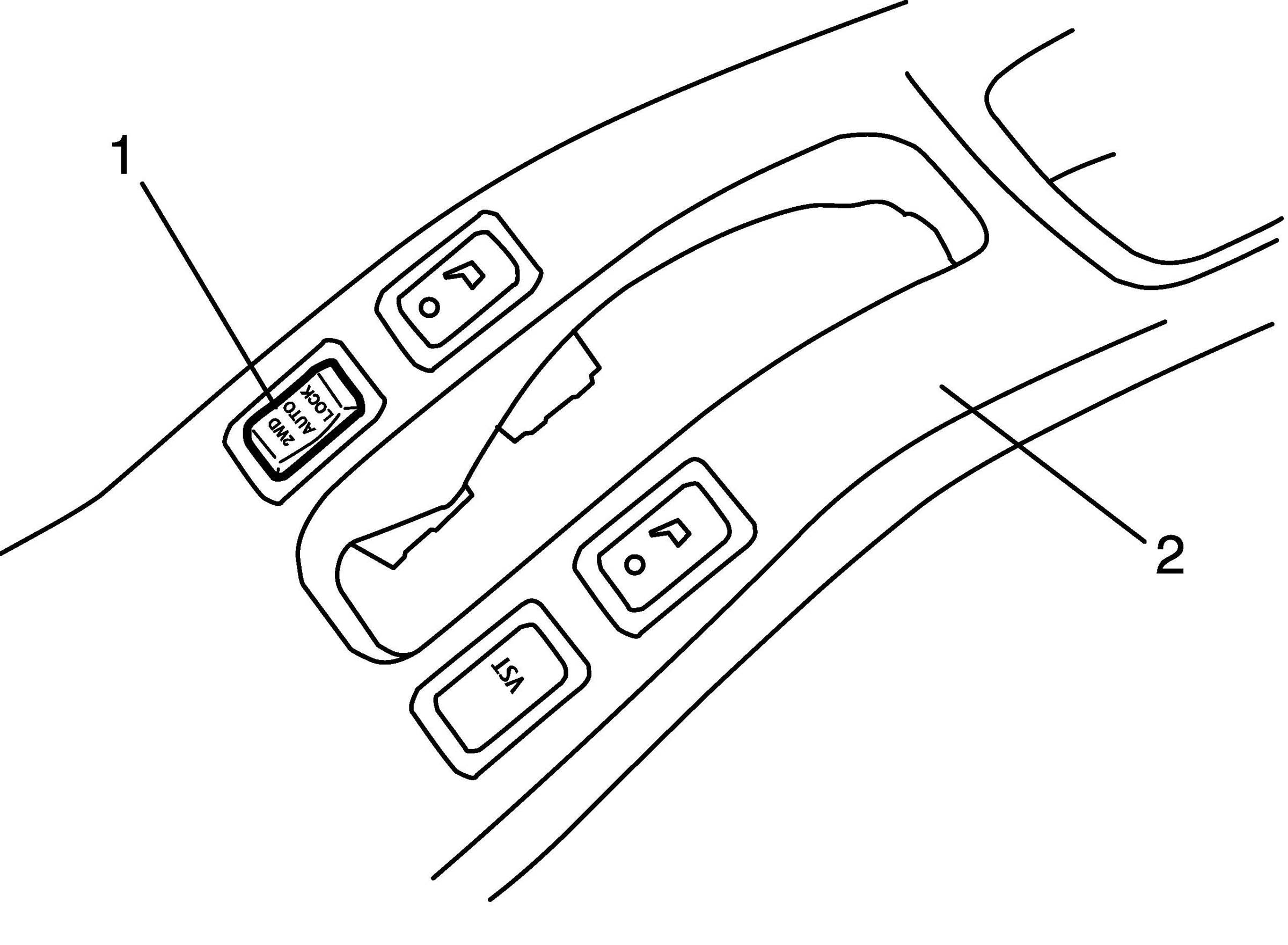

2WD/4WD Switch Removal and Installation

Removal
1. Disconnect negative cable at battery.
2. Remove console box (2).
3. Remove 2WD/4WD switch (1) from console box.

Installation
Reverse removal procedure for installation.
