Connector Views

Cruise Control Connector End Views

Brake Pedal Position Sensor:

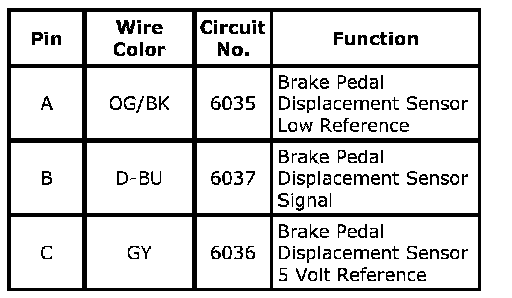

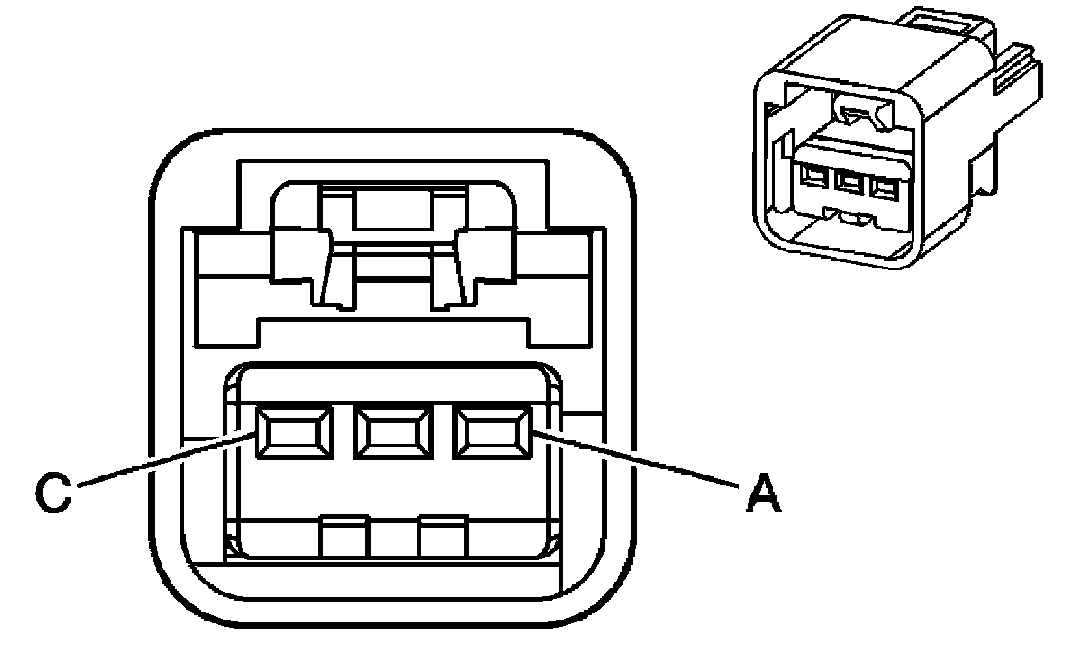

Brake Pedal Position Sensor

Brake Pedal Position Sensor:




Connector Part Information
OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information
Terminal/Tray: 12191812/19 Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position Sensor:




Brake Pedal Position Sensor

Steering Wheel Control Switch - Left:

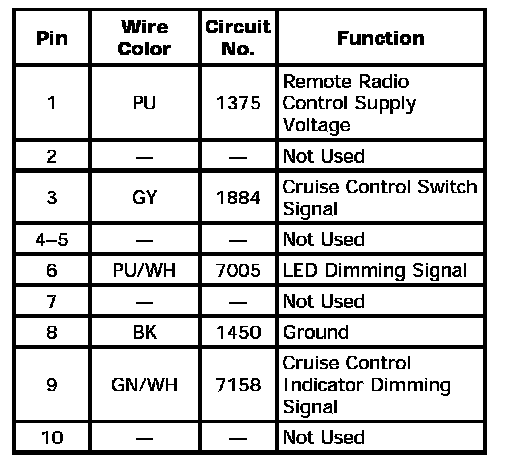

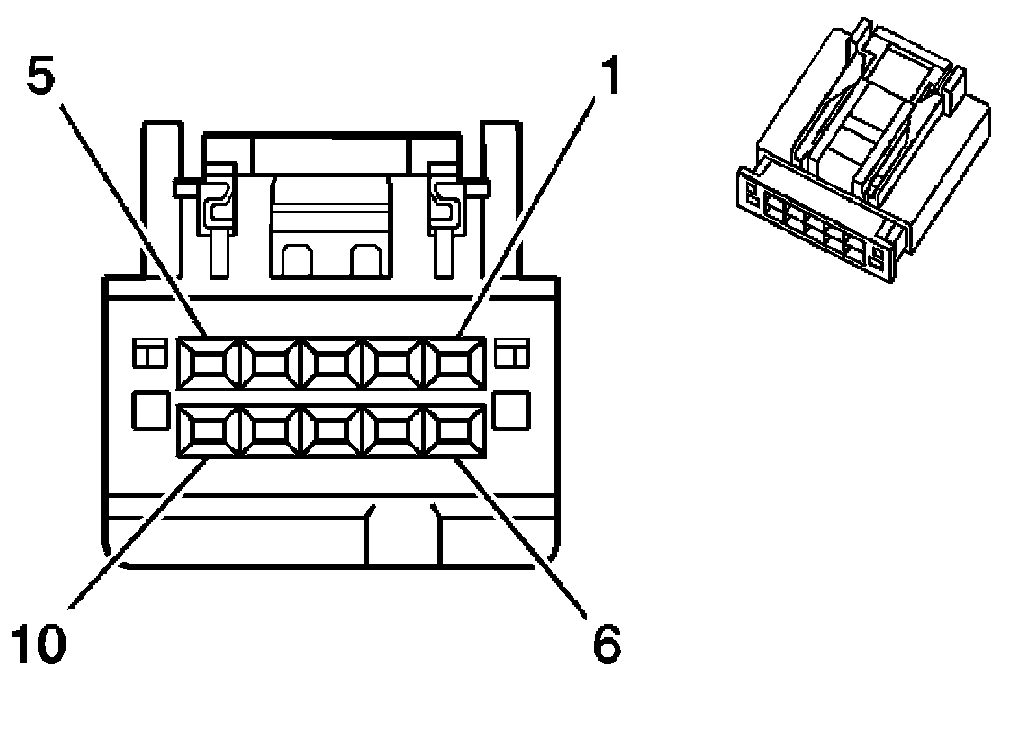

Steering Wheel Control Switch - Left

Connector Part Information
OEM: 30700-1100
Service: -
Description: 10-Way F HDAC64 DR Series (GY)
