Automatic Transmission Internal Connector End Views

Automatic Transmission Internal Connector End Views

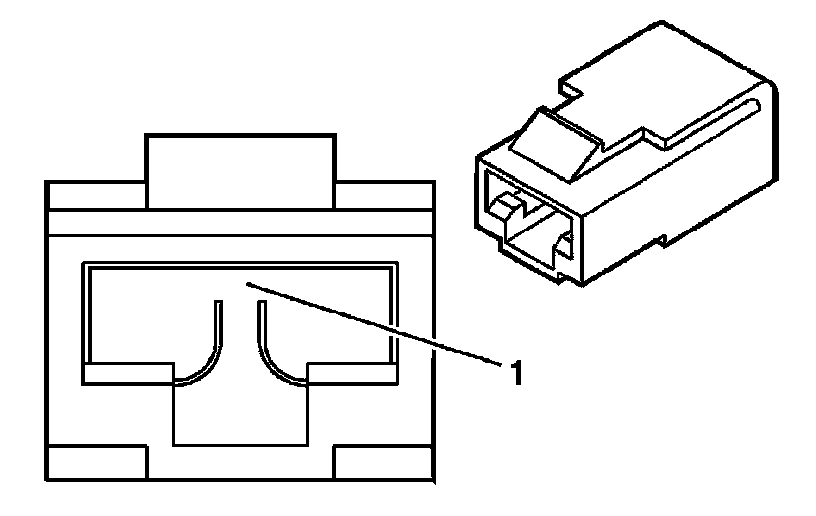

1-2, 2-3. Reverse Shift Solenoid (S3)

Connector Part Information
OEM:
Service:
Description: Conn 1-Way F (GY)

Terminal Part Information
Terminal:
Core/Insulation Crimp:
Release Tool/Test Probe:

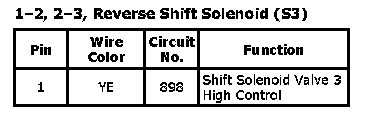

1-2, 2-3, Reverse Shift Solenoid (S3)

2-3, 3-4 Shift Solenoid (S2)

Connector Part Information
OEM:
Service:
Description: Conn 1-Way F (BK)

Terminal Part Information
Terminal:
Core/Insulation Crimp:
Release Tool/Test Probe:

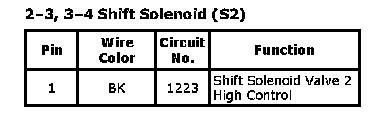

2-3, 3-4 Shift Solenoid (S2)

3-4, 4-5 Shift Solenoid (S4)

Connector Part Information
OEM:
Service:
Description: Conn 1-Way F (BU)

Terminal Part Information
Terminal:
Core/Insulation Crimp:
Release Tool/Test Probe:

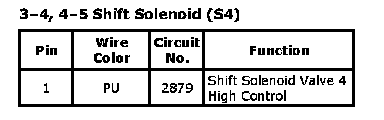

3-4, 4-5 Shift Solenoid (S4)
