Brake Fluid Level Sensor/Switch

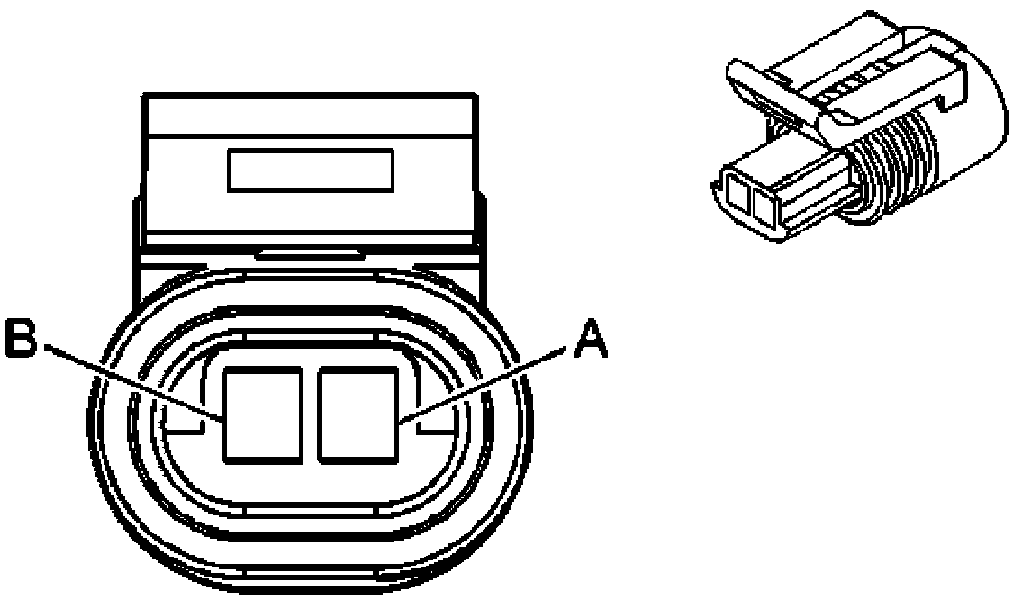

Brake Fluid Level SwitchConnector Part Information OEM: 12162195
Service: 88987993
Description: 2-Way F Metri-Pack 150.2 Series, Sealed, Pull To Seat (BK)
Terminal Part Information Terminal/Tray: 12124075/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12180559-1/J-35616-2A (GY)

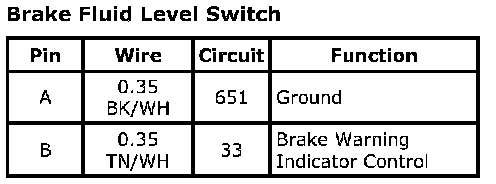

Brake Fluid Level Switch:
