Braking Sensor/Switch

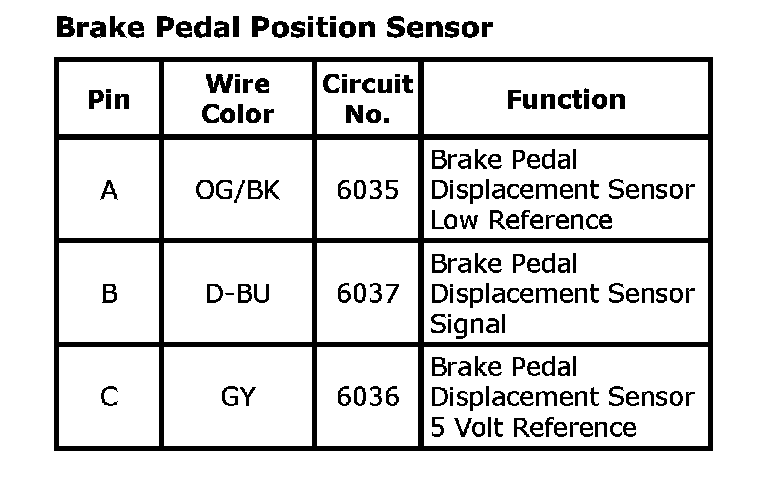

Brake Pedal Position Sensor

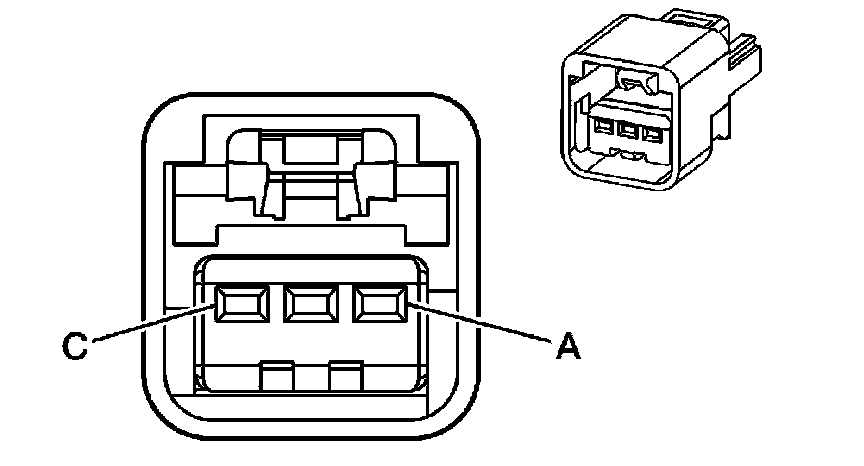

Connector Part Information
OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information
Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
