Branching Point

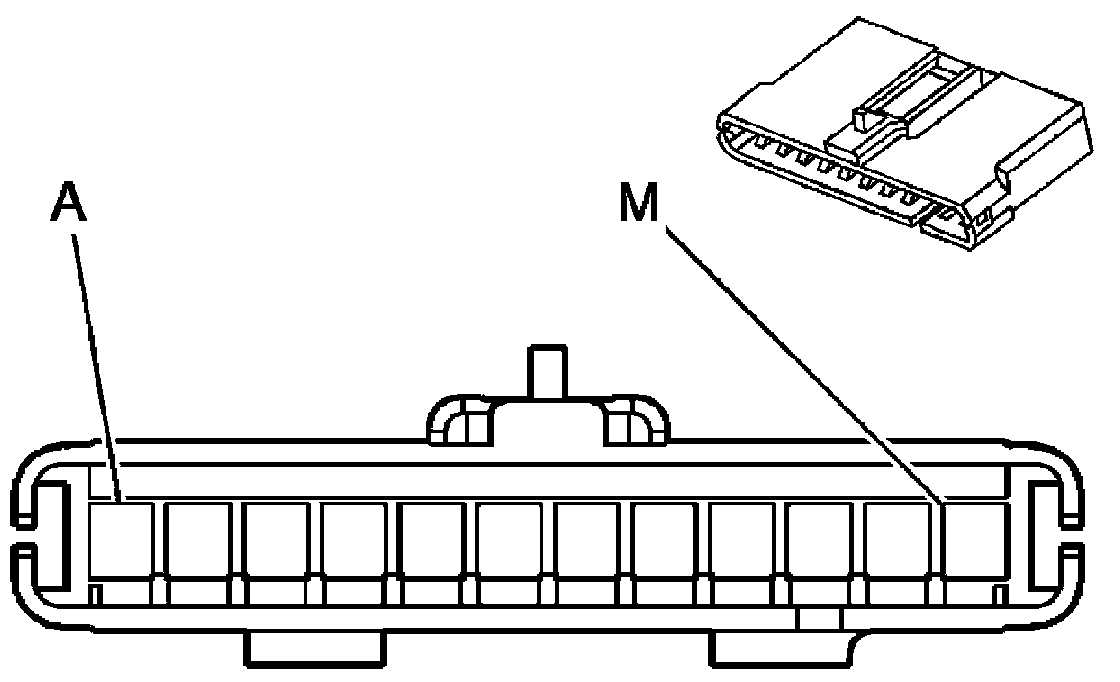

Splice Pack Connector End Views

JX200






Connector Part Information
OEM: 12191216
Service: 15305914
Description: 12-Way F GT 150 Series, Unsealed (L-GY)

Terminal Part Information
Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

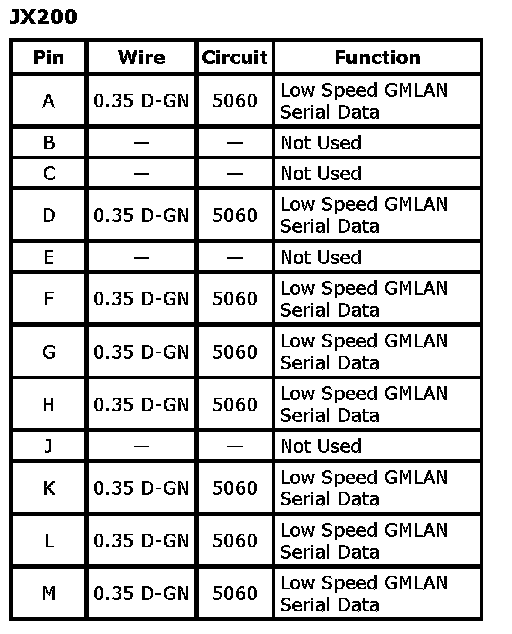

JX200:
