Dimmer Switch

Dimmer Switch

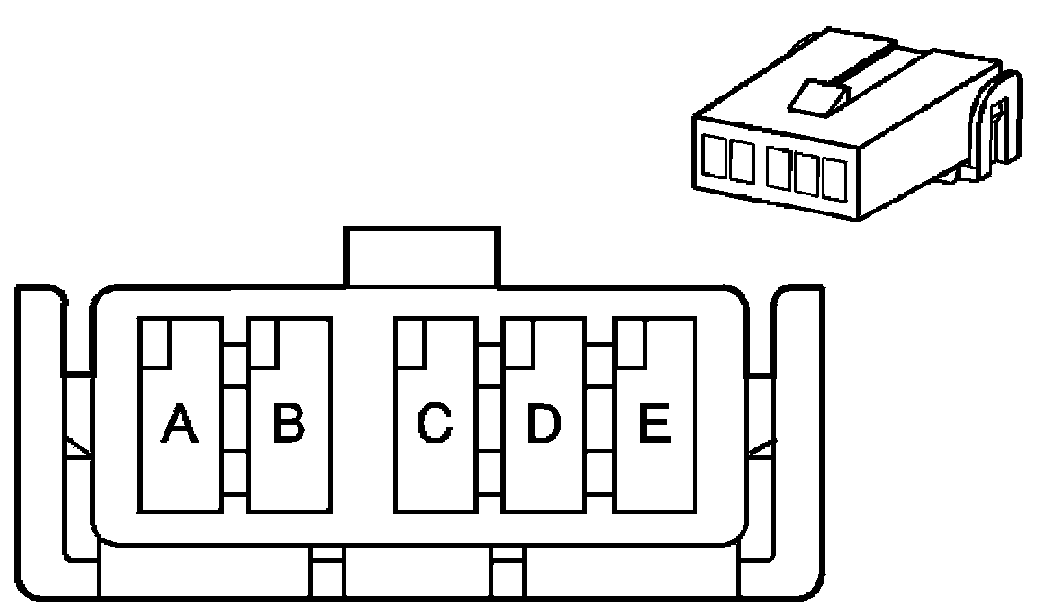

Connector Part Information
OEM: 12020299
Service: 12102566
Description: 5-Way F P/C Edgeboard - Standard (CM)

Terminal Part Information
Terminal/Tray: 12040511/3
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-4A (PU)

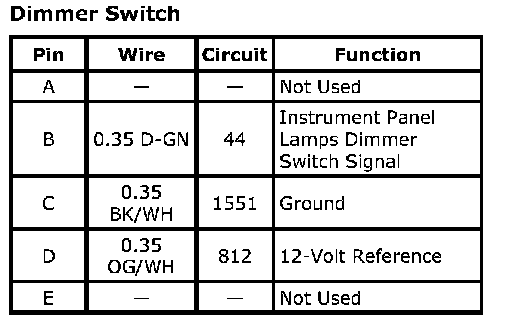

Dimmer Switch:
