Television / Monitor

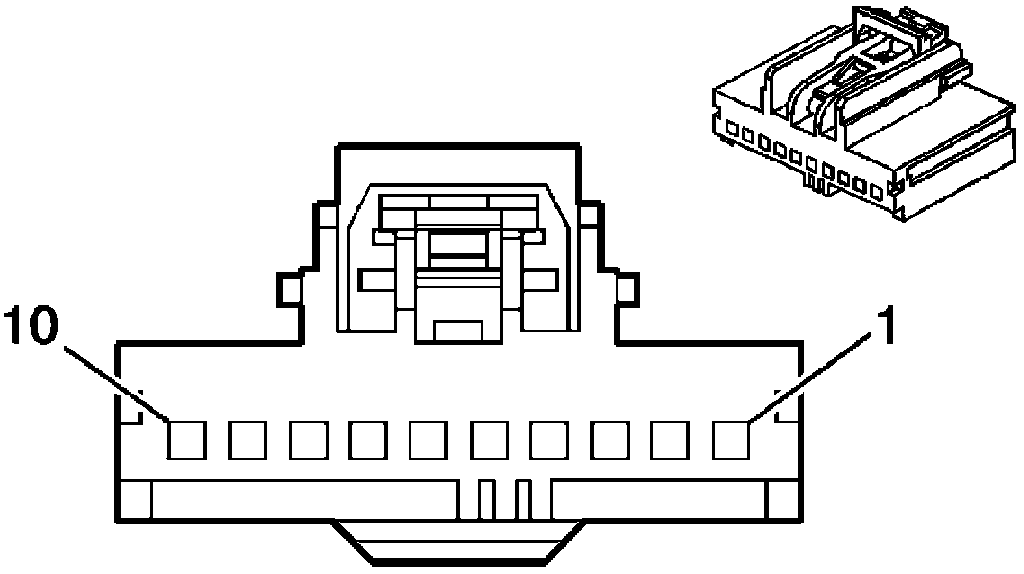

Video Display (UUC)Connector Part Information OEM: 7283-9088-30
Service: See Catalog
Description: 10-Way F Kaizen 0.64 Series (BK)
Terminal Part Information Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

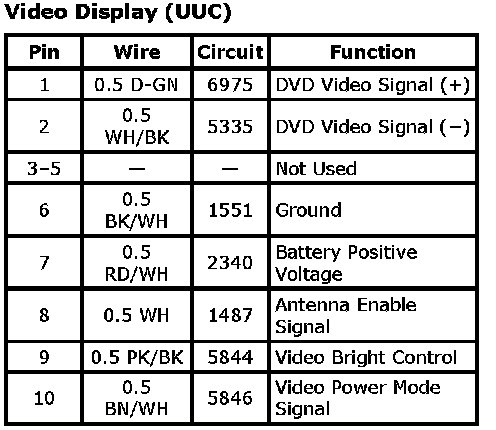

Video Display (UUC):
