Fog/Driving Lamp Switch

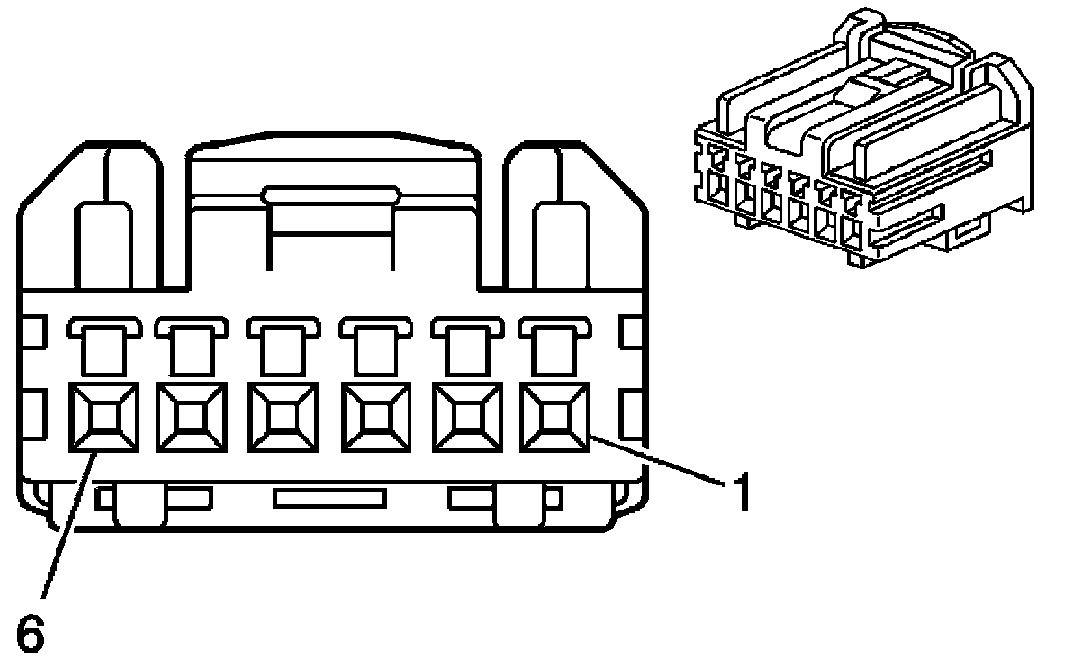

Rear Wiper/Washer/Fog Lamp SwitchConnector Part Information OEM: HCMPB-06-K
Service: 19115655
Description: 6-Way F HCM Series (BK)
Terminal Part Information Terminal/Tray: SHCM-A03T-P025/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

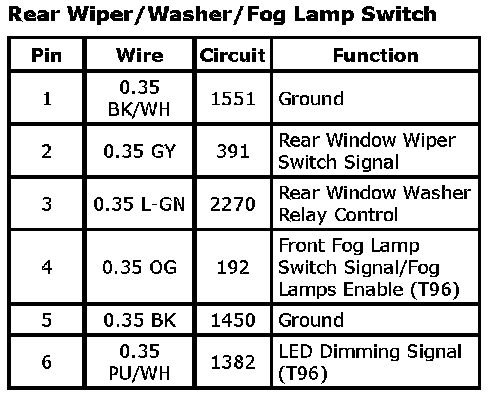

Rear Wiper/Washer/Fog Lamp Switch:
