Ambient Temperature Sensor / Switch HVAC

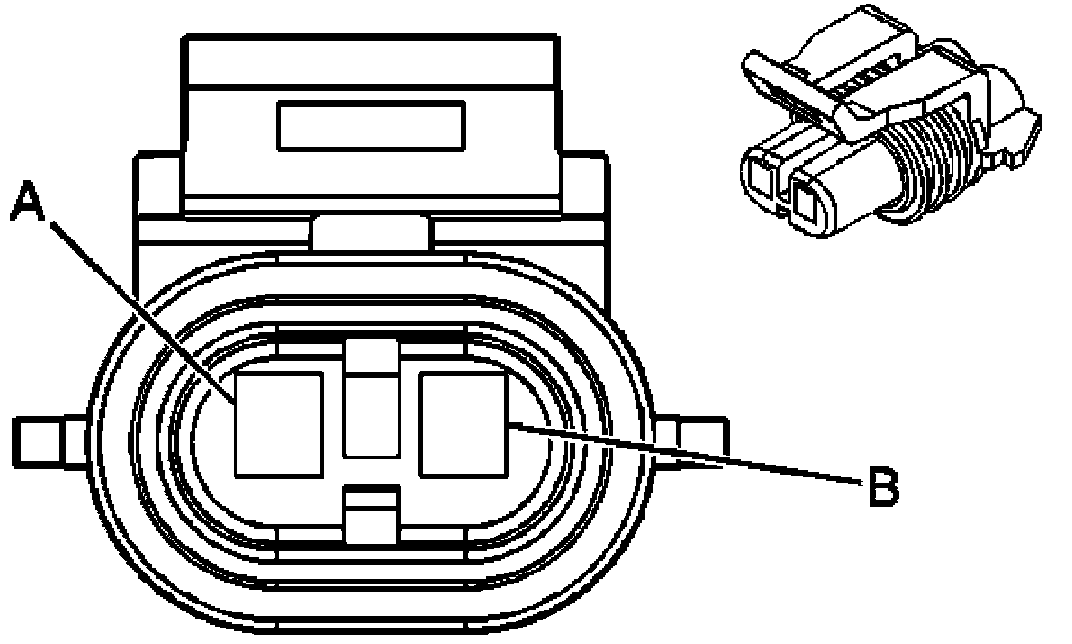

Ambient Air Temperature SensorConnector Part Information OEM: 12052642
Service: 12101856
Description: 2-Way F Metri-Pack 150 Series, Sealed (L-GN)
Terminal Part Information Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

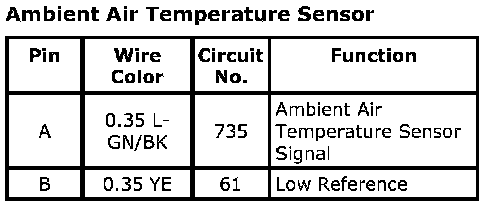

Ambient Air Temperature Sensor:
