Steering Mounted Controls Assembly

Entertainment/Communication Connector End Views

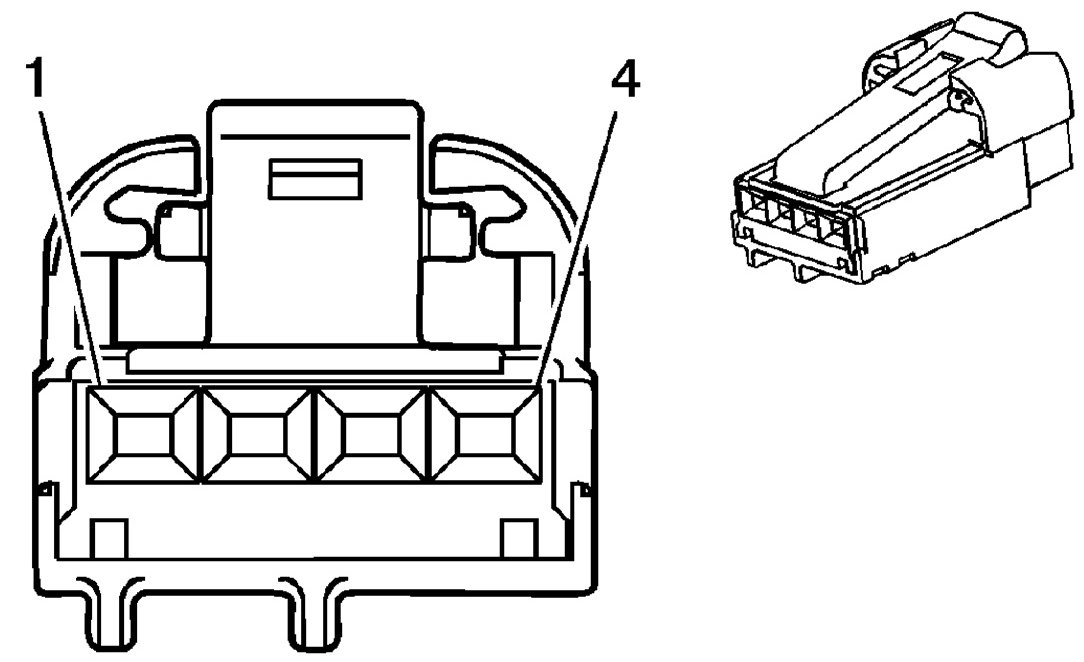

Steering Wheel Control Switch - Right (UK3)






Connector Part Information
OEM: 31068-1010
Service:
Description: 4-Way F HDAC64 SR Housing (BK)

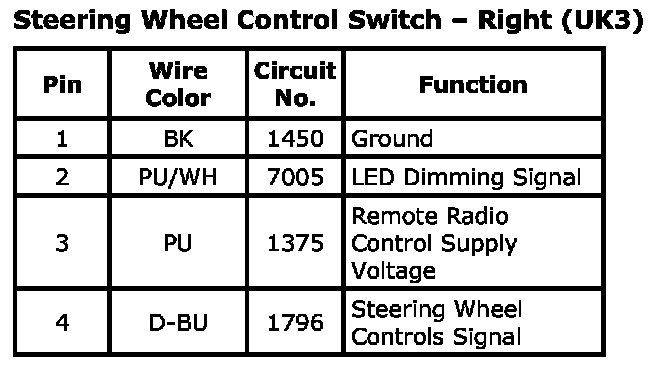

Steering Wheel Control Switch - Right (UK3)






Secondary/Configurable Control Connector End Views

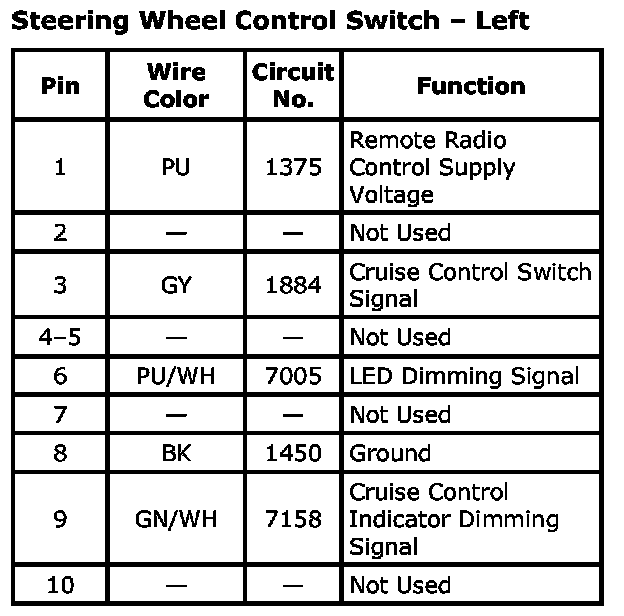

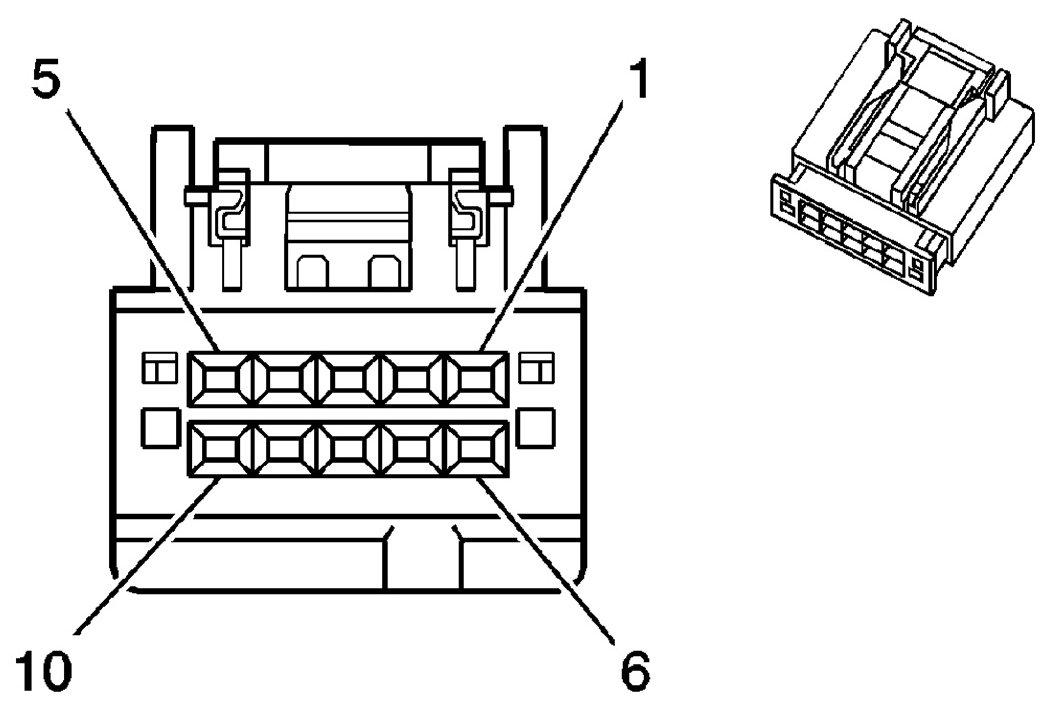

Steering Wheel Control Switch - Left






Connector Part Information
OEM: 30700-1100
Service:
Description: 10-Way F HDAC64 DR Series (GY)

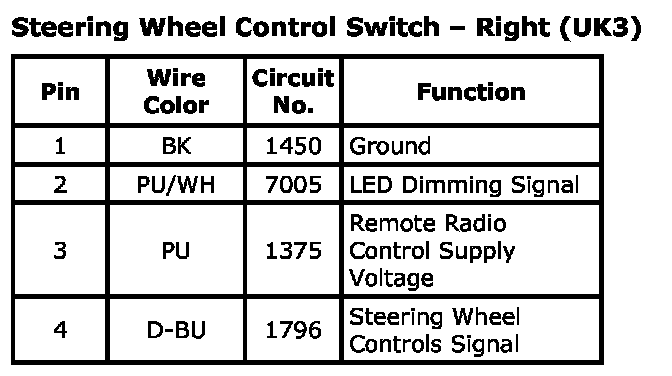

Steering Wheel Control Switch - Right (UK3)






Connector Part Information
OEM: 31068-1010
Service:
Description: 4-Way F HDAC64 SR Housing (BK)
