Steering Mounted Controls Transmitter

Steering Wheel Control Switch - Left (K34)

Connector Part Information
OEM: 30700-1100
Service: See Catalog
Description: 10-Way F HDAC64 DR Series (GY)

Steering Wheel Control Switch - Left (K34):

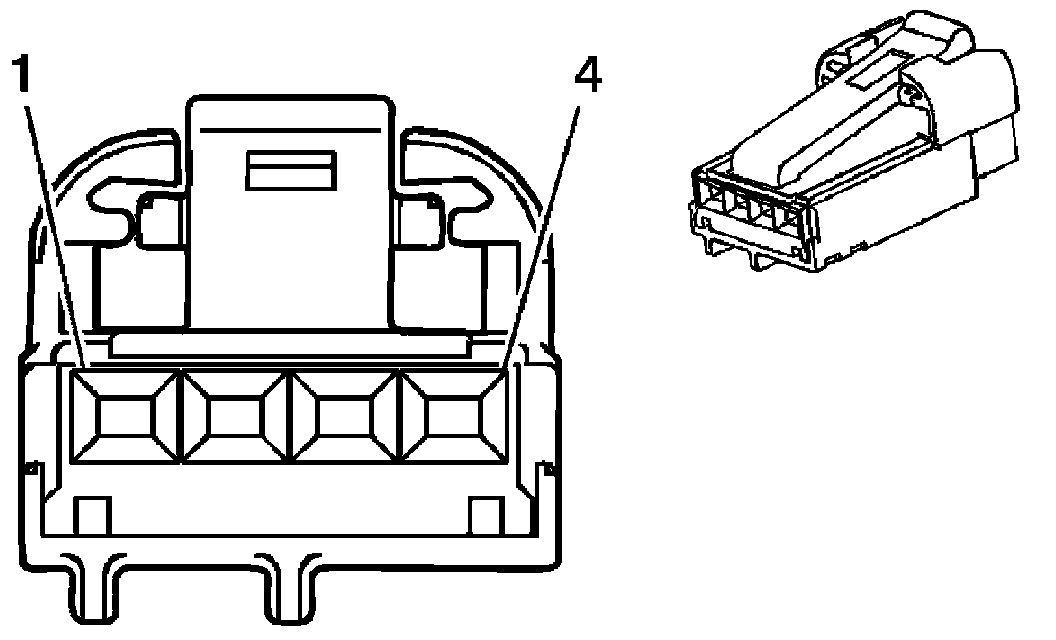

Steering Wheel Control Switch - Right (UK3)

Connector Part Information
OEM: 31068-1010
Service: See Catalog
Description: 4-Way F HDAC64 SR Housing (BK)

Steering Mounted Controls Transmitter

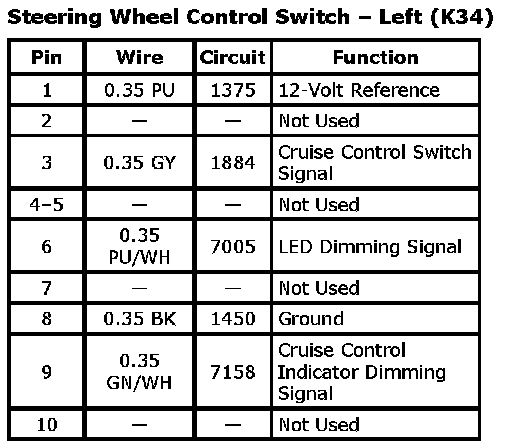

Steering Wheel Control Switch - Left (K34):

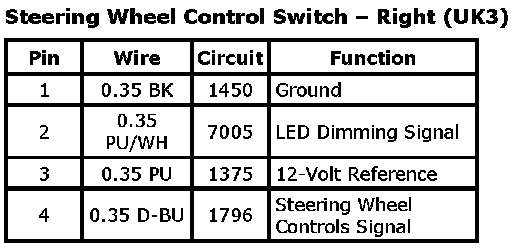

Steering Wheel Control Switch - Right (UK3):
