Traction Control Switch
Traction Control Switch (TCS)Connector Part Information OEM: 50-57-9403
Service: See Catalog
Description: 3-Way F Receptacle 0.64 Unsealed (BK)
Terminal Part Information Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

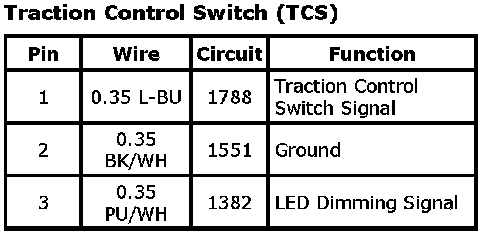

Traction Control Switch (TCS):
