Trunk / Liftgate Switch
Liftgate SwitchConnector Part Information OEM: 15366025
Service: 15306406
Description: 2-Way F GT 150 Series Sealed (GY)
Terminal Part Information Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

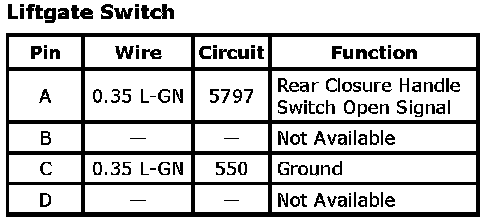

Liftgate Switch:
