Vanity Lamp

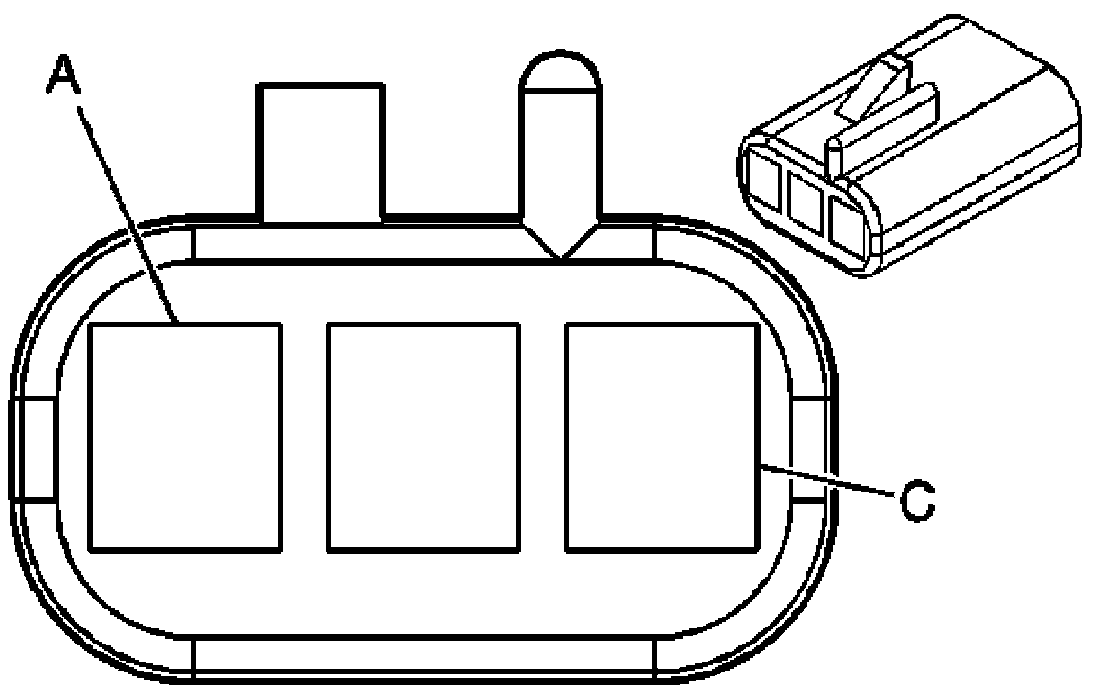

Vanity Mirror Dome Lamp Switch (UUC)






Connector Part Information
OEM: 12047782
Service: 12117371
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

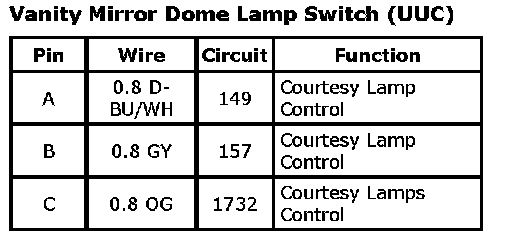

Vanity Mirror Dome Lamp Switch (UUC):

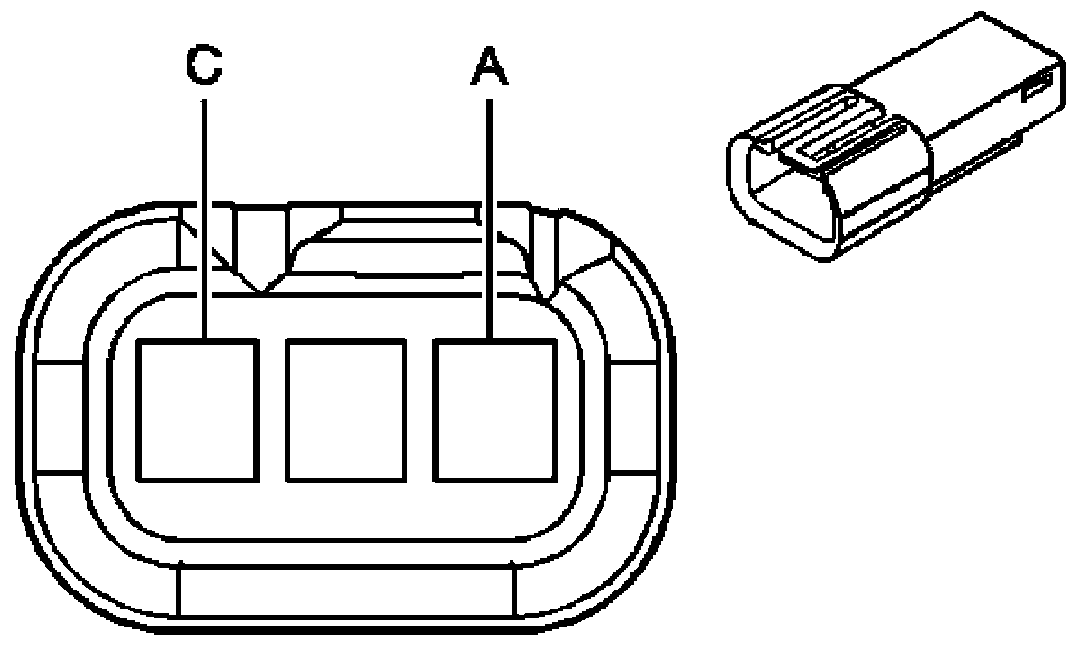

Vanity Mirror Map Lamp (UUC)






Connector Part Information
OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

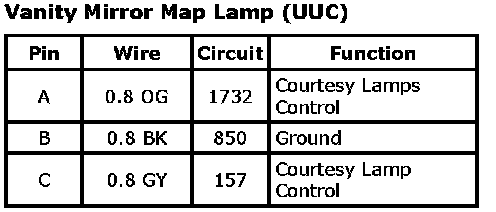

Vanity Mirror Map Lamp (UUC):
