Body Control Systems

Body Control System Schematics

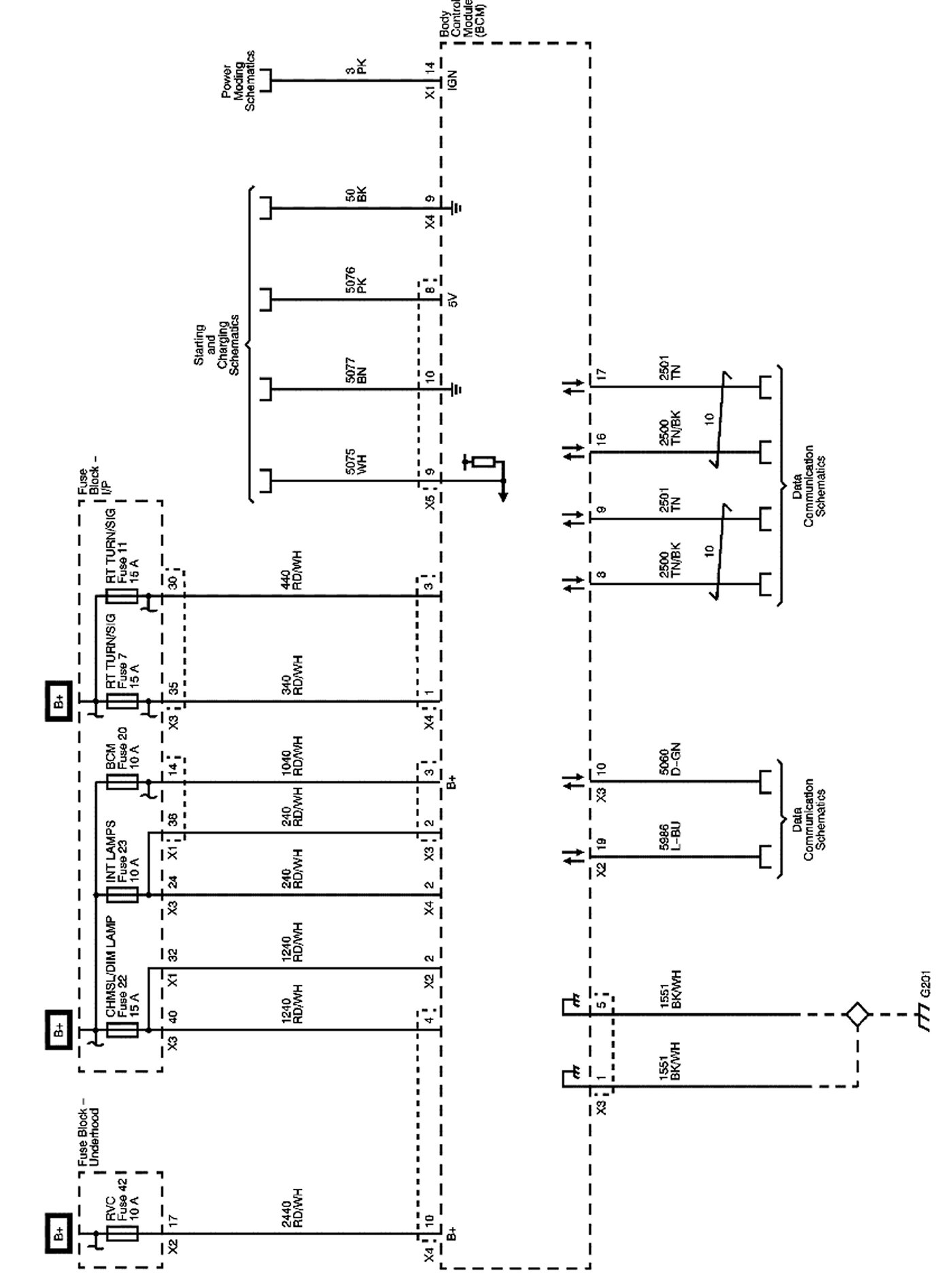

Power and Ground, Starting and Charging






Exterior Lights, Radio, Data Communications, ABS, Automatic Transmission, and Ignition Lock






Shift Lock, Headlights, Cruise, Wiper, and Instrument Panel






Interior Lights, Door Locks, Exterior Lights, Release Systems, Movable Windows, and Horns






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
