Brake Hose/Line

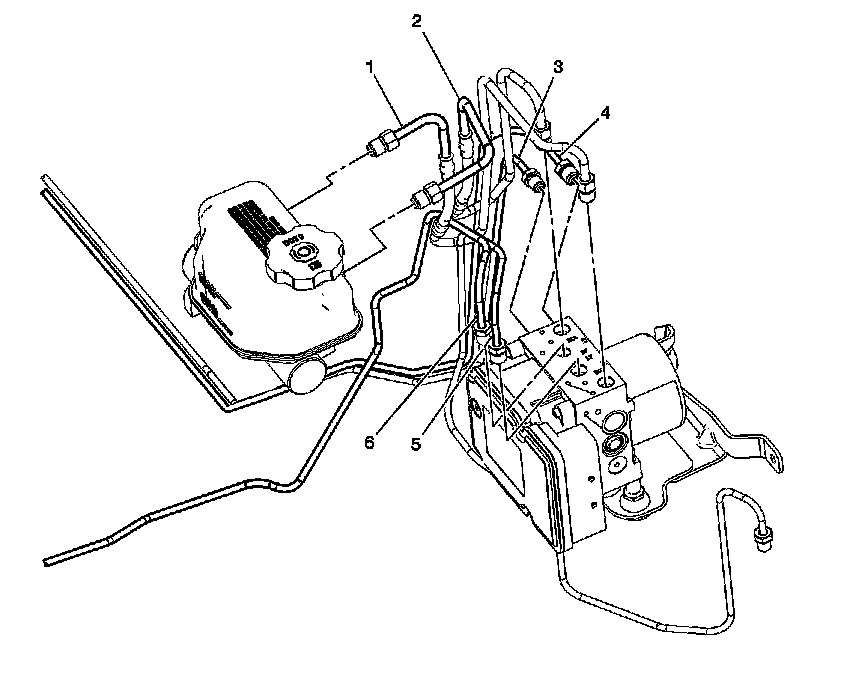

Hydraulic Brake Pipe Routing - Master Cylinder to ABS 1.
Master Cylinder Primary Brake Pipe
2.
Master Cylinder Secondary Brake Pipe
3.
BPMV Brake Pipe to LR Brake Corner
4.
BPMV Brake Pipe to RR Brake Corner
5.
BPMV Brake Pipe to LF Brake Corner
6.
BPMV Brake Pipe to RF Brake Corner
