Intake Manifold Installation

Intake Manifold Installation

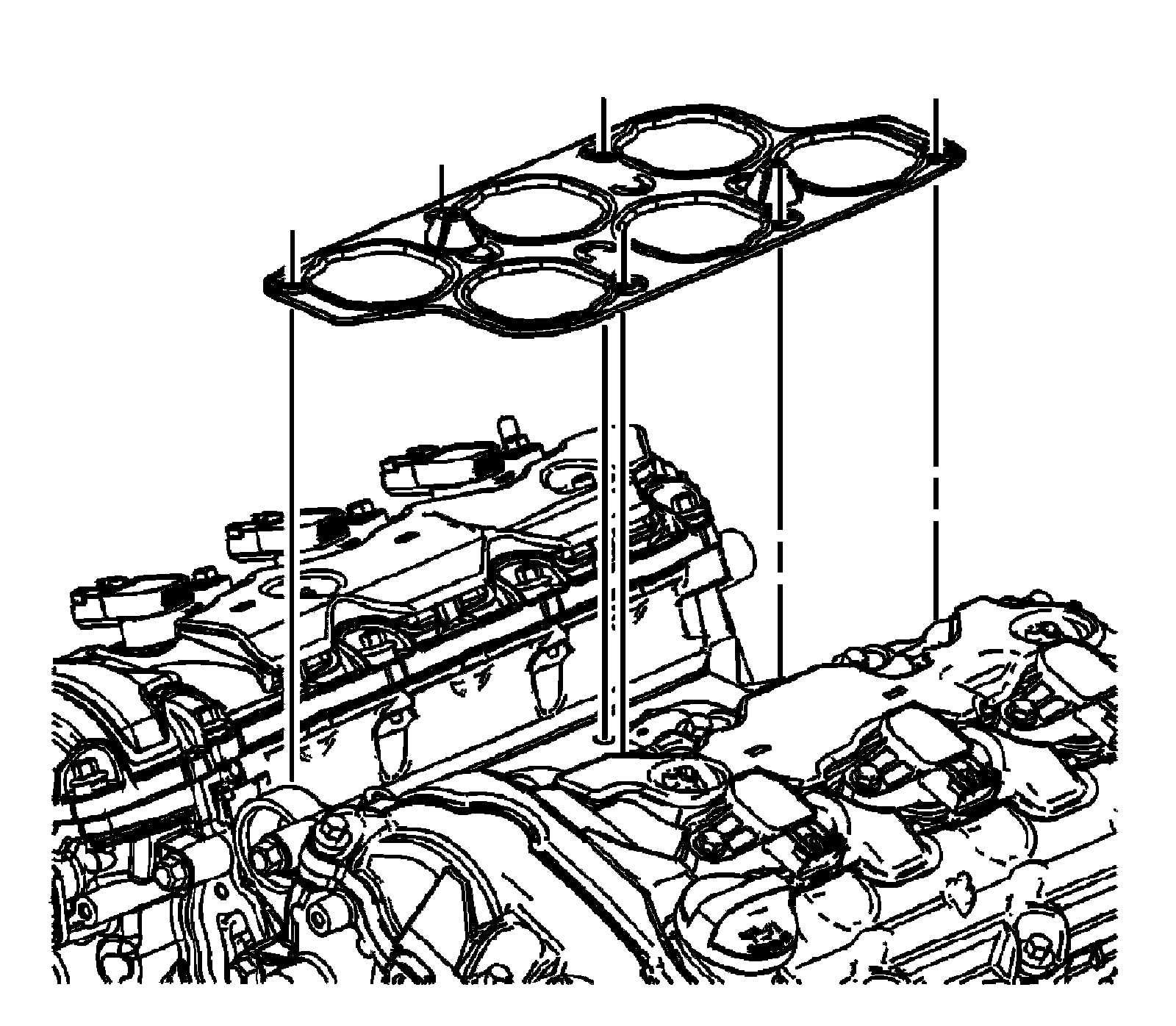

1. Install the NEW lower intake manifold gasket.

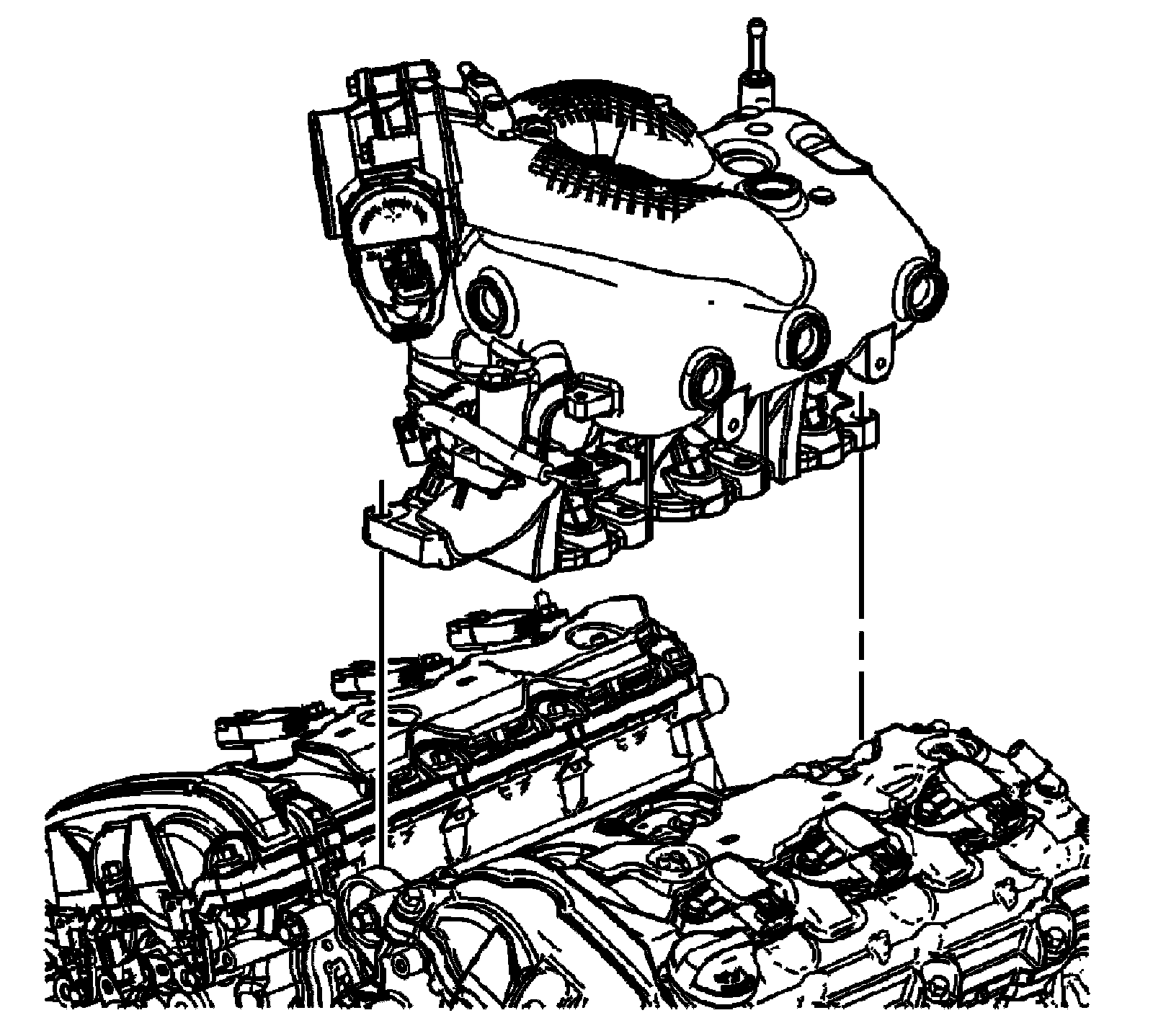

2. Install the intake manifold assembly.





CAUTION:
Refer to [Fastener Notice].

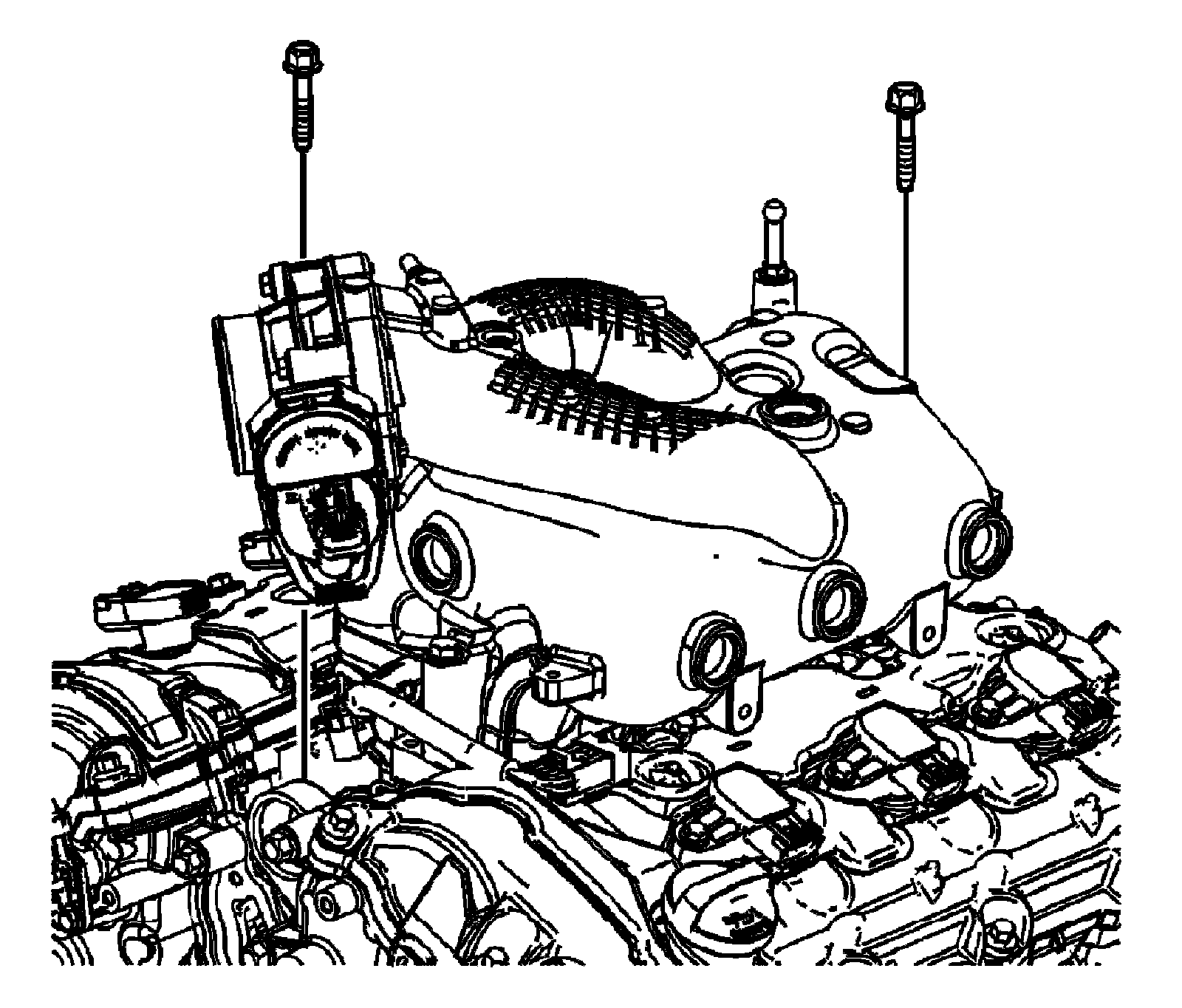

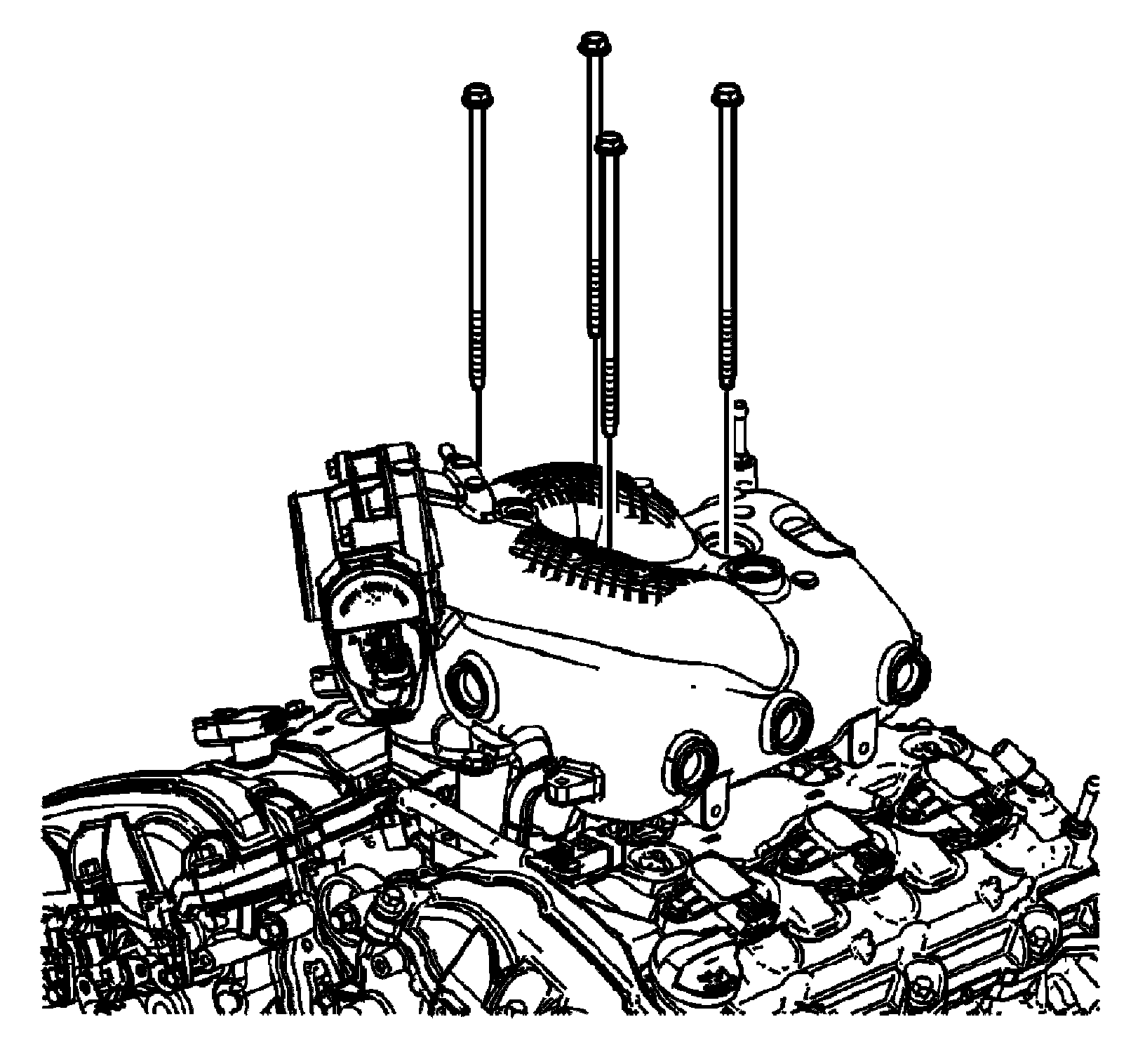

3. Loosely install the short intake manifold bolts.





4. Loosely install the long intake manifold bolts.
Tightening torque
Tighten all of the intake manifold bolts to 23 Nm (17 lb ft).

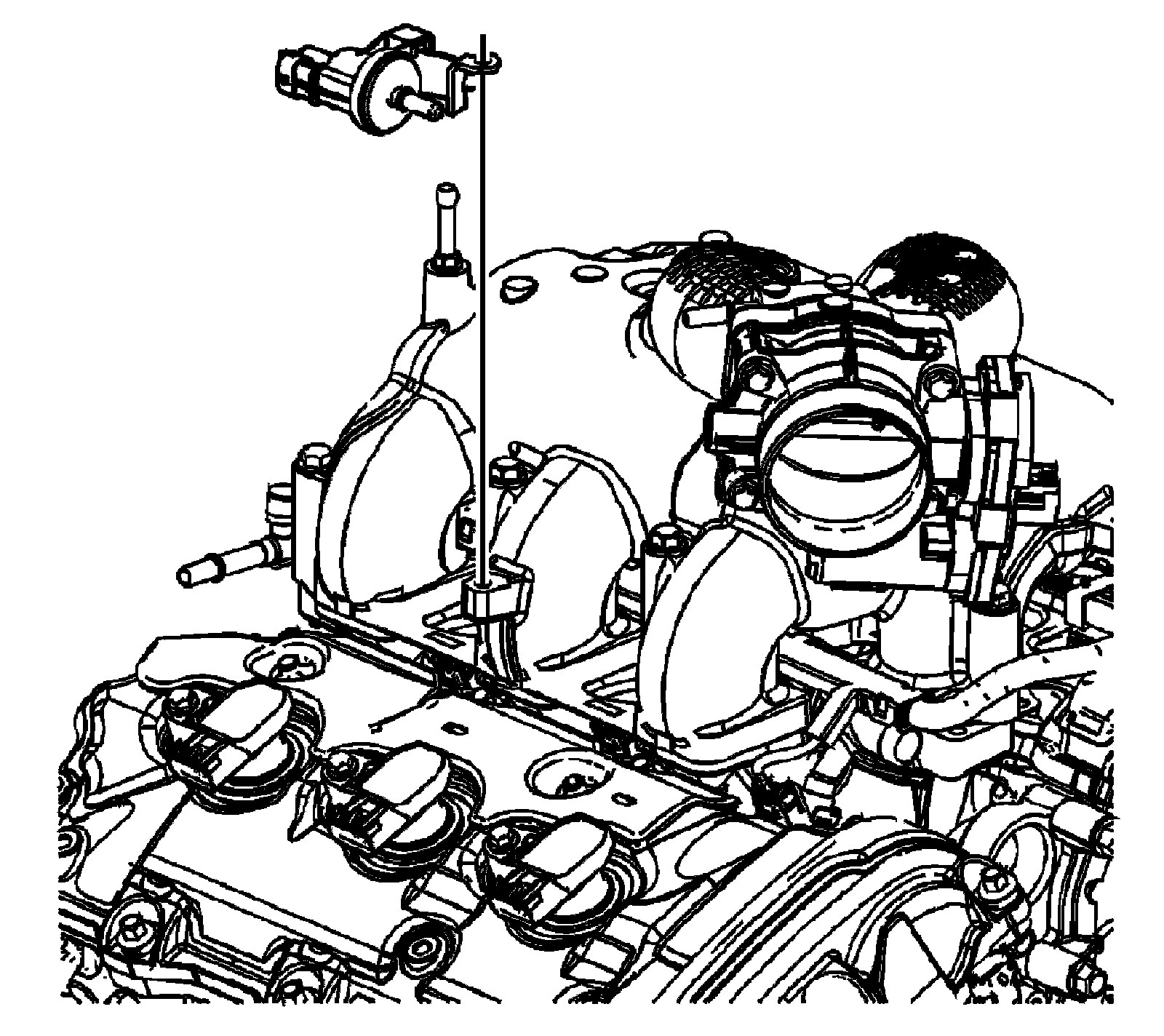

5. Install the evaporative emissions (EVAP) solenoid.

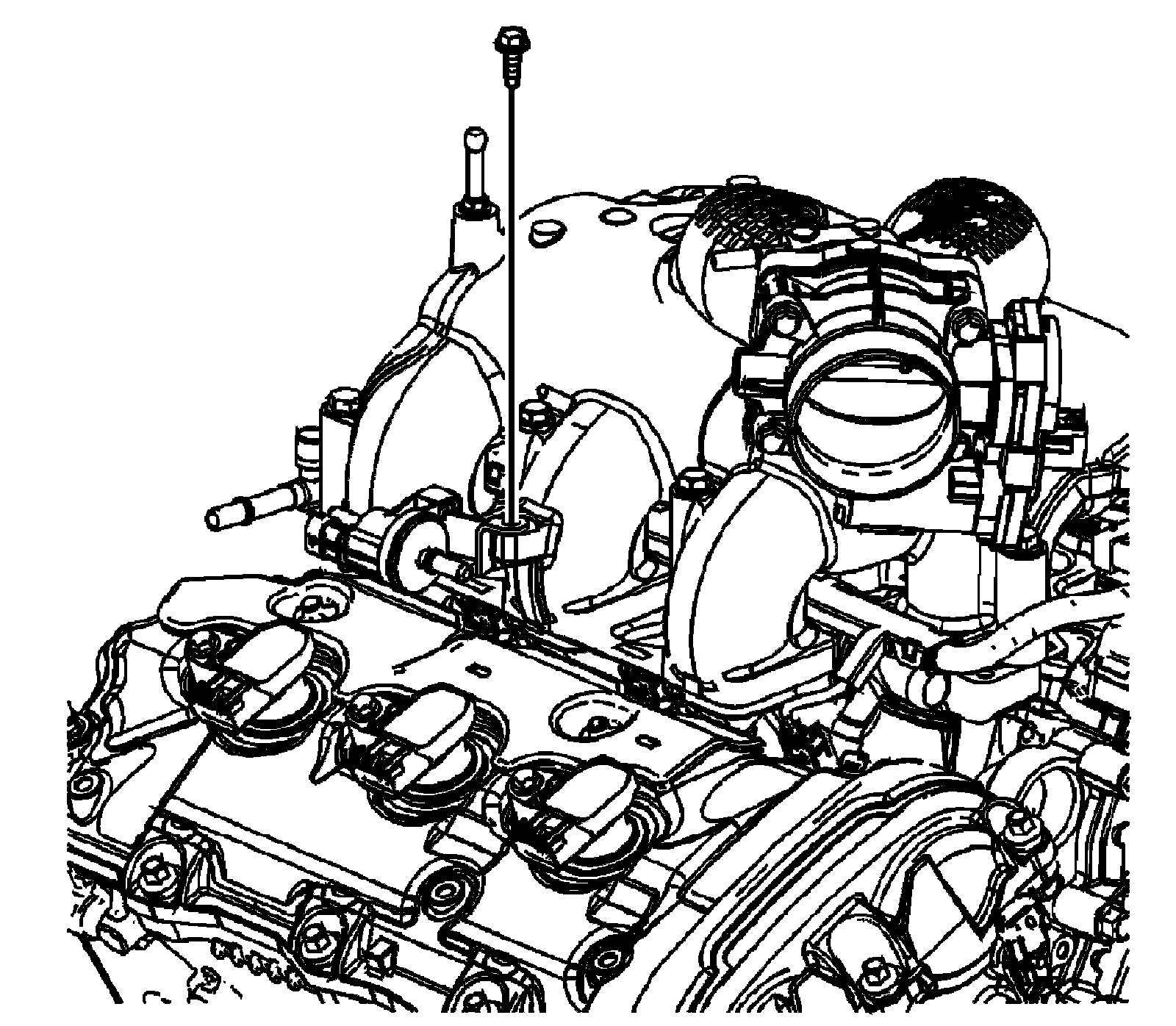

6. Install the EVAP solenoid bolt
Tightening torque
Tighten the EVAP solenoid bolt to 10 Nm (89 lb in).





7. Install and connect the intake manifold-to-solenoid EVAP hose to the intake manifold and to the EVAP solenoid.

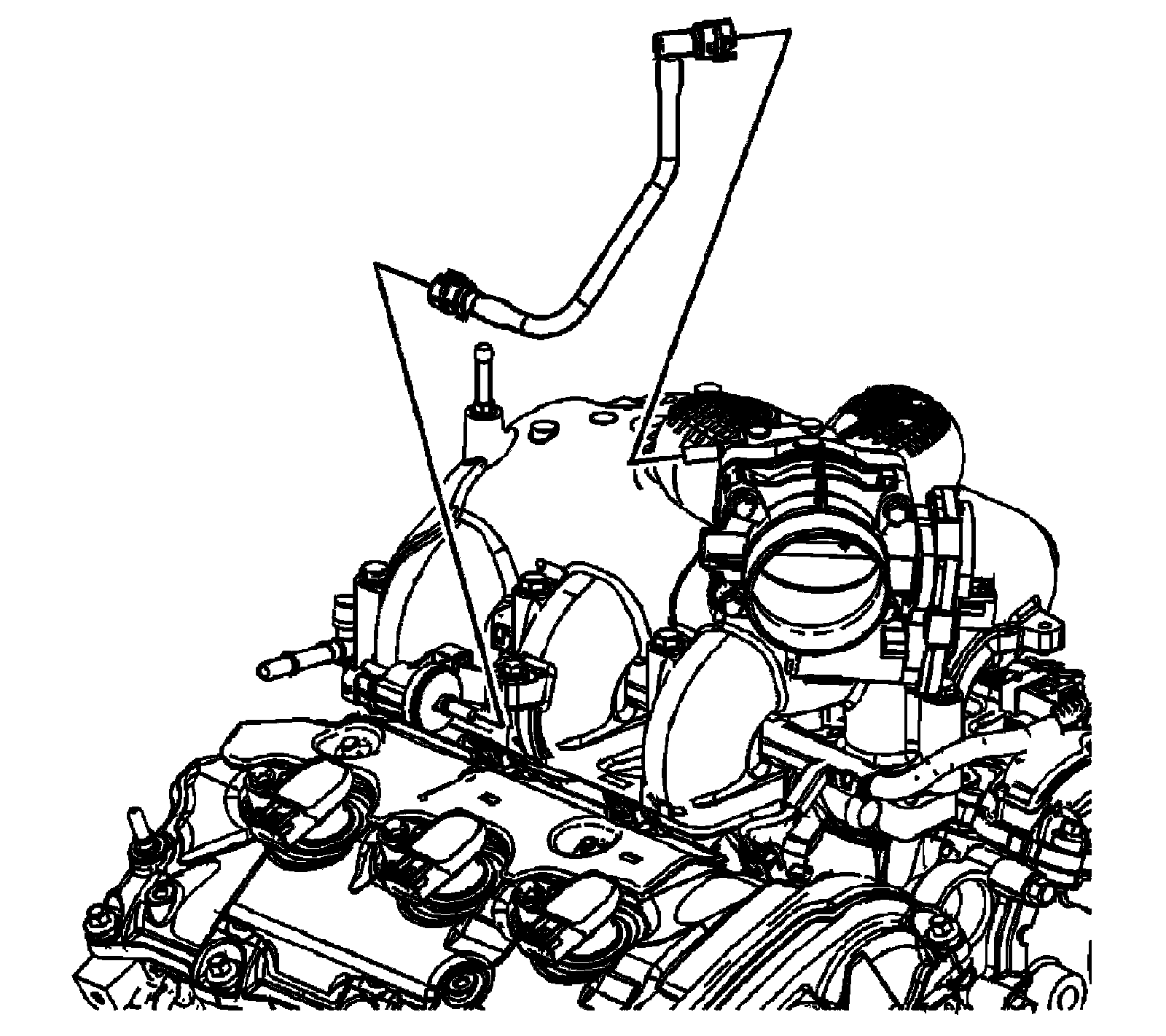

8. Install and connect the dirty air positive crankcase ventilation (PCV) hose to the intake manifold and to the right camshaft cover fitting.

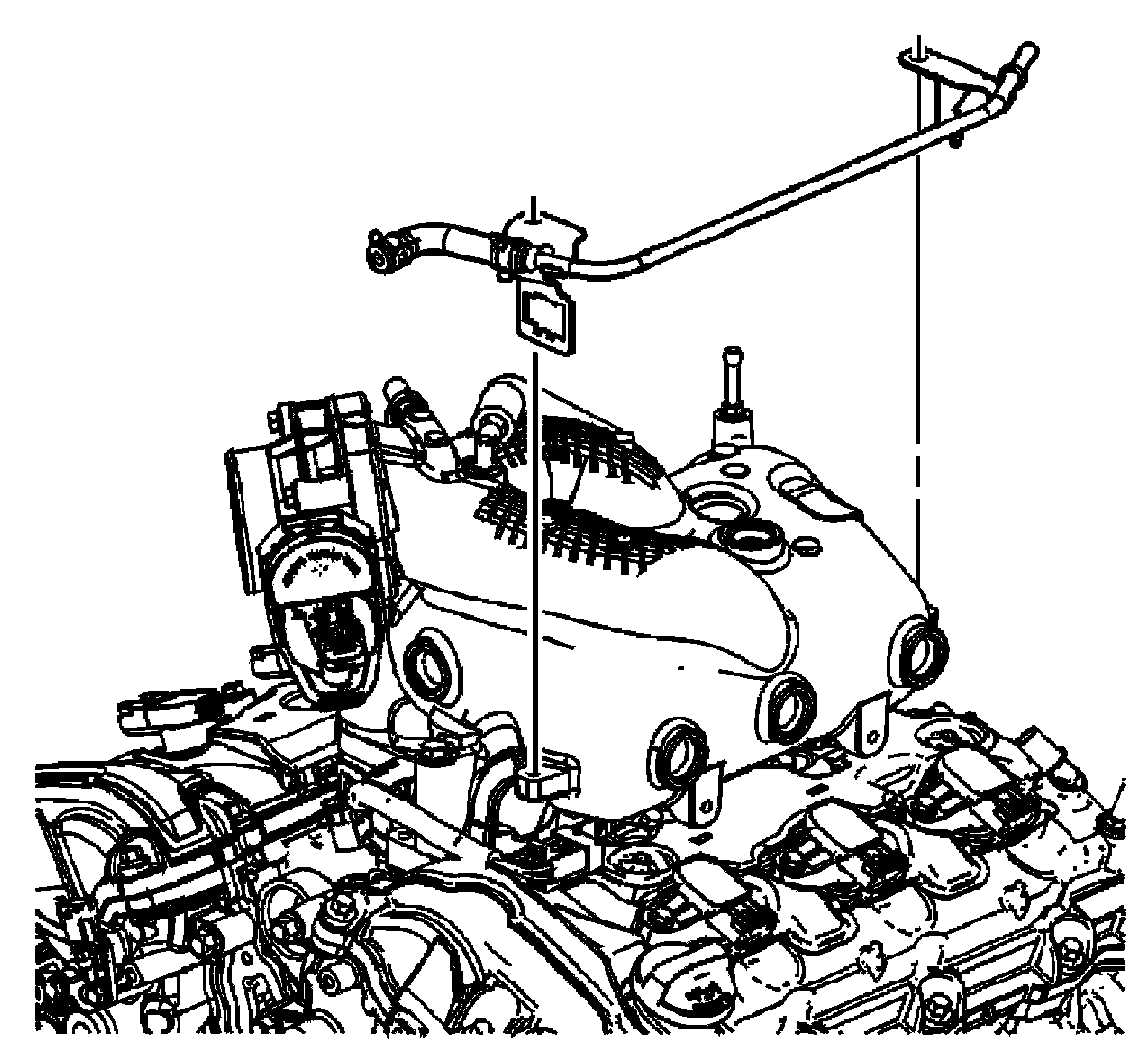

9. Install the engine coolant air bleed pipe.

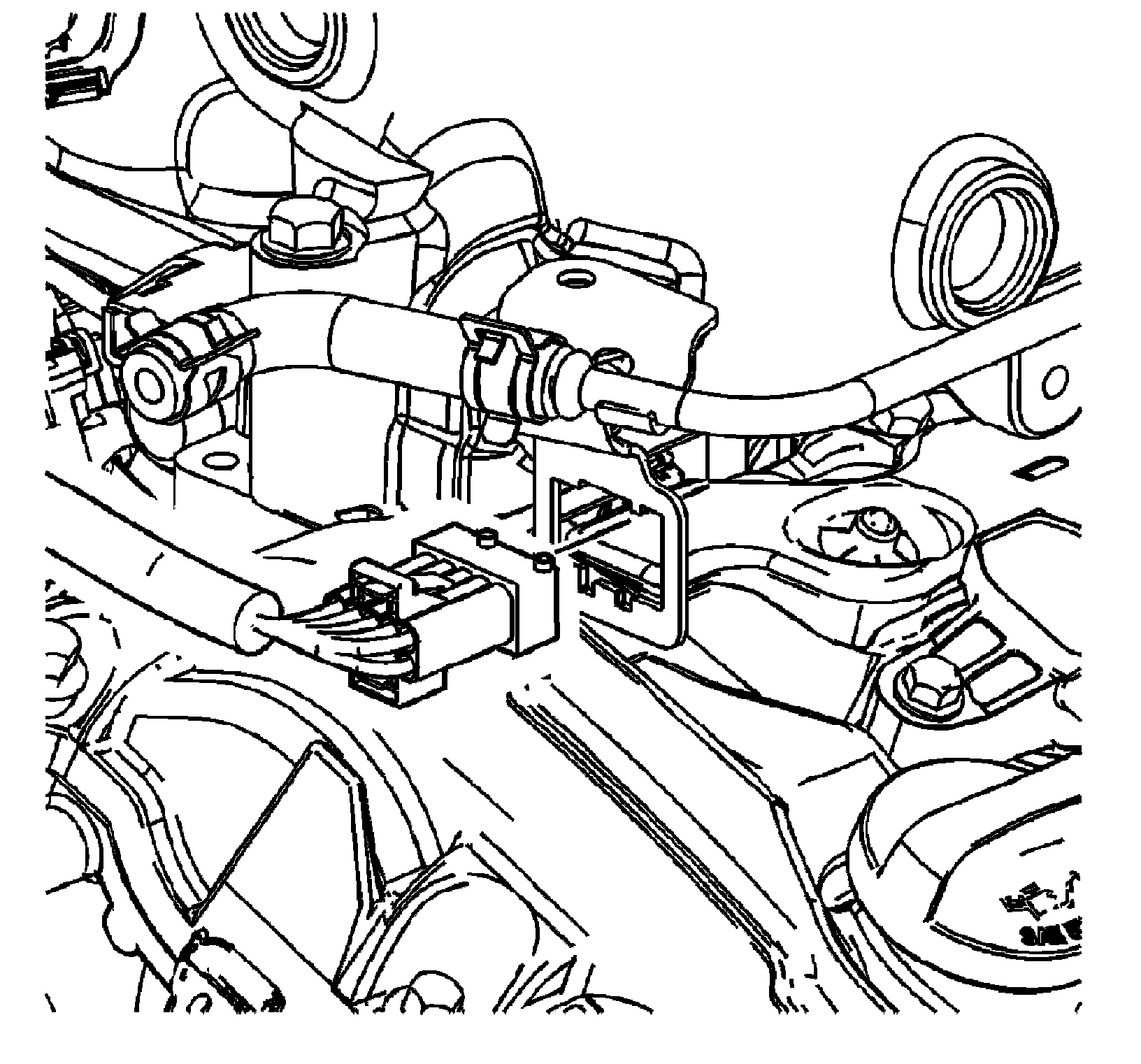

10. Install the fuel injector harness connector to the engine coolant air bleed pipe bracket.

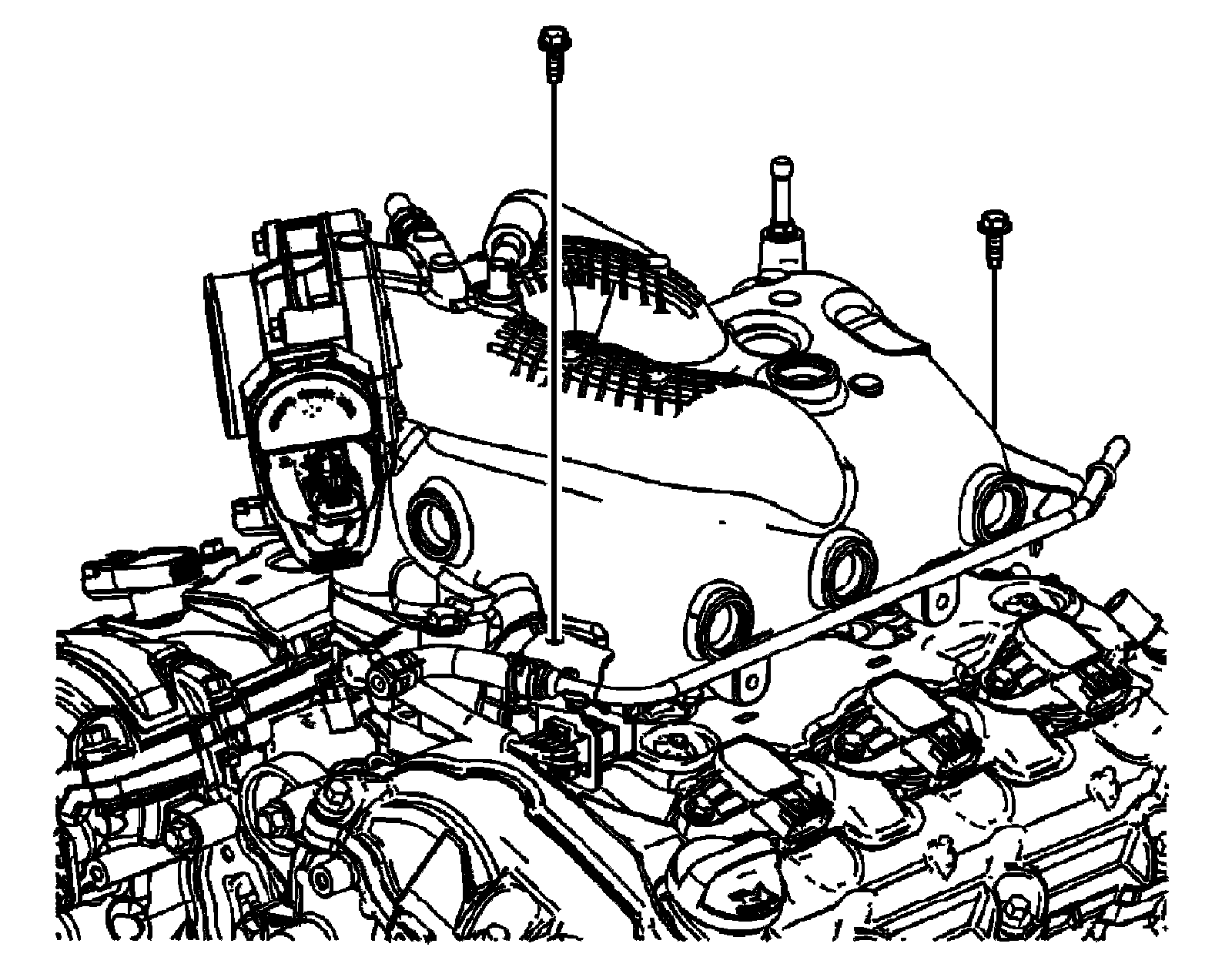

11. Install the engine coolant air bleed pipe bracket bolts to the upper intake manifold.
Tightening torque
Tighten the engine coolant air bleed pipe bracket bolts to 10 Nm (89 lb in).

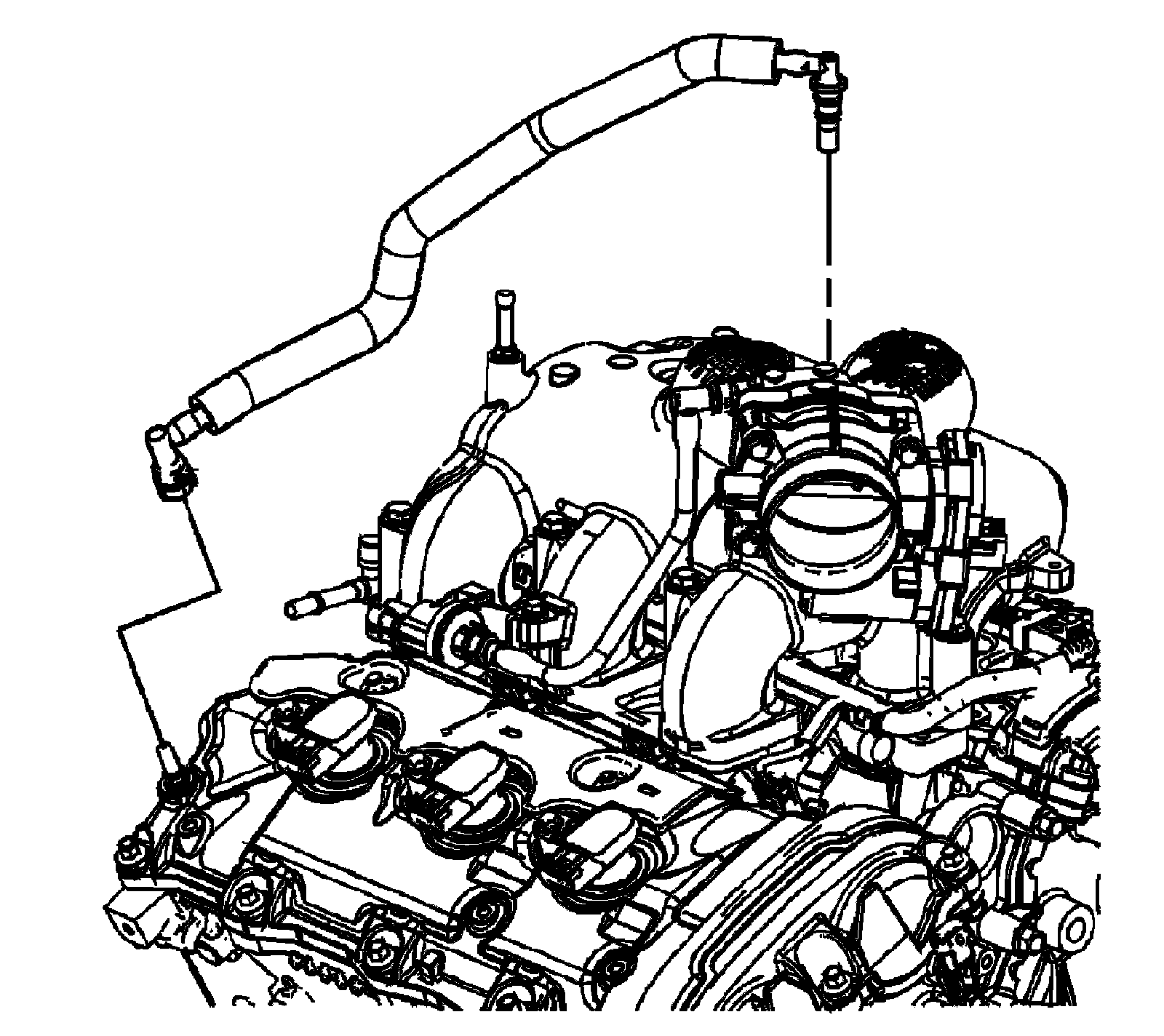

12. Install and connect the fresh air PCV hose to the left camshaft cover fitting.
