HVAC Control Rear (C69)

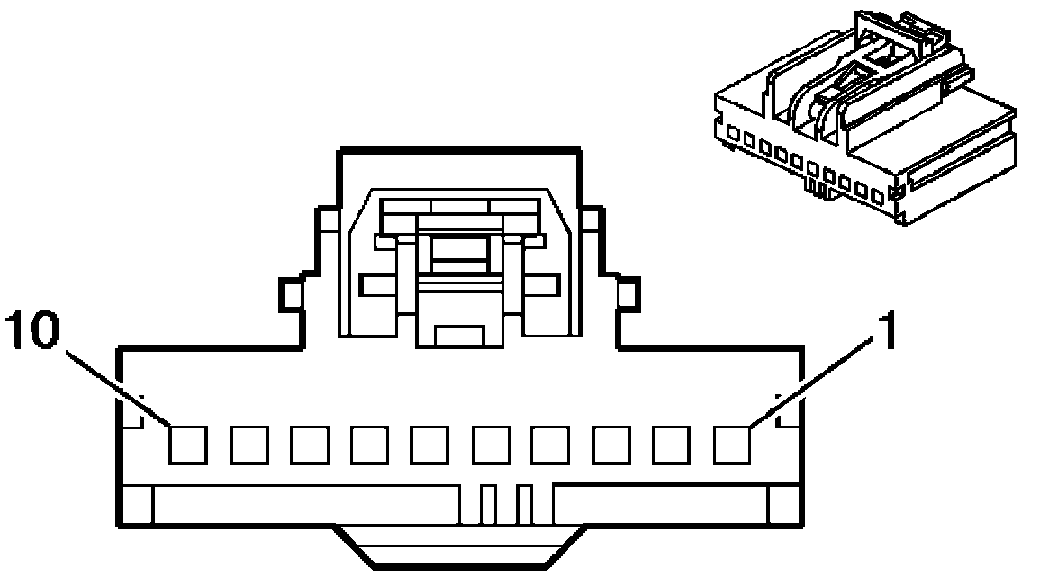

HVAC Control - Rear (C69)Connector Part Information OEM: 89047355
Service: See Catalog
Description: 10-Way F 0.64 Unsealed (BK)
Terminal Part Information Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

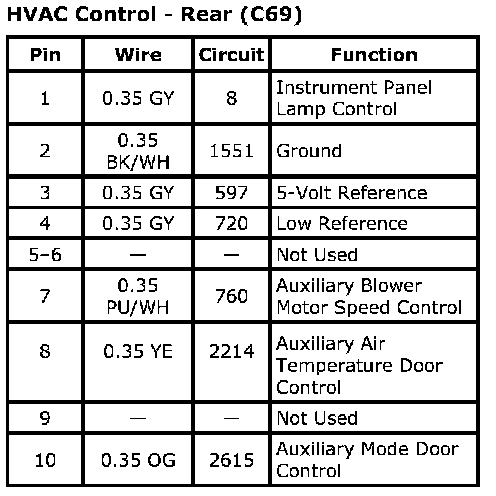

HVAC Control - Rear (C69):
