Variable Valve Timing Actuator: Diagrams

Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust

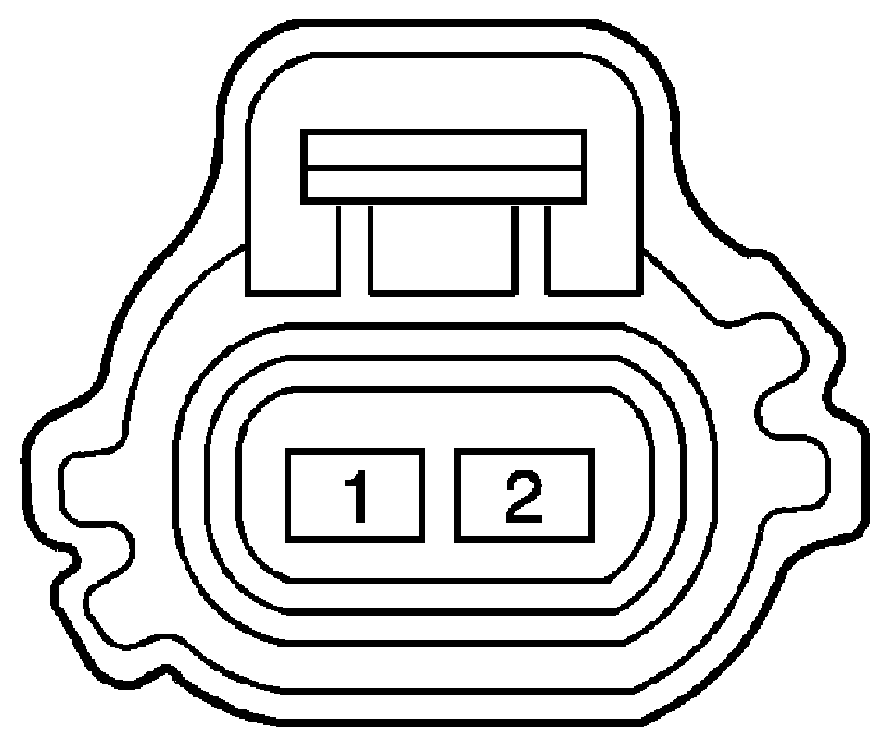

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust:






Connector Part Information
OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-4026/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

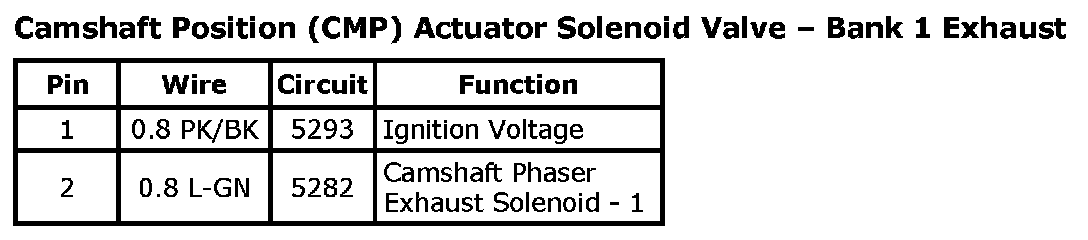

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust:






Camshaft Position (CMP) Actuator Solenoid - Bank 1 Intake

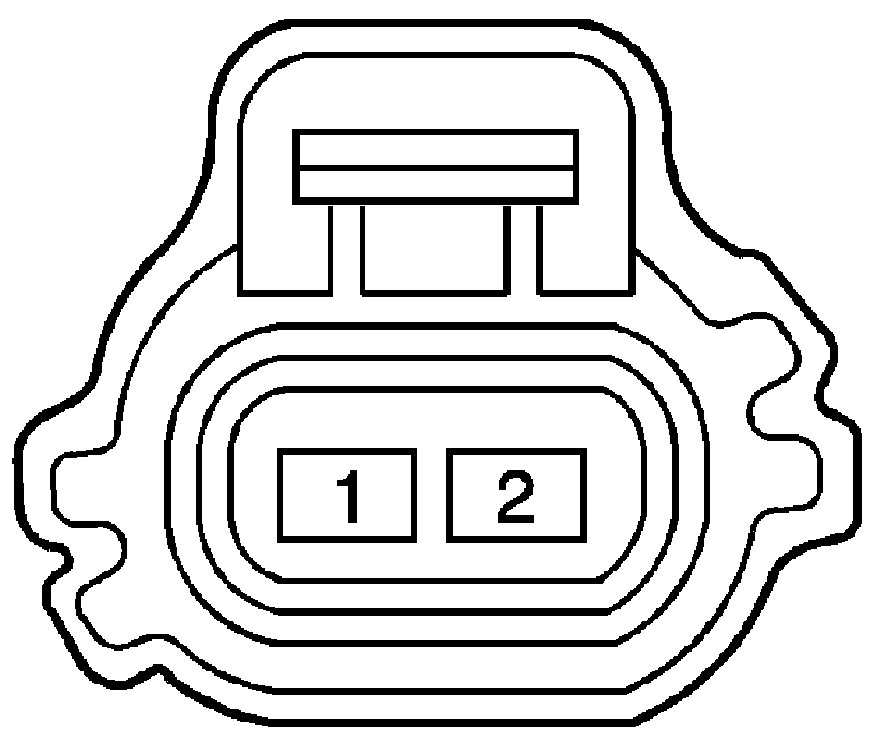

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake:






Connector Part Information
OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-4026/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

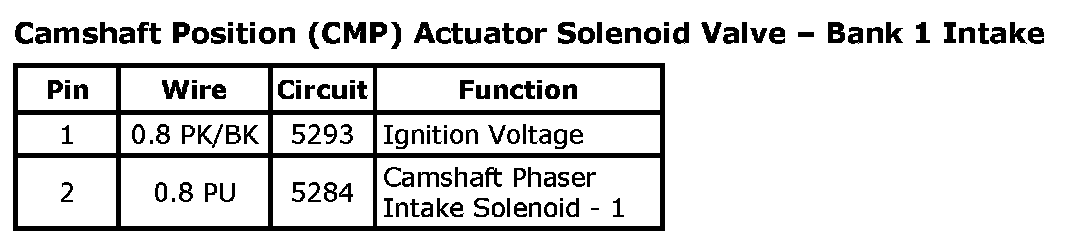

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake:






Camshaft Position (CMP) Actuator Solenoid - Bank 2 Exhaust

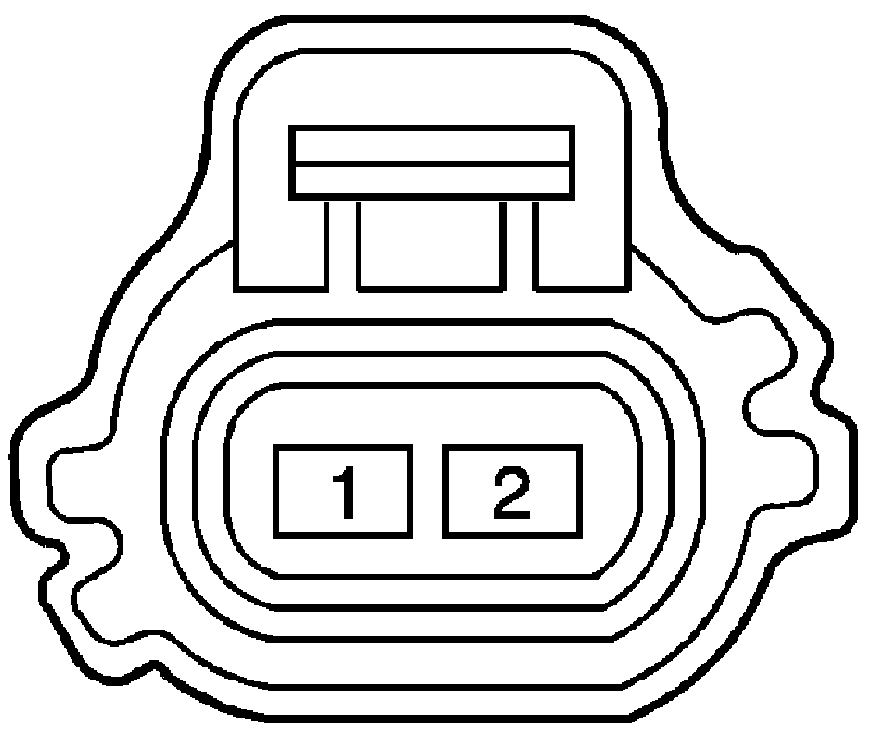

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust:






Connector Part Information
OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-4026/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

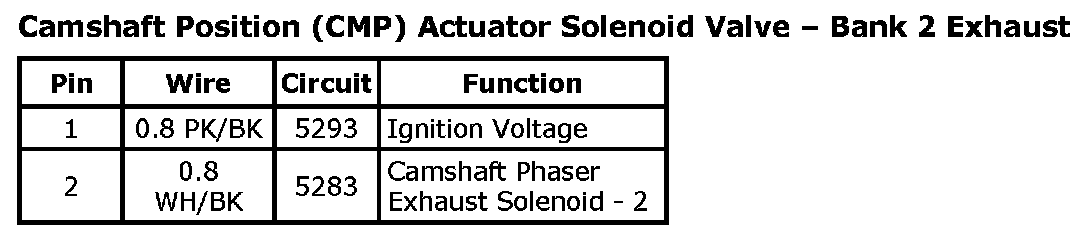

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust:






Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake:






Connector Part Information
OEM: 7283-7526-30
Service: 88988588
Description: 2-Way F (BK)

Terminal Part Information
Terminal/Tray: 7116-4026/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

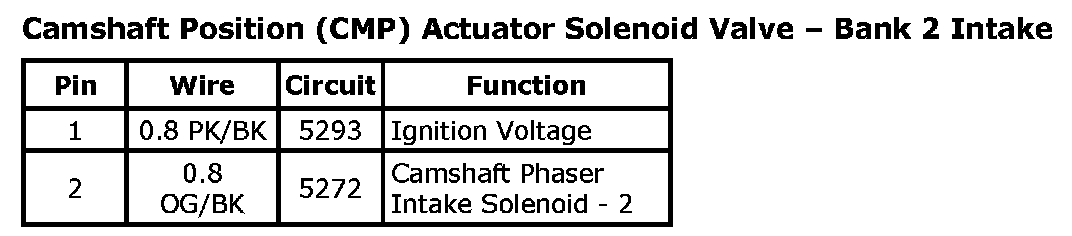

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake:
