Ignition Coil: Diagrams

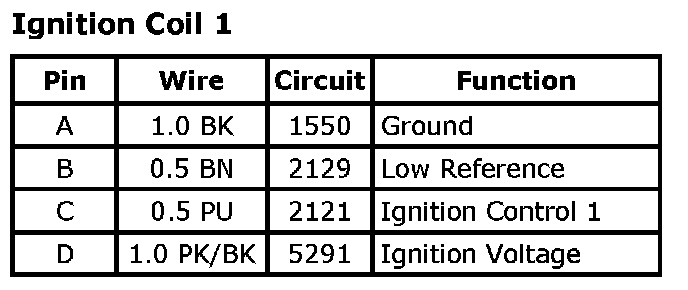

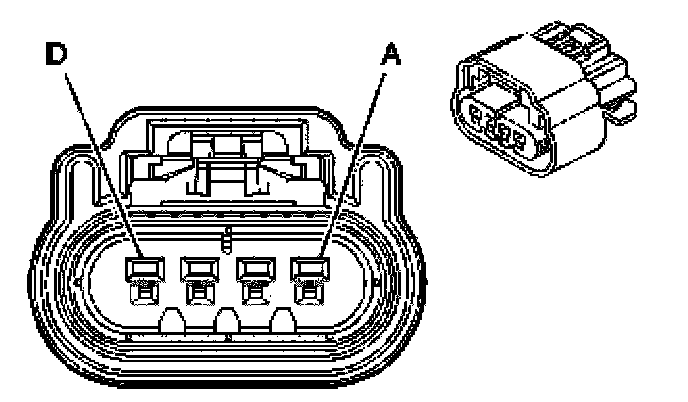

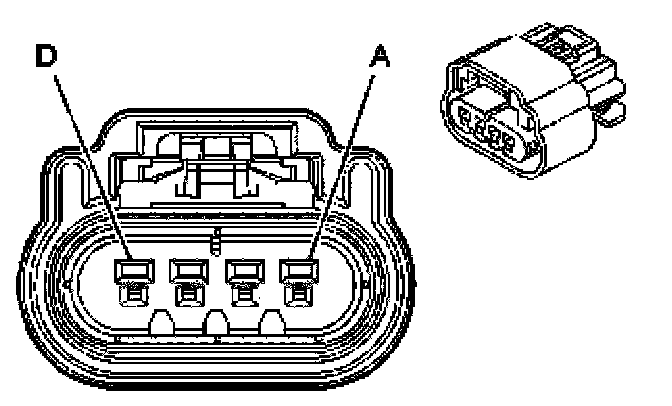

Ignition Coil 1

Ignition Coil 1:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 1:

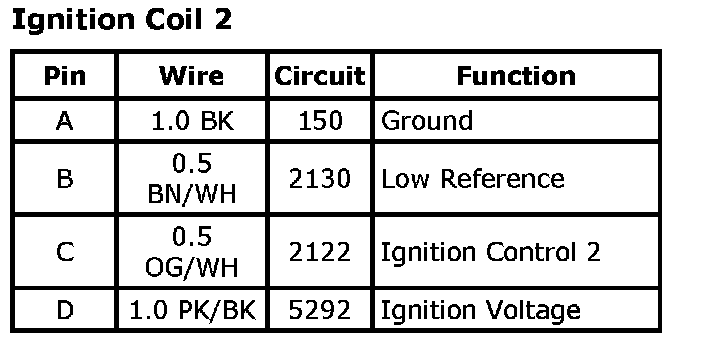

Ignition Coil 2

Ignition Coil 2:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 2:

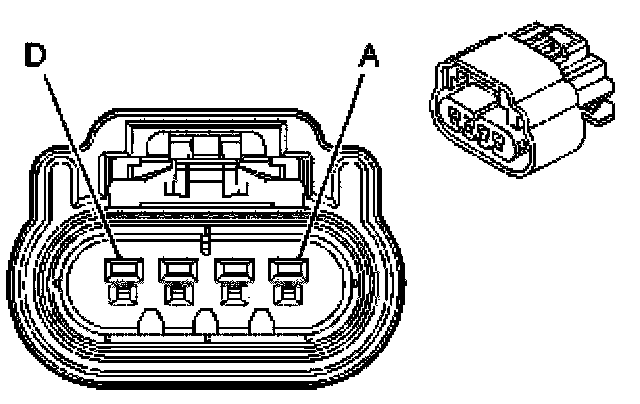

Ignition Coil 3

Ignition Coil 3:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 3:

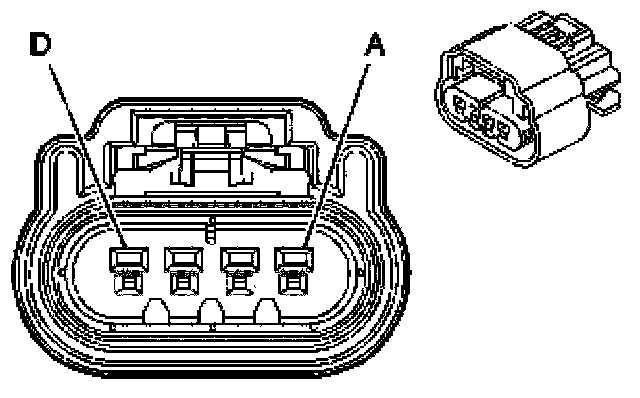

Ignition Coil 4

Ignition Coil 4:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 4:

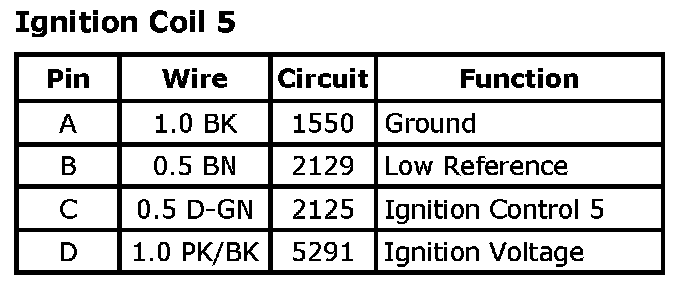

Ignition Coil 5

Ignition Coil 5:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 5:

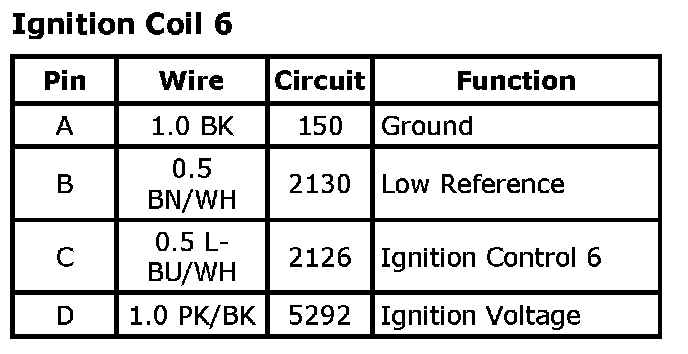

Ignition Coil 6

Ignition Coil 6:

Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)

Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Ignition Coil 6:
