Sunroof / Moonroof Module: Diagrams

Sunroof Control Module X1 (CF5)

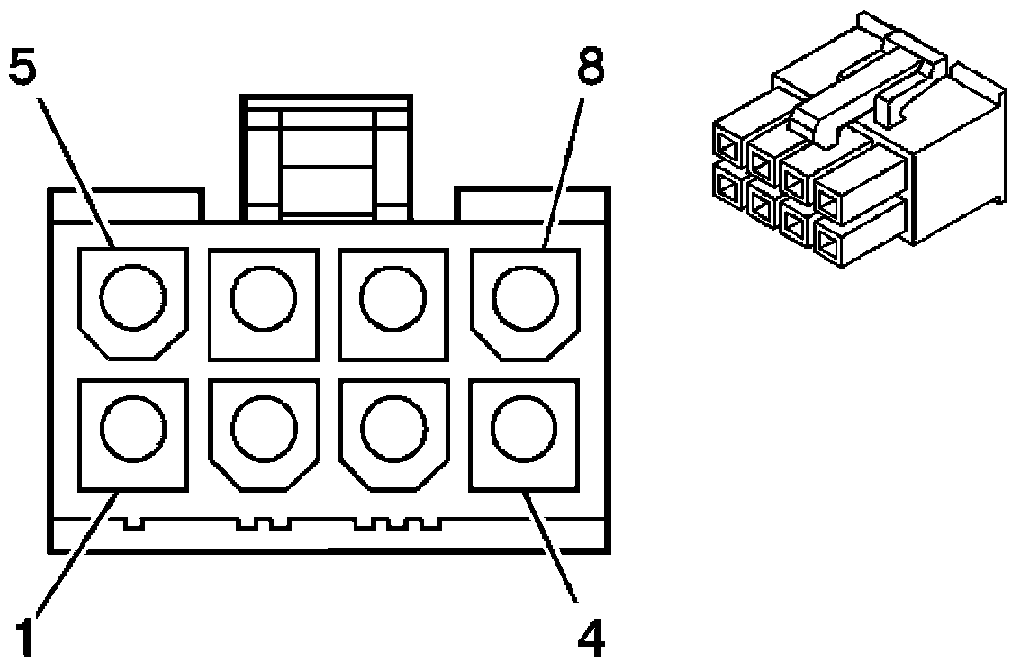

Connector Part Information
OEM: 39-01-2080
Service: See Catalog
Description: 8-Way F Mini-Fit Series (NA)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

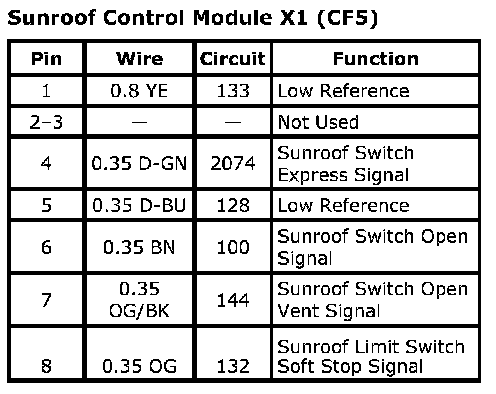

Sunroof Control Module X1 (CF5):






Sunroof Control Module X2 (CF5)

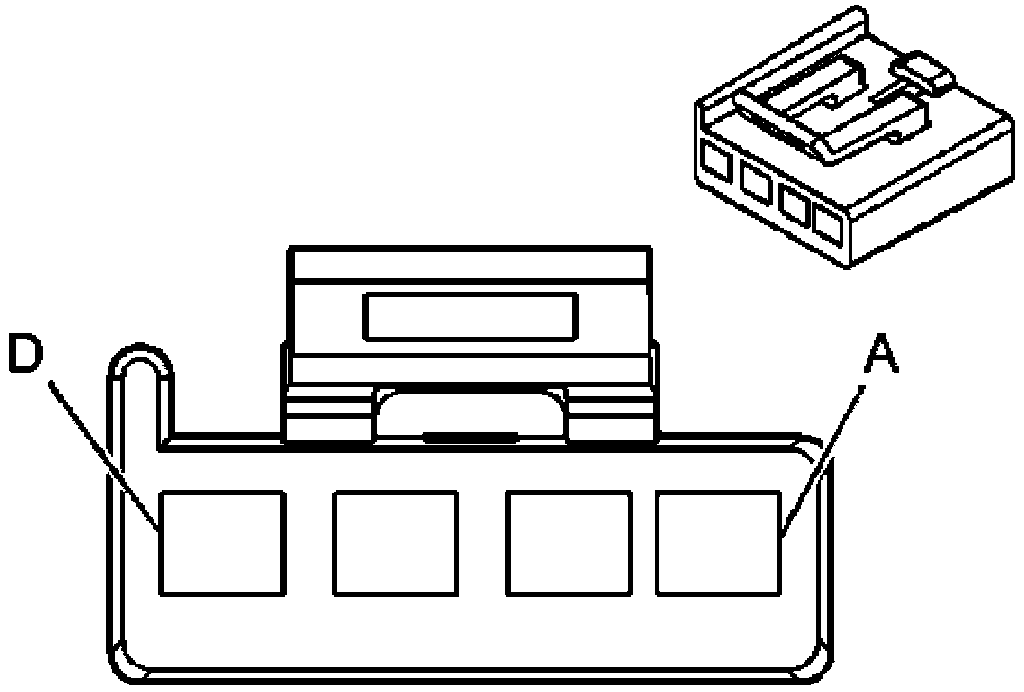

Connector Part Information
OEM: 12052856
Service: 12125636
Description: 4-Way F Metri-Pack 280 Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

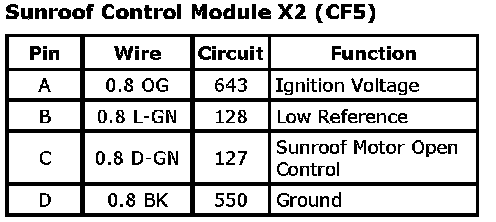

Sunroof Control Module X2 (CF5):
