Strategy Based Diagnosis

Strategy Based Diagnosis

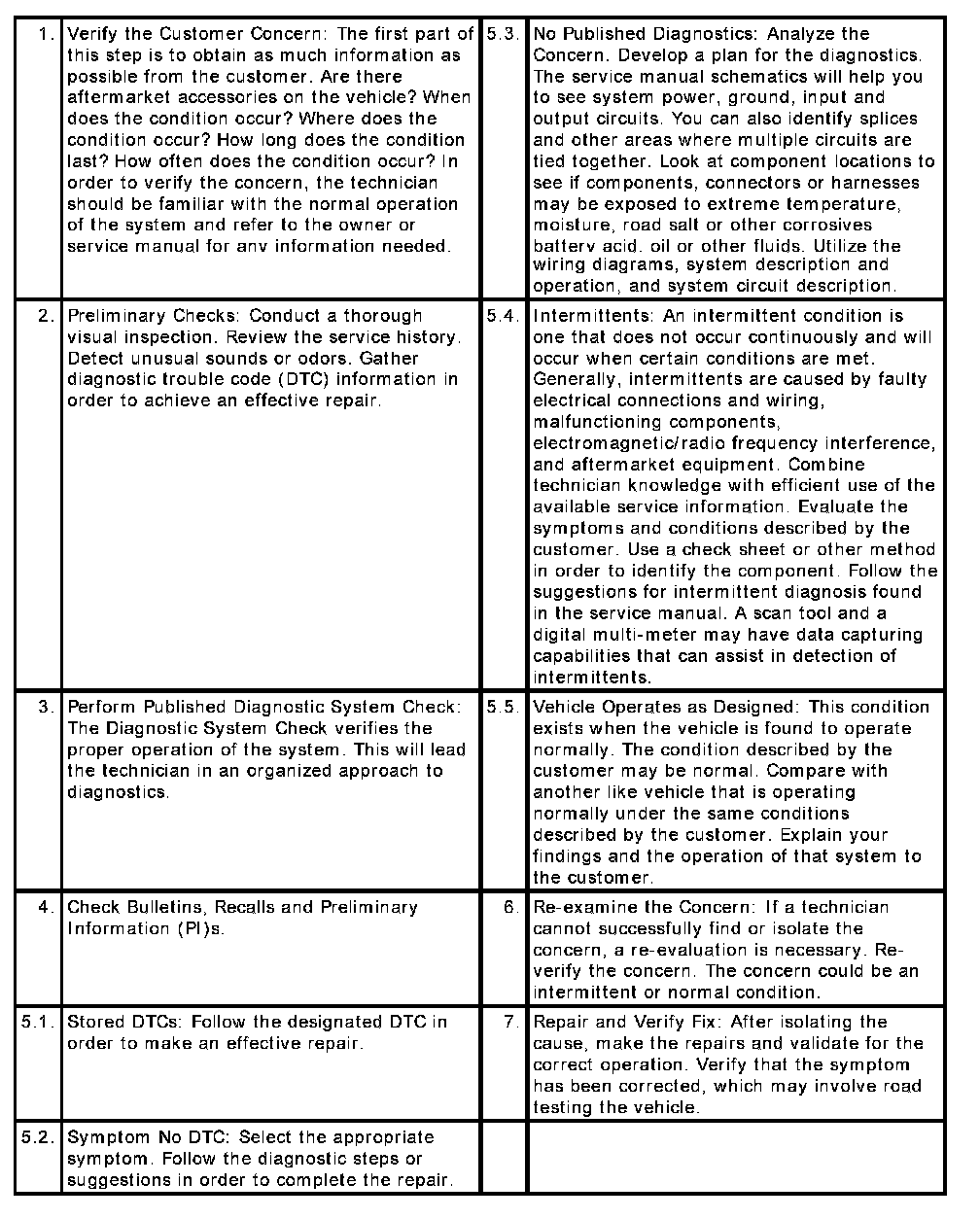

The goal of Strategy Based Diagnostics is to provide guidance when you create a plan of action for each specific diagnostic situation. Following a similar plan for each diagnostic situation, you will achieve maximum efficiency when you diagnose and repair vehicles. Although each of the Strategy Based Diagnostics boxes is numbered, you are not required to complete every box in order to successfully diagnose a customer concern. The first step of your diagnostic process should always be, verify the Customer Concern box. The final step of your diagnostic process should be Repair and verify the Fix box 7. Refer to the given chart for the correct Strategy Based Diagnostics.
