Substitute Special Tool Table

Substitute Special Tool Table

The substitute special tools below are usable instead of the special tools described.

NOTE: "--" indicates the substitute special tool is not available.

Substitute Special Tool Table - Engine:

Engine

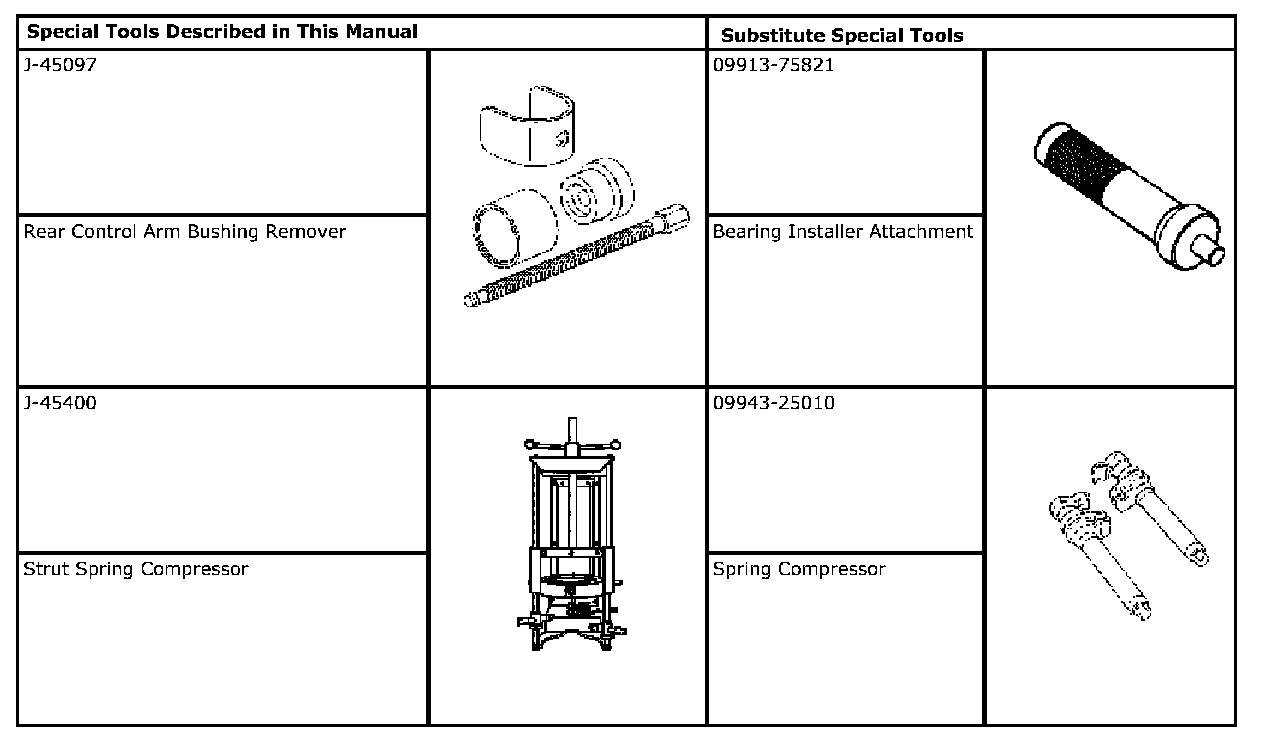

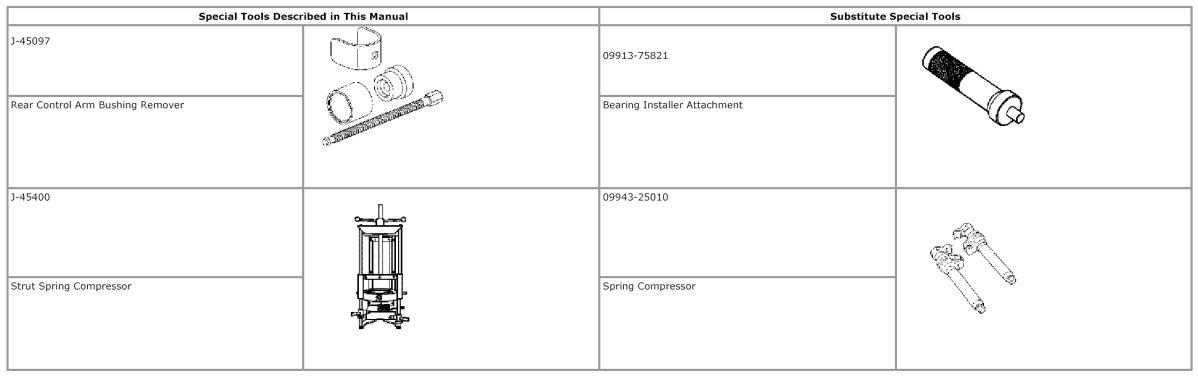

Substitute Special Tool Table - Suspension:

Suspension

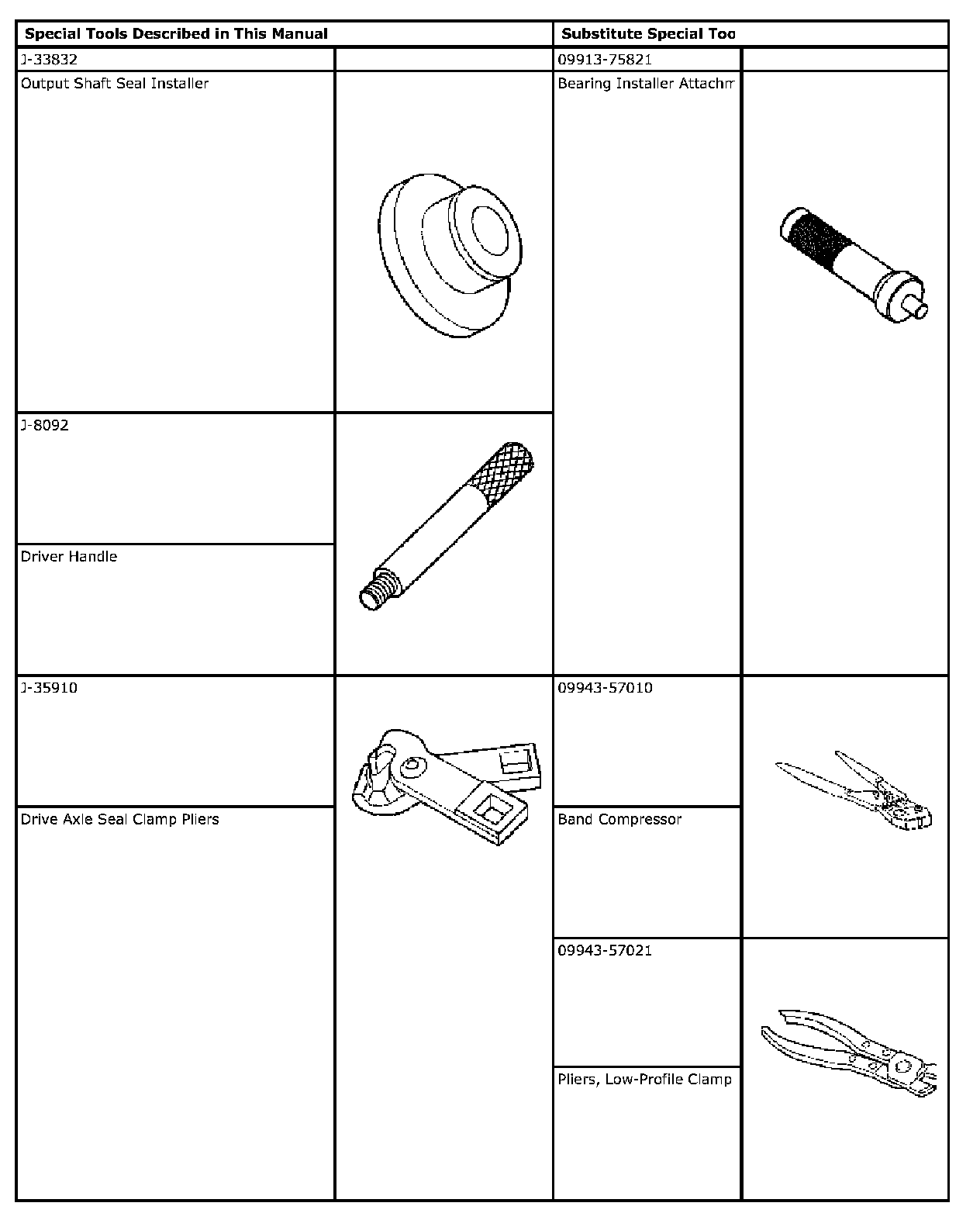

Substitute Special Tool Table - Driveline/Axle:

Driveline/Axle

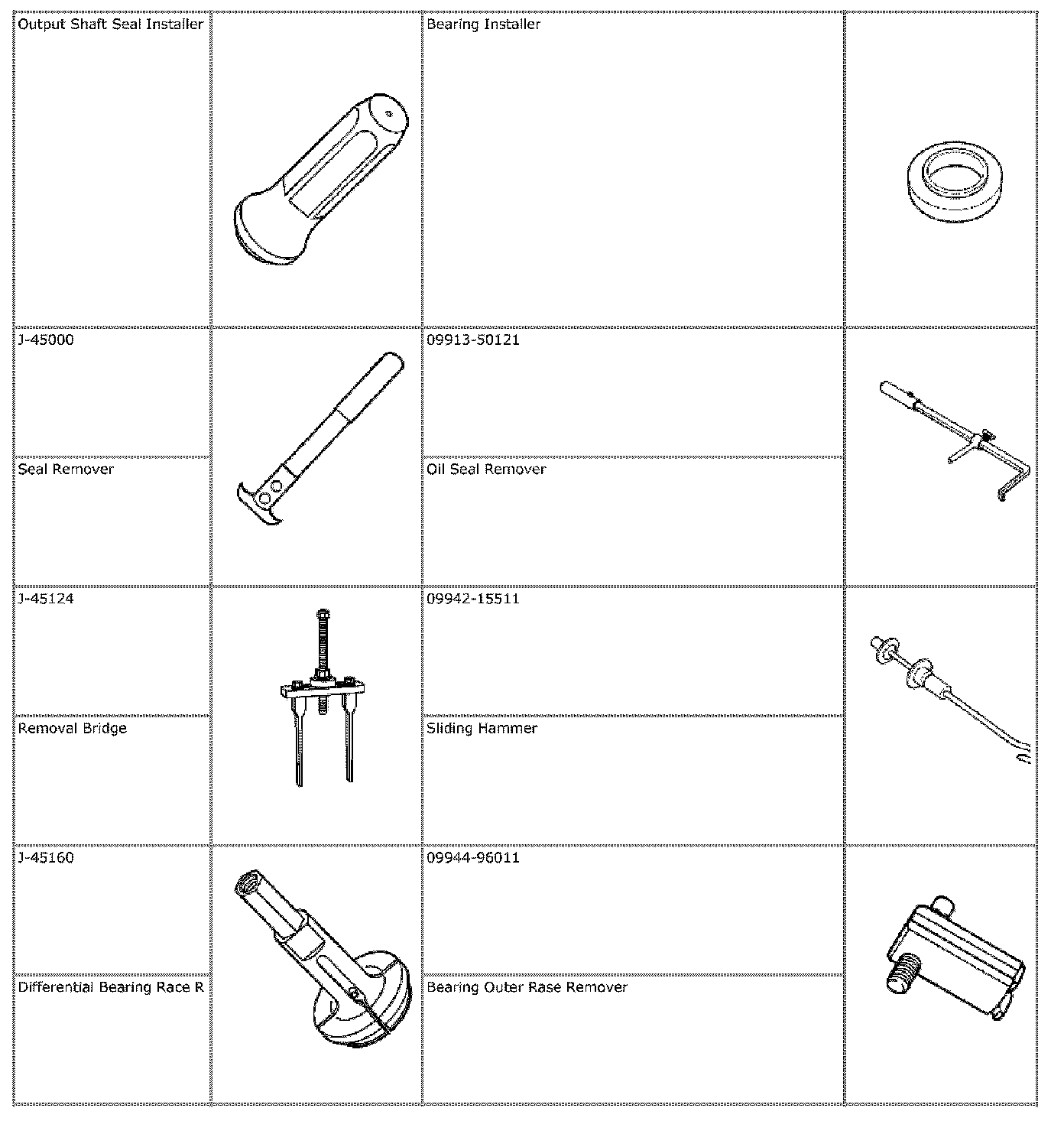

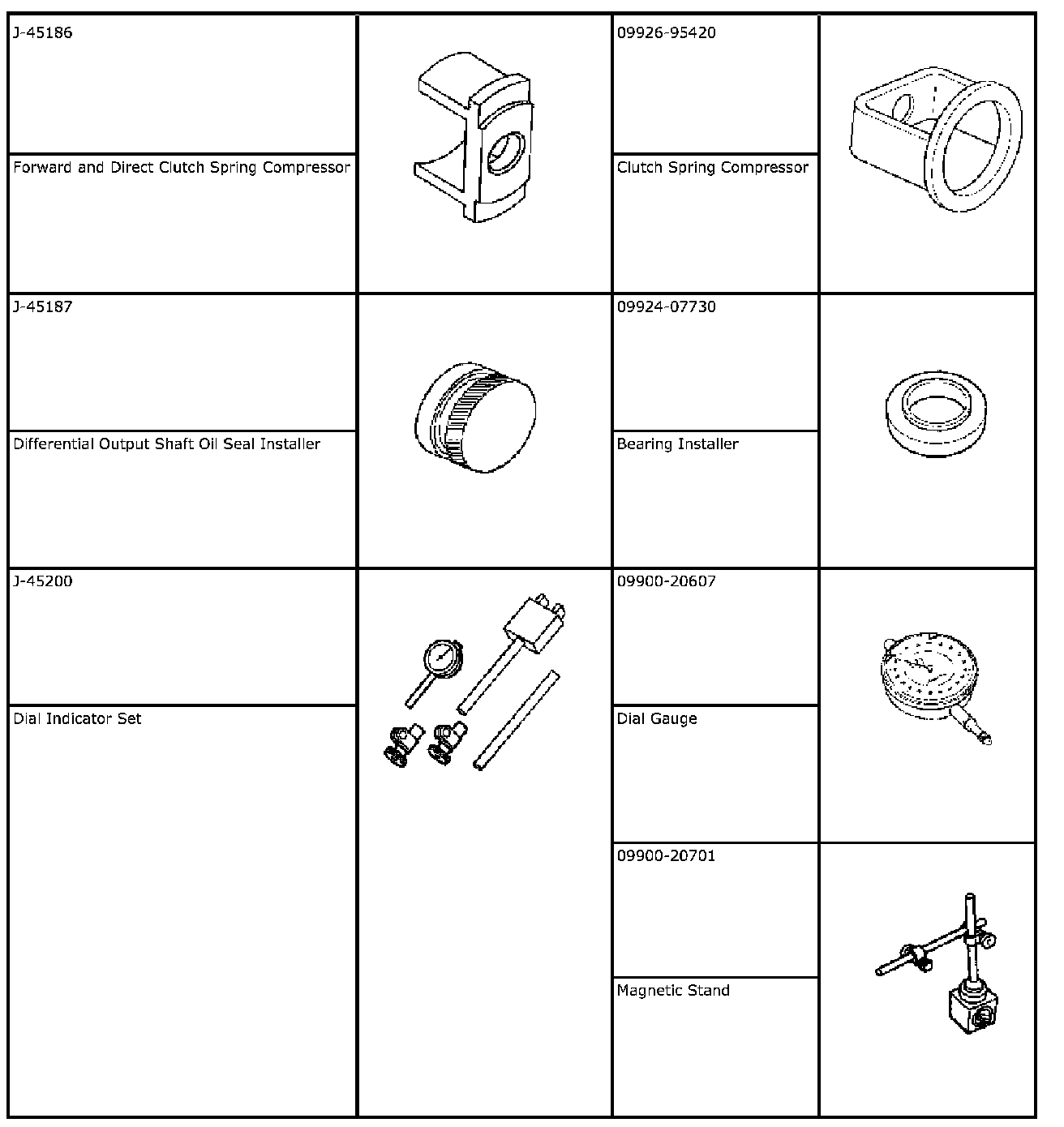

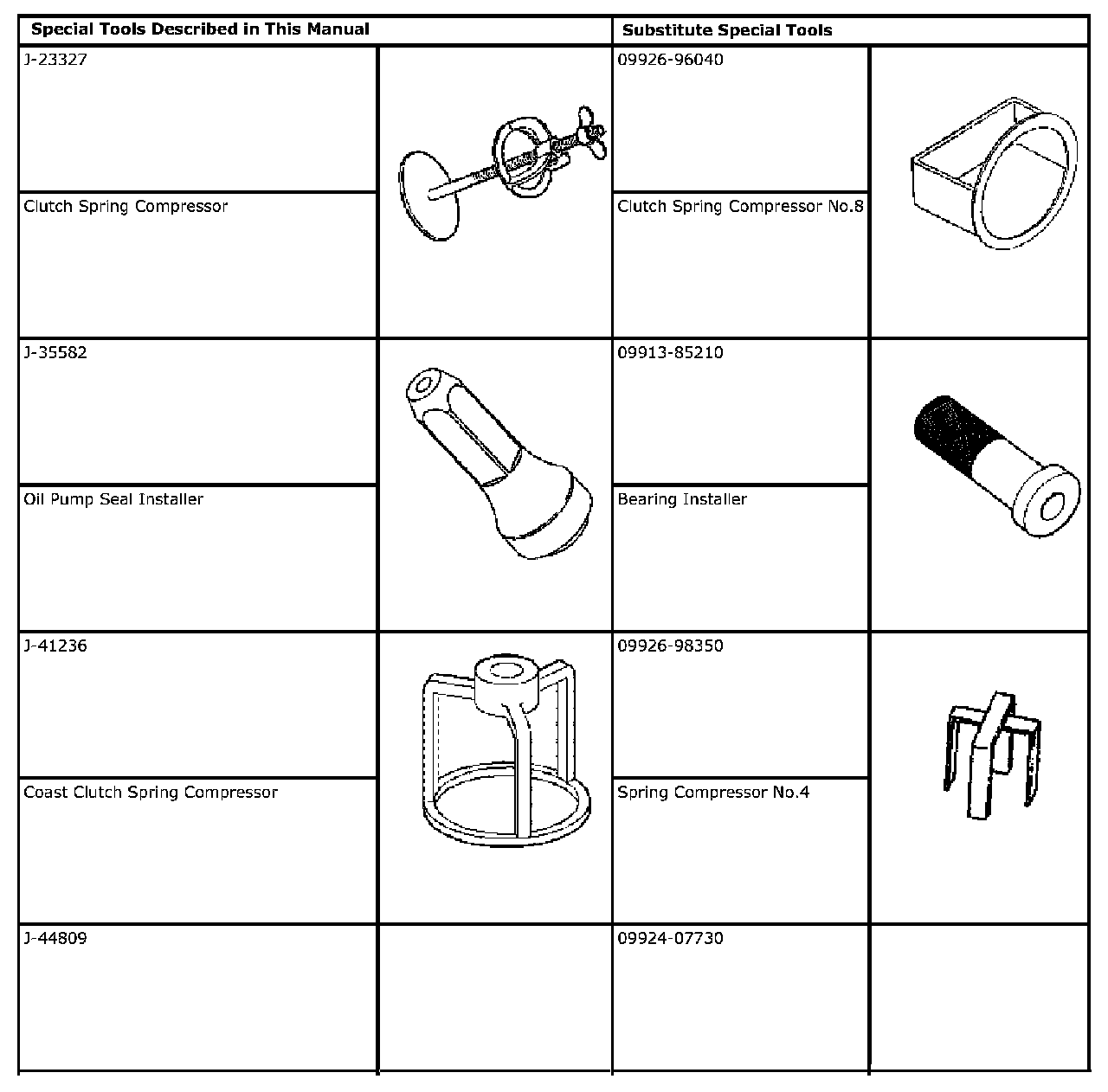

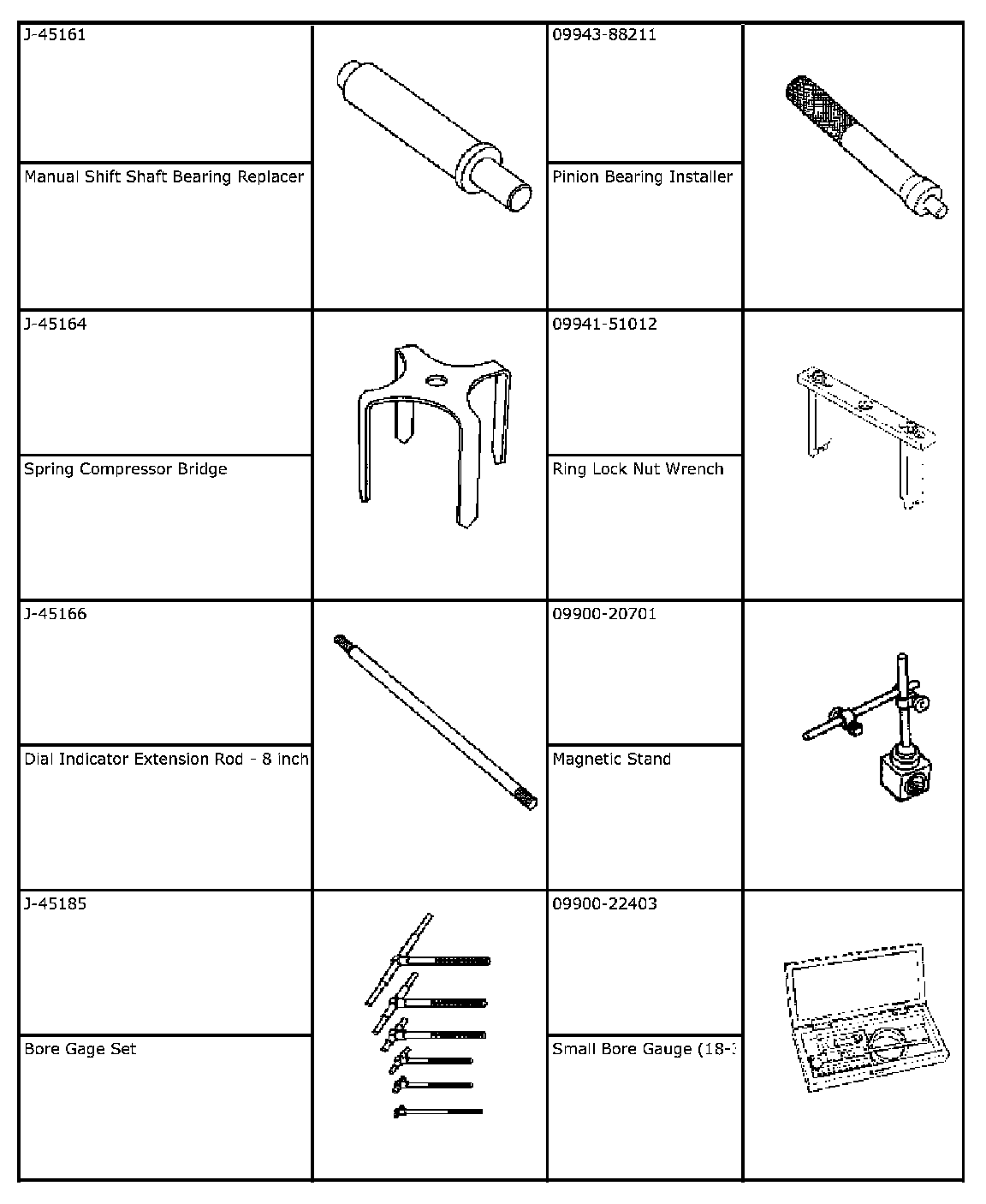

Substitute Special Tool Table - Transmission/Transaxle (Part 1):

Substitute Special Tool Table - Transmission/Transaxle (Part 2):

Substitute Special Tool Table - Transmission/Transaxle (Part 3):

Substitute Special Tool Table - Transmission/Transaxle (Part 4):

Transmission/Transaxle

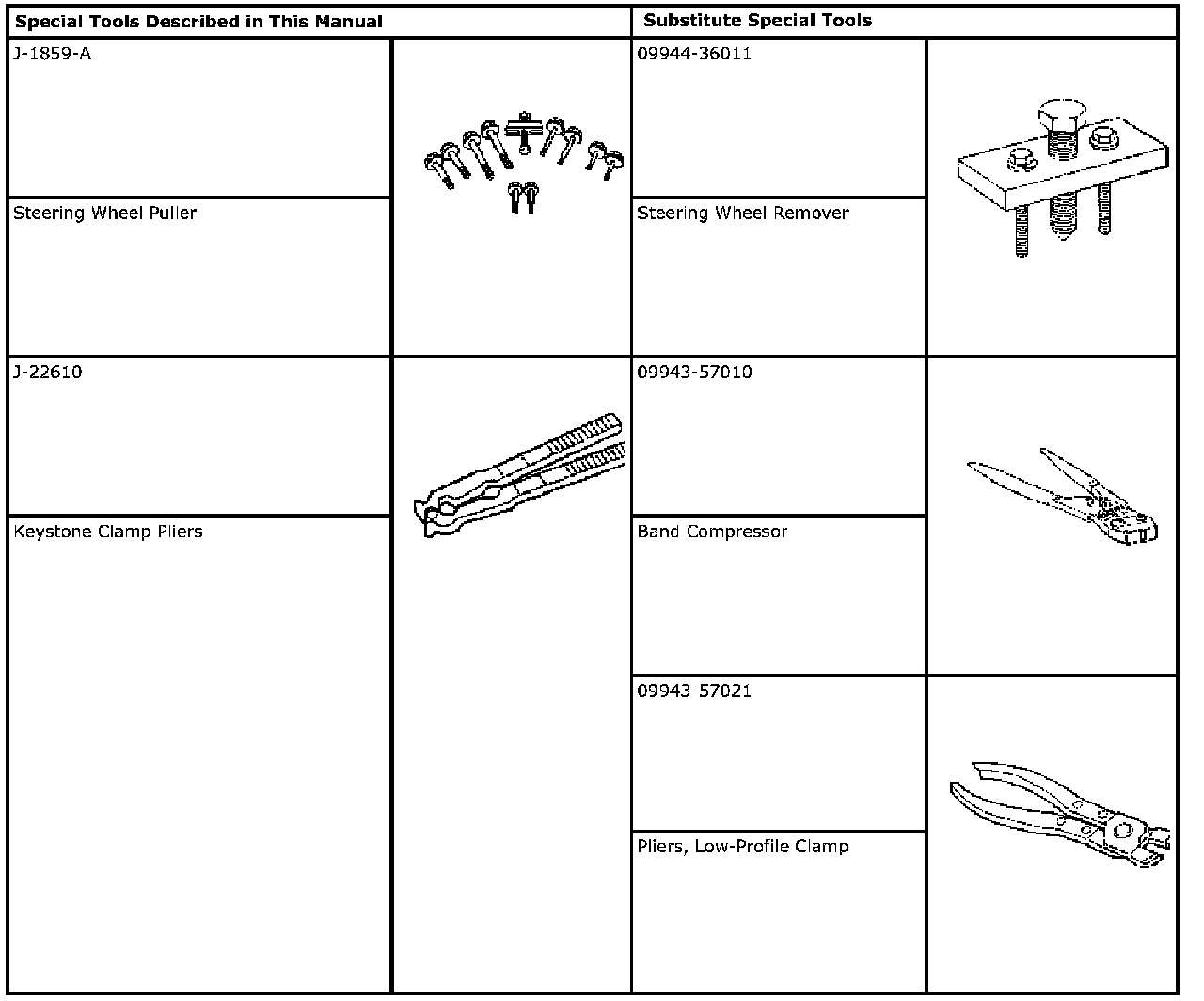

Substitute Special Tool Table - Steering:

Steering

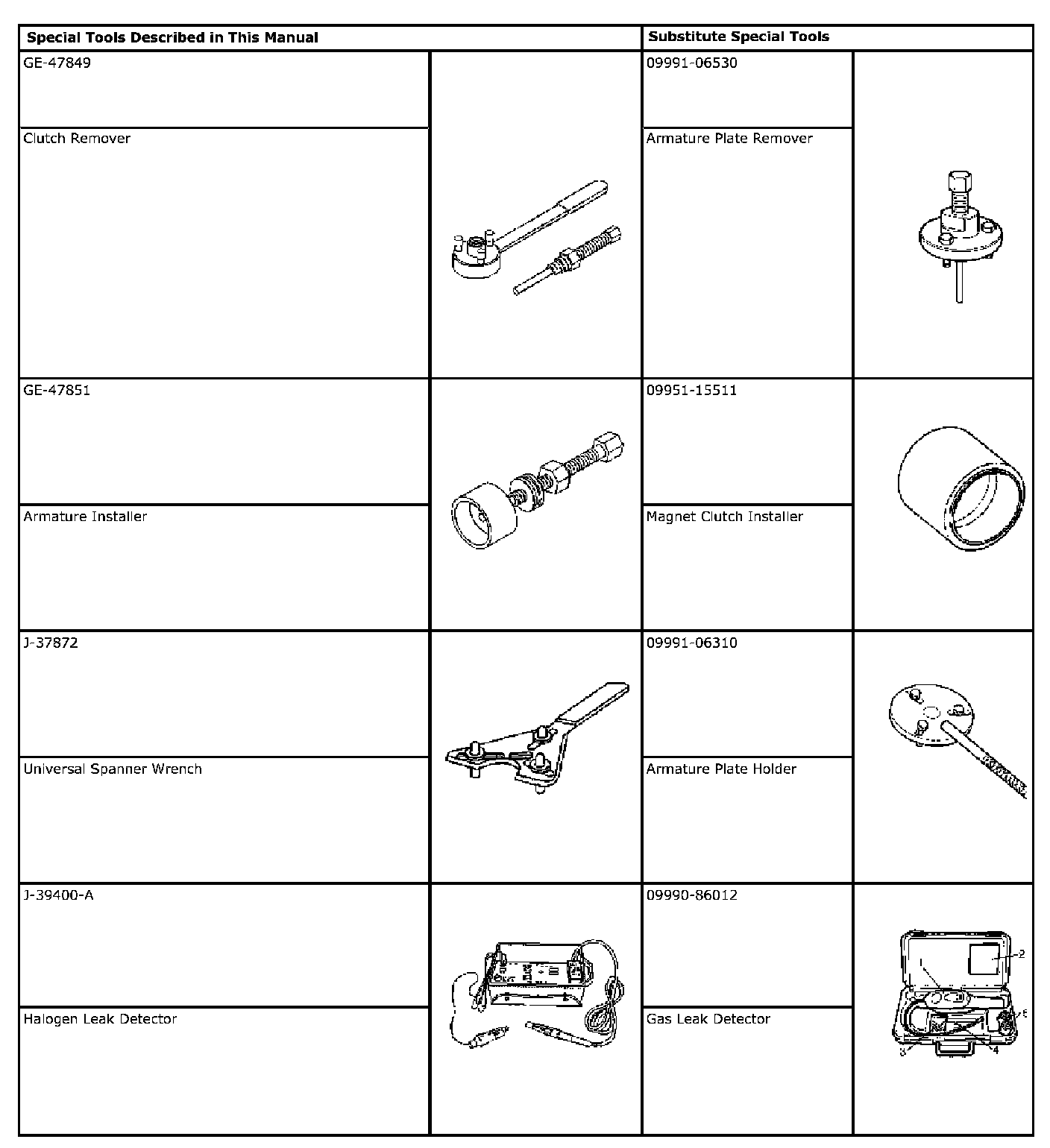

Substitute Special Tool Table - HVAC:

HVAC
