Rear Door Window Motor: Service and Repair

Rear Side Door Window Regulator Motor Replacement

Removal Procedure
1. Remove the rear door trim panel.
2. Remove the water deflector.
3. Disconnect the electrical connector from the rear door window regulator motor.

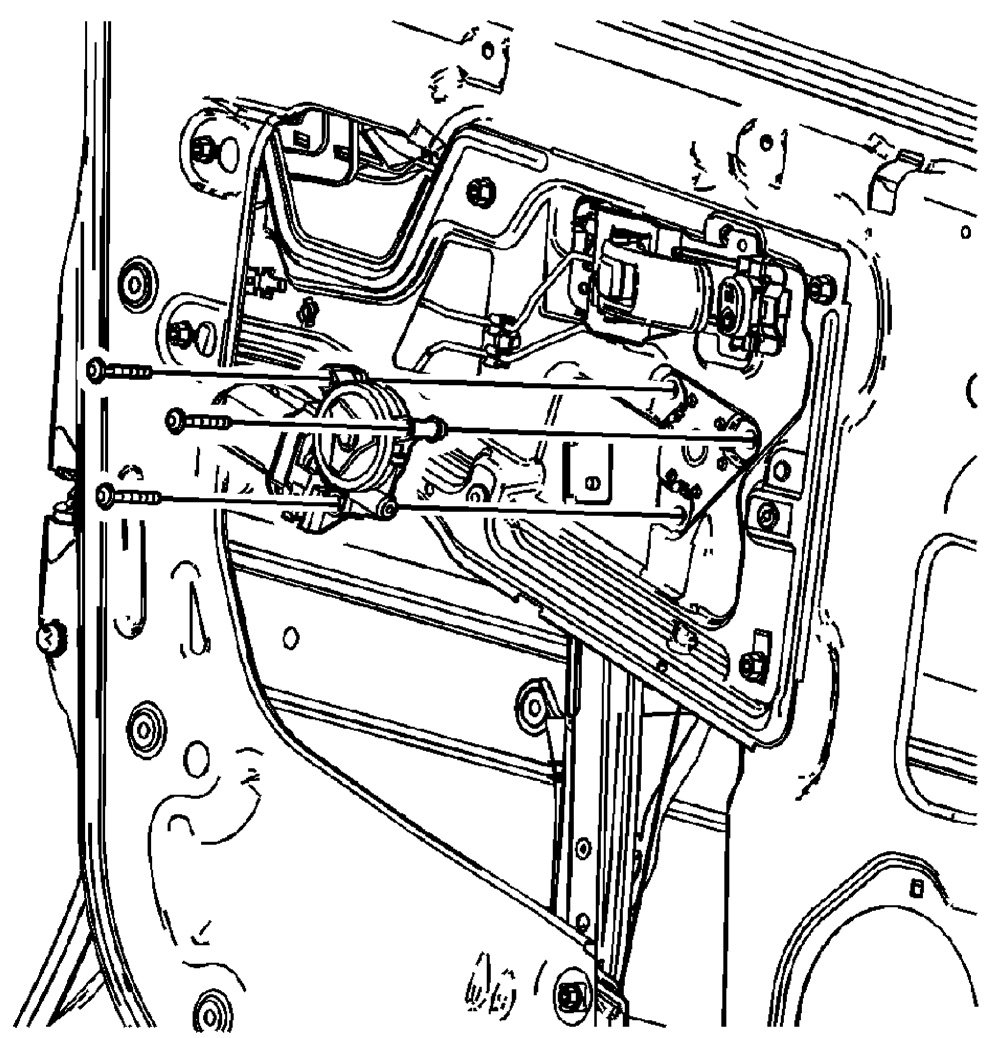

4. Remove the rear door window regulator motor to regulator screws.
5. Remove the rear door window regulator motor assembly.

Installation Procedure






1. Align the rear door window regulator motor assembly to the rear door window regulator.

CAUTION: Refer to [Fastener Notice] in Cautions and Notices.

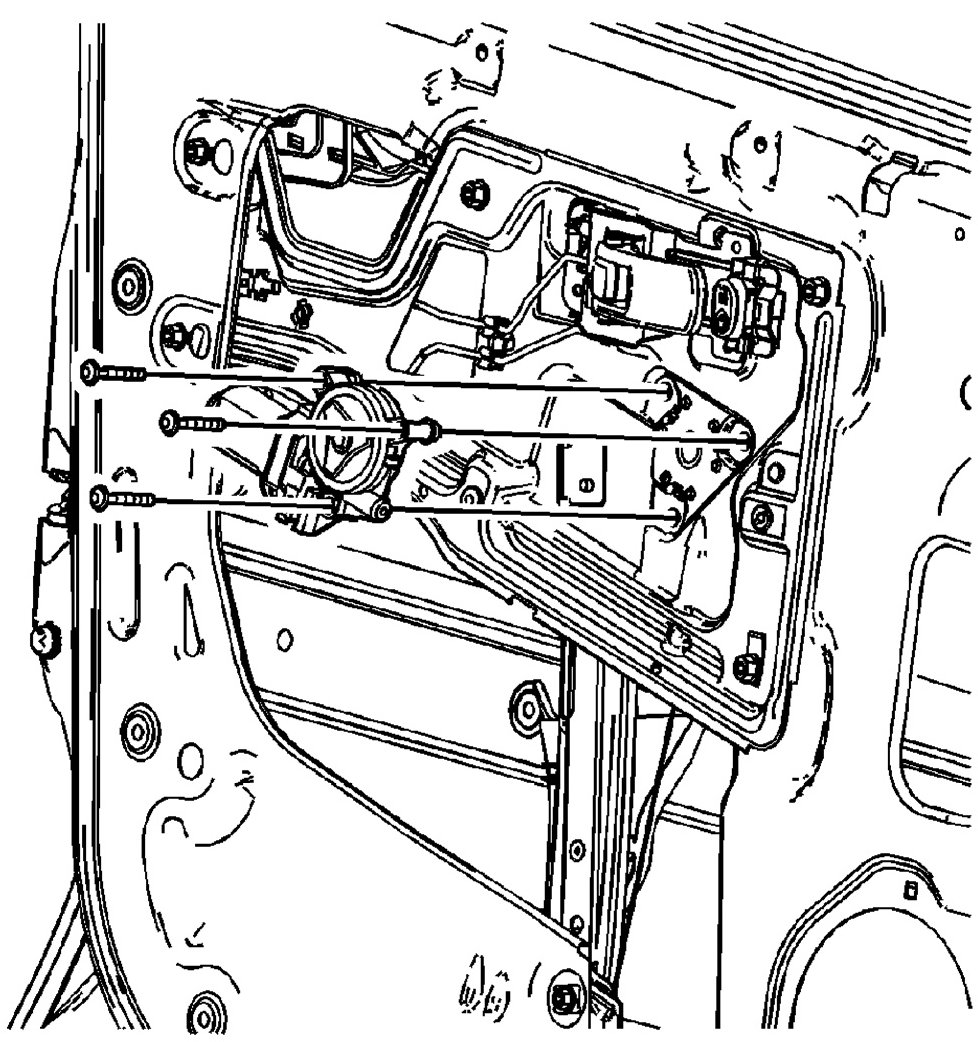

2. Install the rear door window regulator motor to regulator screws.

Tightening torque
Tighten the rear door window regulator motor to regulator screws to 8 N.m (71 lb.in).

3. Connect the electrical connector to the rear door window regulator motor.
4. Install the water deflector.
5. Install the rear door trim panel.
