Front Door Window Glass: Service and Repair

Front Side Door Window Replacement

Removal Procedure
1. Remove the inner front door trim panel.
2. Remove the front door water deflector.

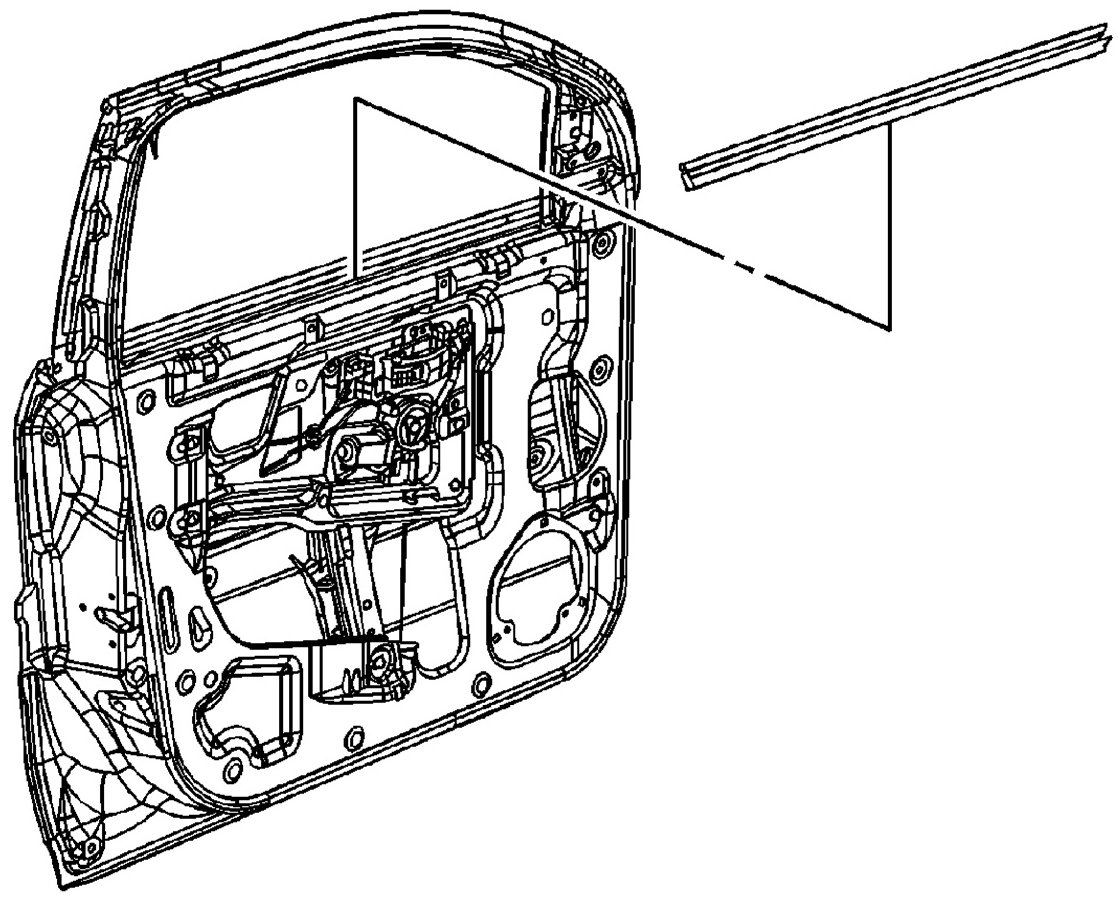

3. Remove the inner belt seal.
4. Lower window to access window release tab.






5. Depress the window release tab with a flat-bladed tool.
6. Pull the window out of the window regulator guide plate.
7. Slide the window down and out of the primary window run channels.
8. Remove the window by tilting outboard and pulling the window out of the door.

Installation Procedure
1. Install the window by sliding the window into the door through the outside.
2. Install the window into the primary window run channels and position into the regulator guide plate.

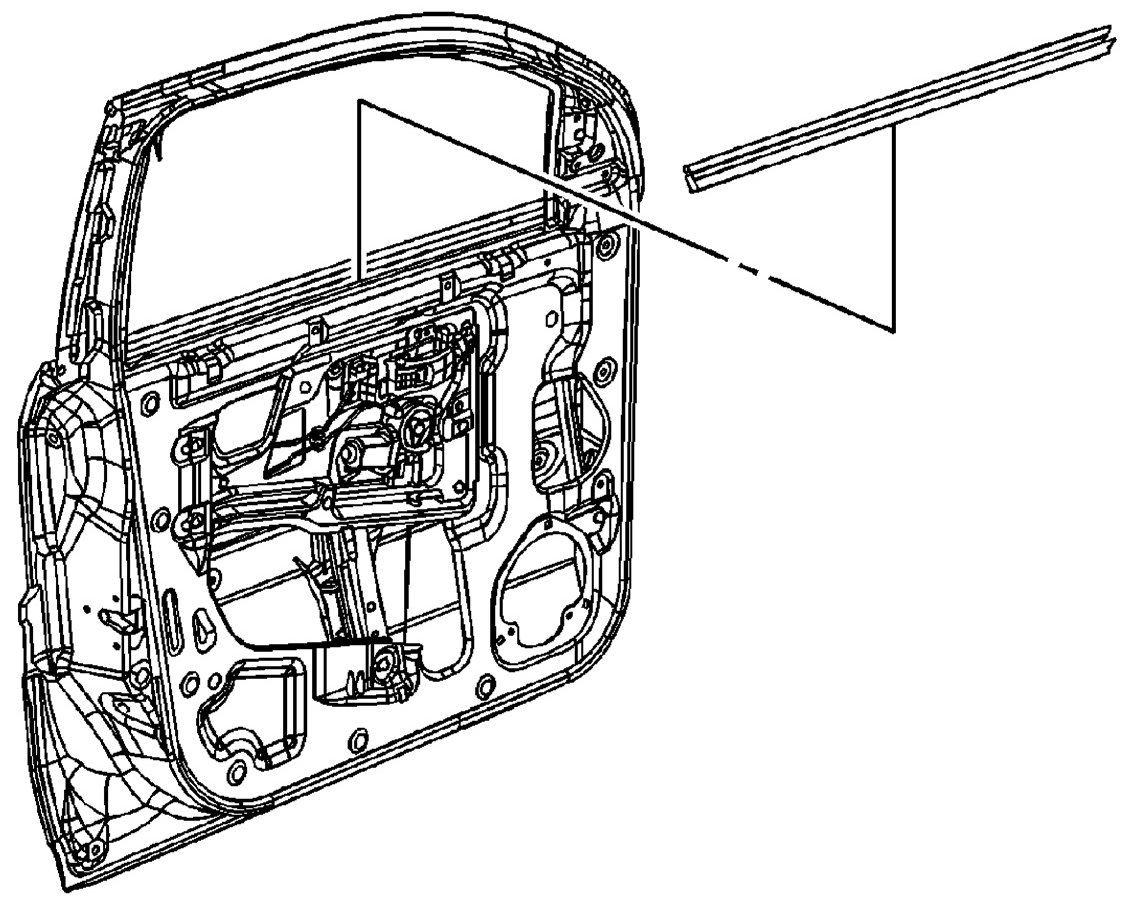

3. Install the inner belt seal.
4. Install the front door water deflector.
5. Install the front inner door trim panel.
6. Operate the window to inspect the operation.
