DTC No. Index: TCM
DTC No. Index: TCM NOTE: If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000.

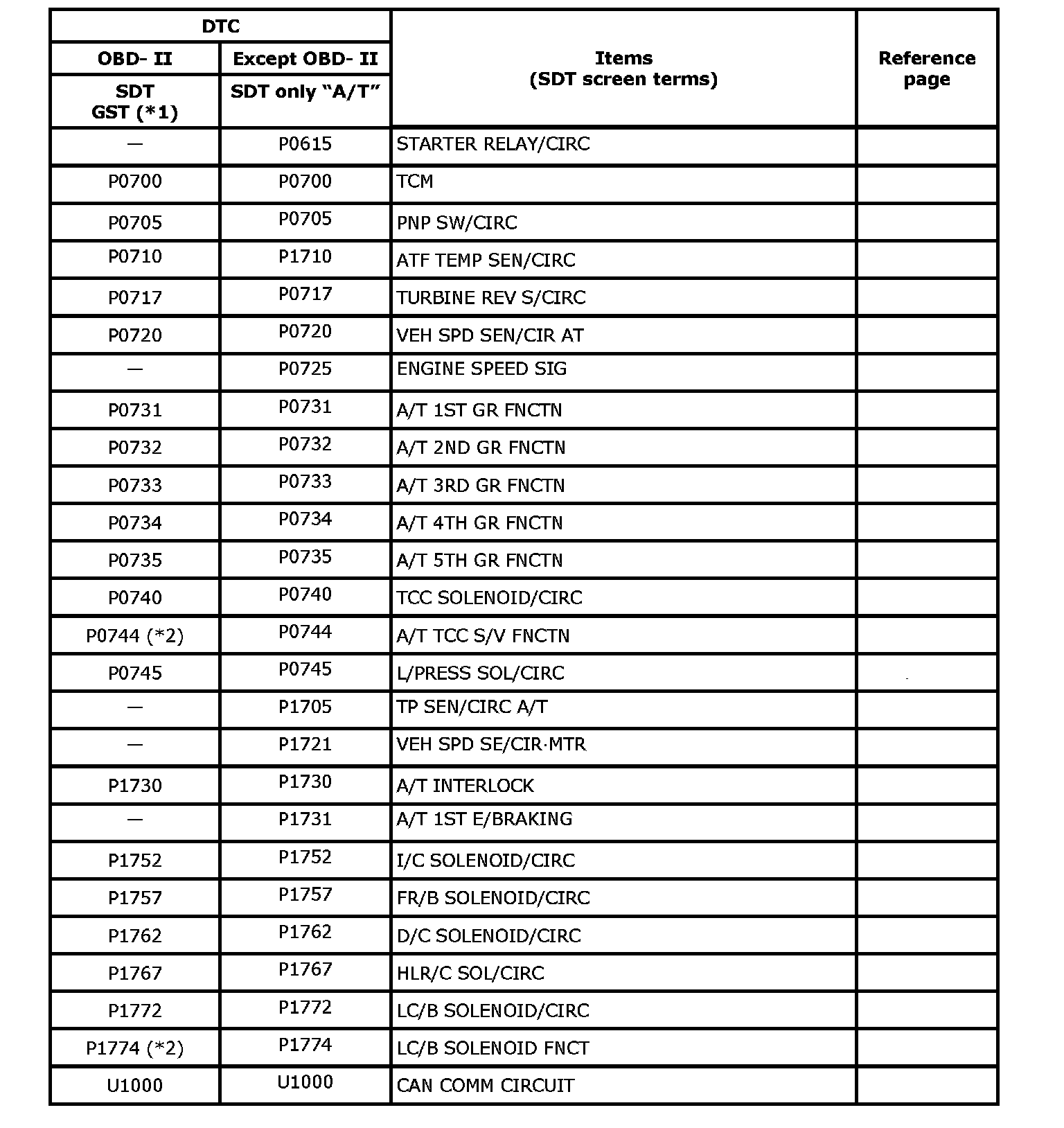

DTC P0700-P1774/U1000:
*1: These numbers are prescribed by SAE J2012.
*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.
