Vehicle Security Indicator Circuit Check

Vehicle Security Indicator Circuit Check

Description
- Vehicle security indicator is built in combination meter.
- Immobilizer system and vehicle security system conditions are indicated by blink or illumination of vehicle security indicator.

Component Function Check

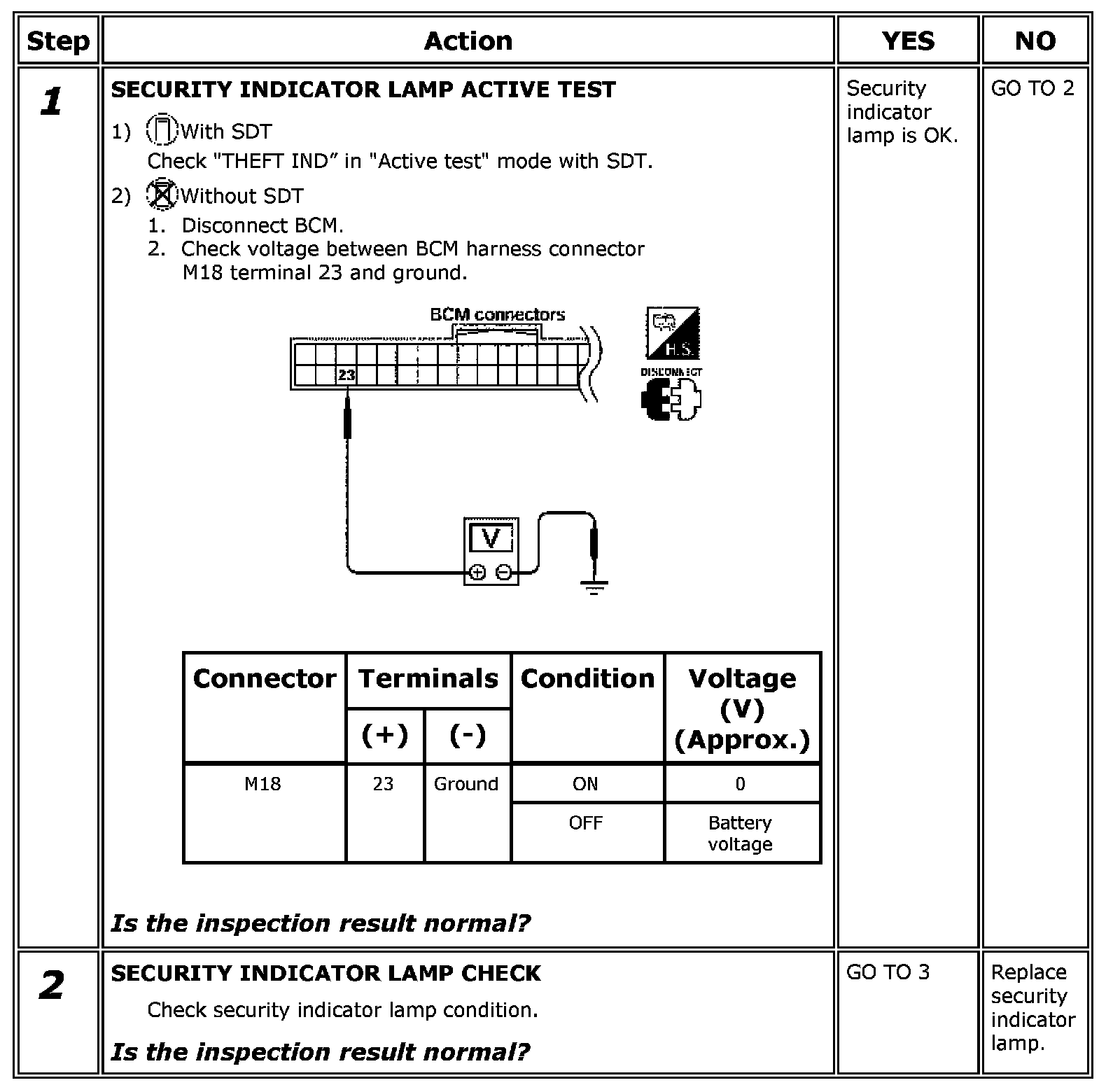

Step 1:






Diagnosis Procedure

Step 1-2:

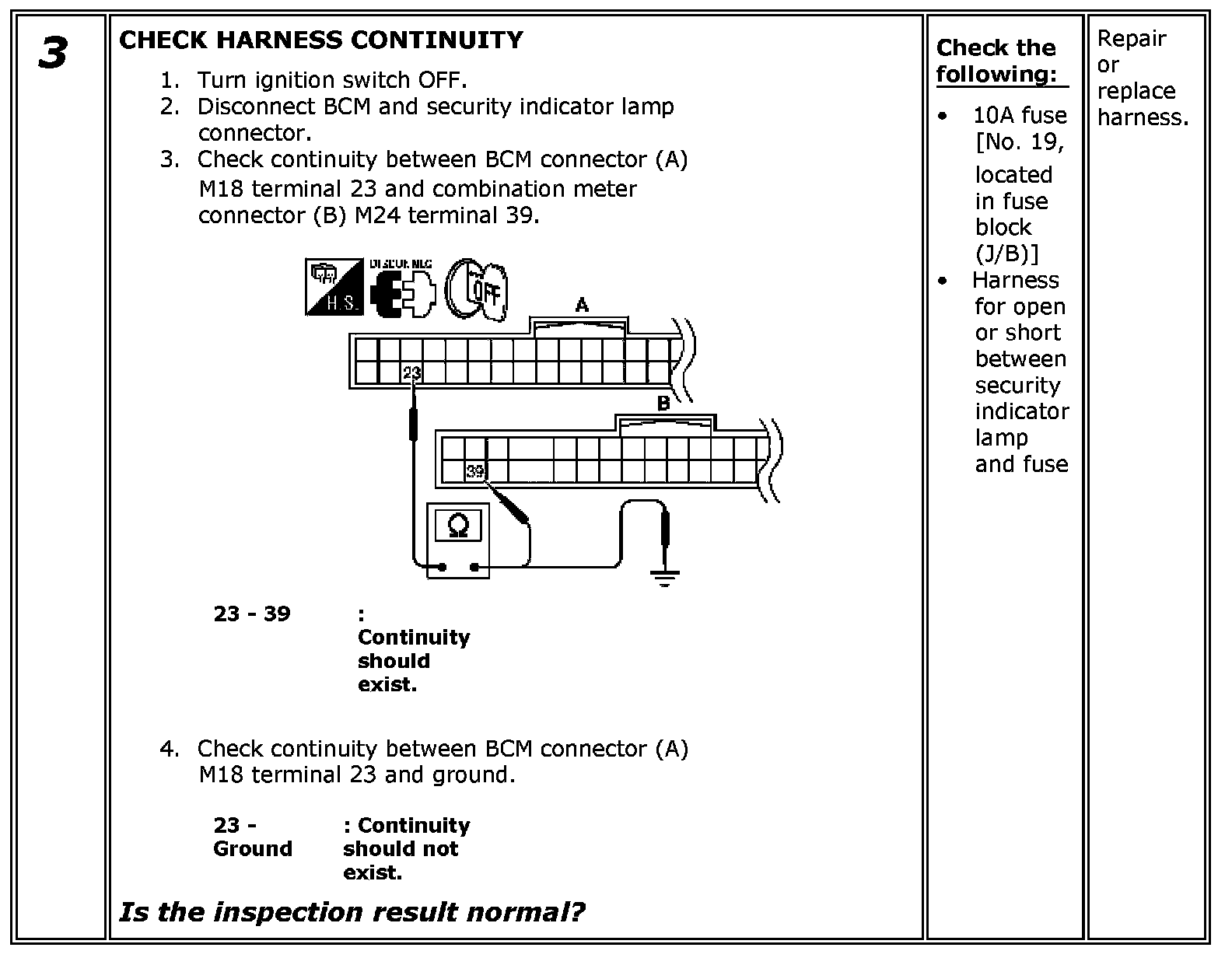

Step 3:
