Garage Door Opener Transmitter: Testing and Inspection

Homelink Universal Transceiver Circuit Check

Description

Homelink universal transceiver can store and transmit a maximum of 3 radio signals.
Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.
Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program in case battery is discharged or removed.

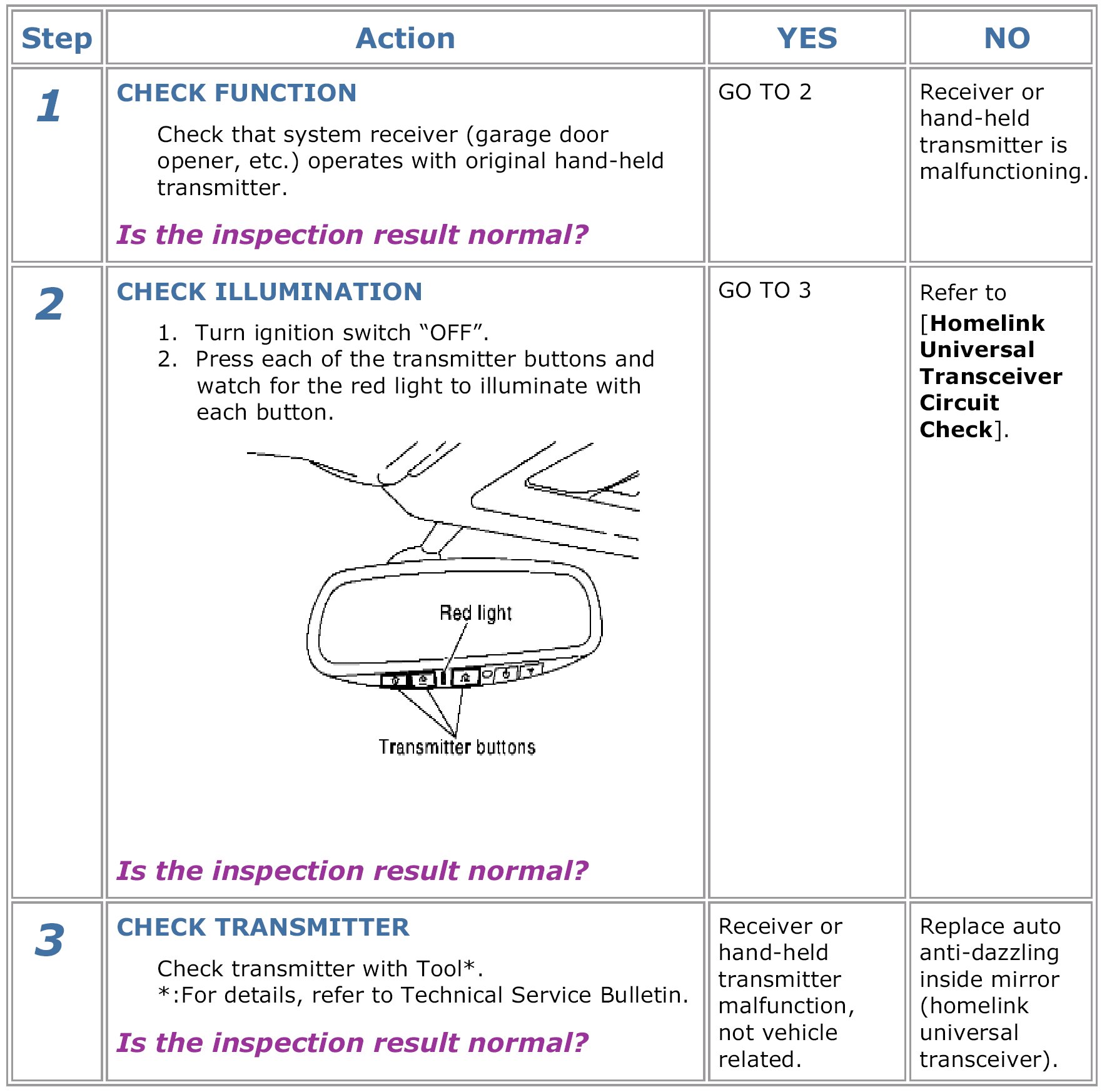

Component Function Check

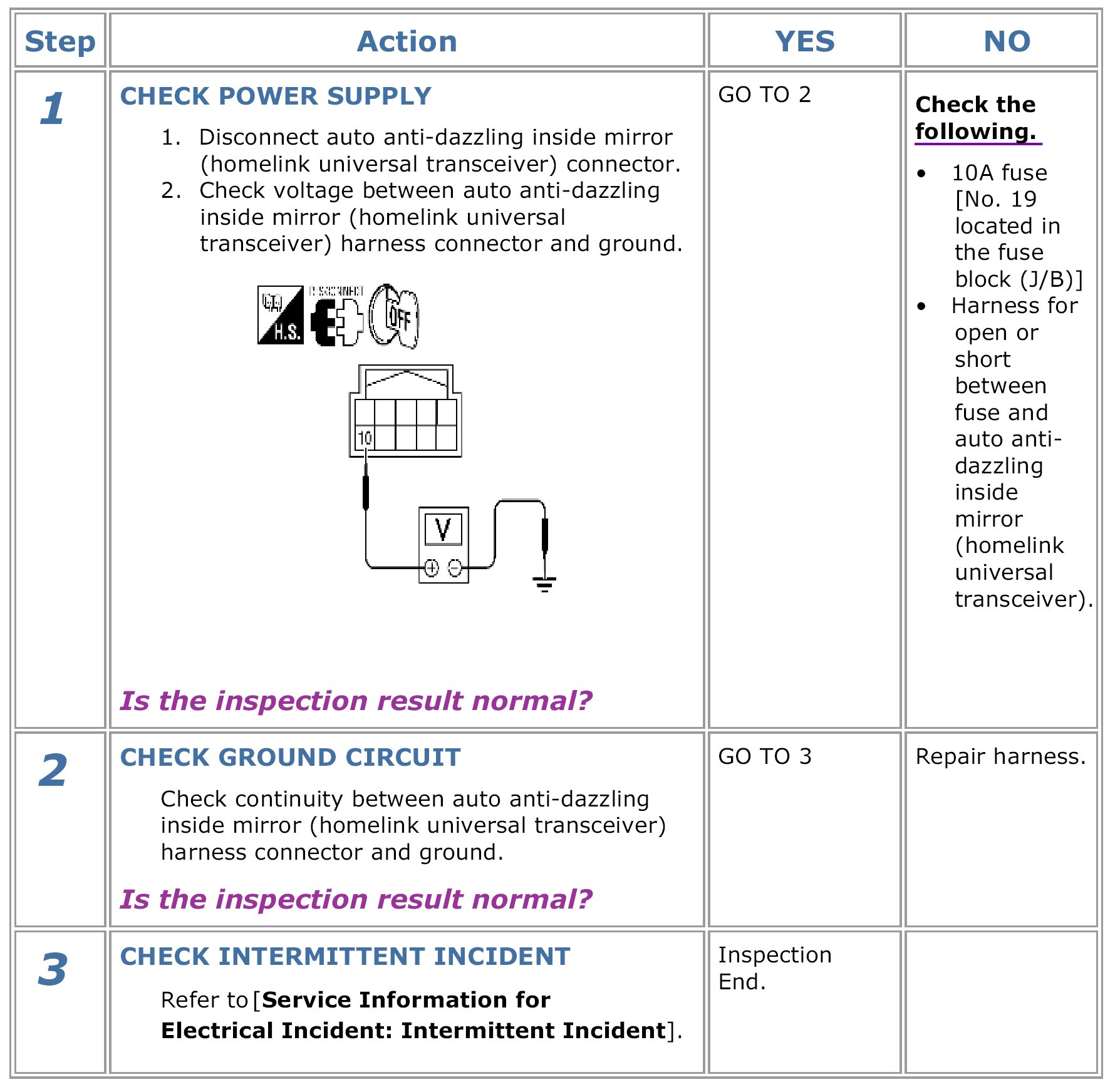

Diagnosis Procedure
