Base Audio
Audio Unit: Removal And InstallationREMOVAL 1.
Remove the cluster lid C. Refer to [Instrument Panel Assembly: Removal and Installation].
2.

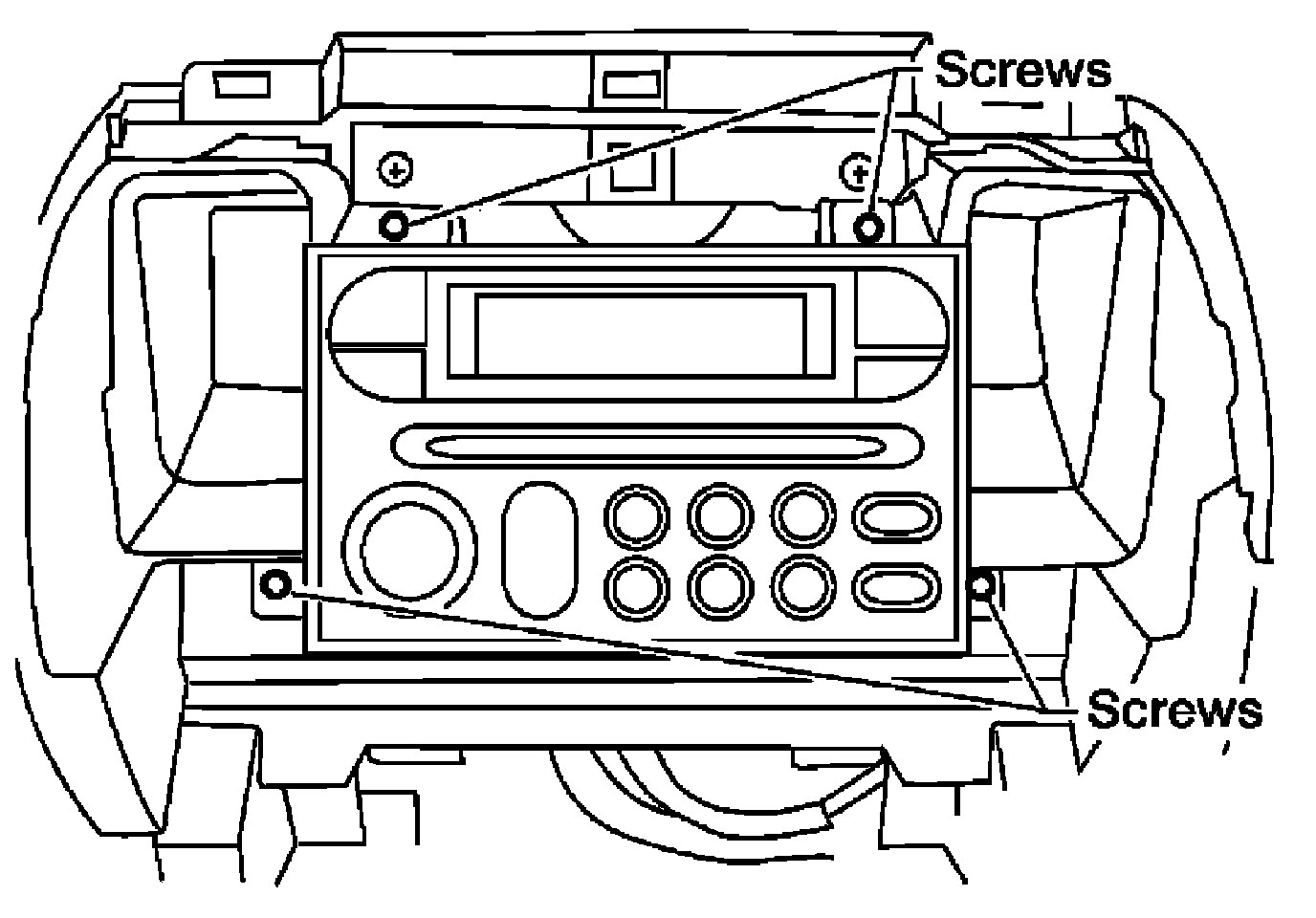

Remove the audio control unit screws, using power tool.
3.
Pull out the audio control unit from the instrument panel and disconnect the audio control unit connectors.
INSTALLATIONInstallation is in the reverse order of removal.
