Rear Bumper: Service and Repair

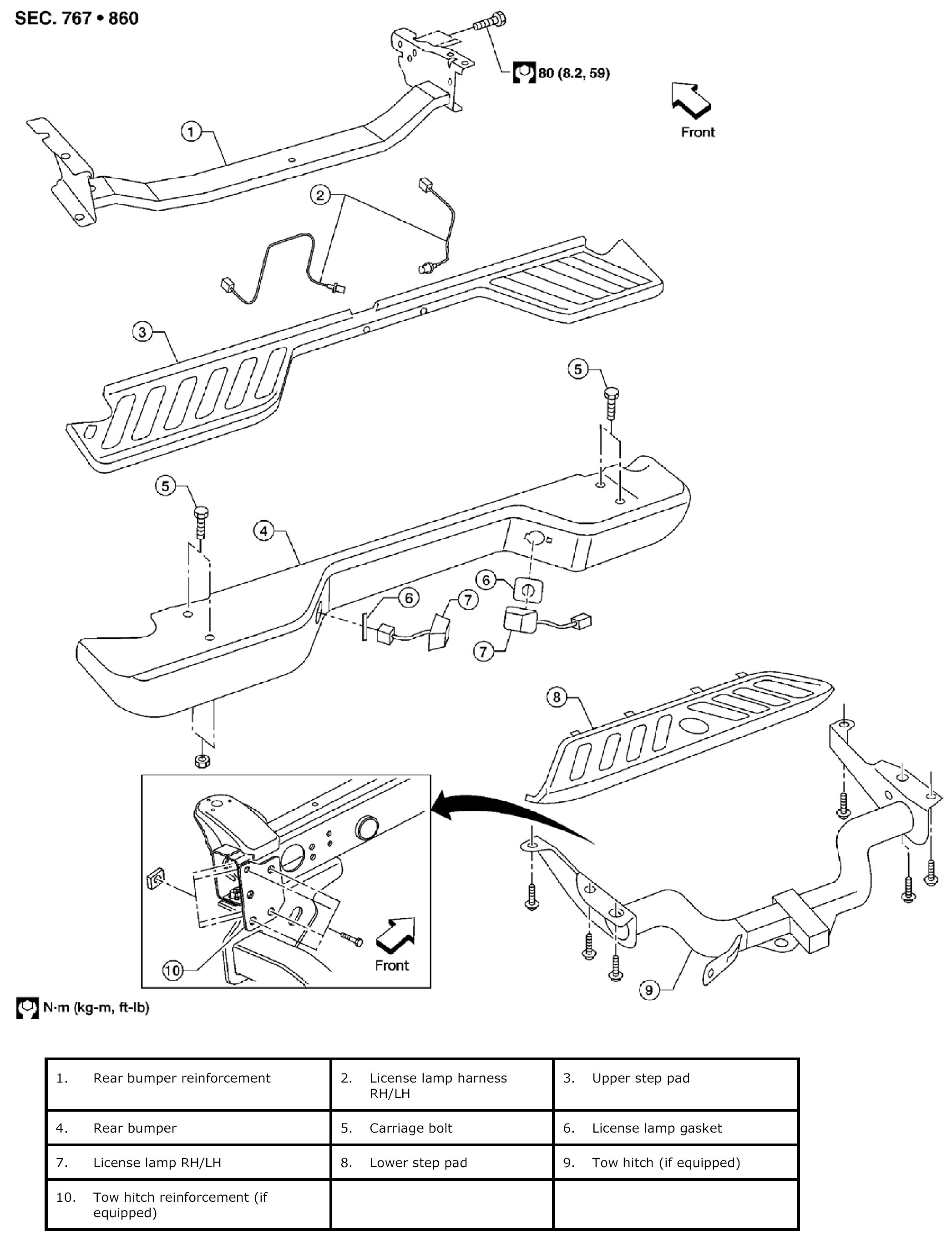

Rear Bumper: Removal And Installation







REMOVAL

NOTE: It is not necessary to remove the tow hitch (if equipped) to service the rear bumper.

1. Remove upper and lower step pads.
2. Disconnect license lamp harness RH/LH.
3. Release clips from license lamp RH/LH, then remove lamps from rear bumper.
4. Remove rear bumper.
5. Remove rear bumper reinforcement from frame.
6. Remove tow hitch (if equipped).

INSTALLATION

Installation is in the reverse order of removal.
