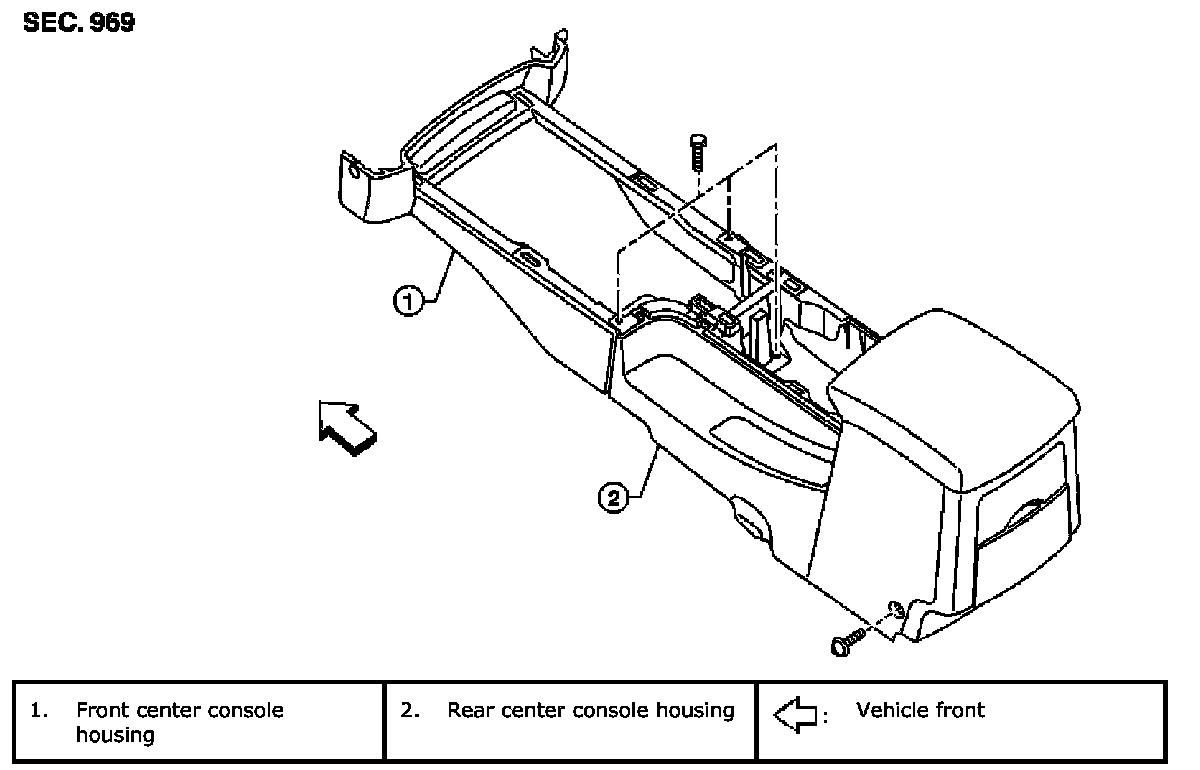

Center Console
CENTER CONSOLERemoval 1.
Remove lower instrument panel RH. Refer to [Instrument Panel Assembly: Removal and Installation].
2.
Remove cup holder finisher.
3.
Remove A/T or M/T finisher. Refer to [Instrument Panel Assembly: Removal and Installation].
4.
Remove center console screws.
5.
Disconnect harness connectors, then remove center console.
InstallationInstallation is in the reverse order of removal.
