Overhaul

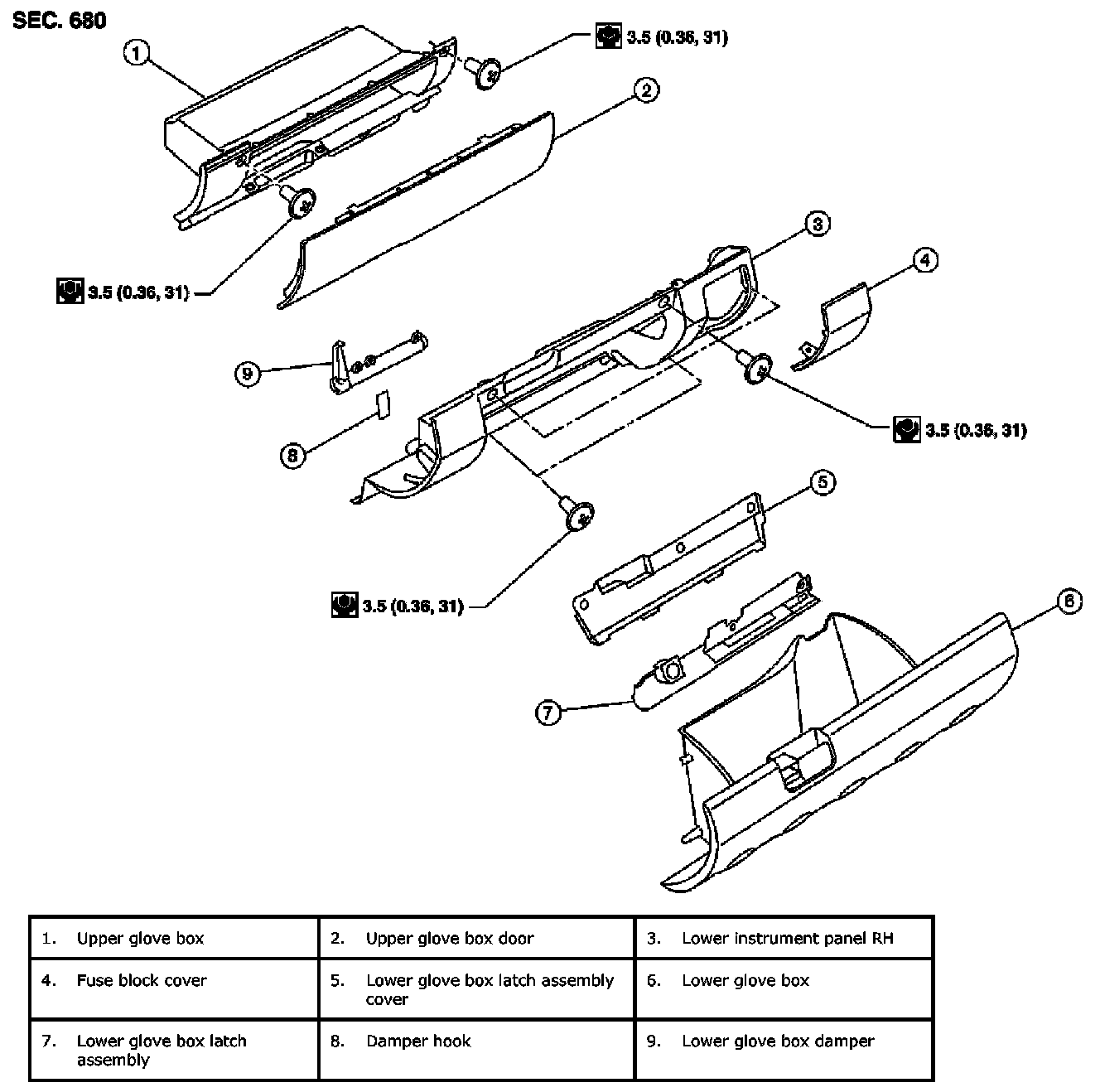

INSTRUMENT LOWER PANEL RH AND GLOVE BOXDisassembly 1.
Remove fuse block cover.
2.
Remove damper hook.
3.
Remove lower glove box latch cover.
4.
Remove lower glove box latch assembly.
AssemblyAssembly is in the reverse order of disassembly.
