Door Lock Cylinder: Testing and Inspection

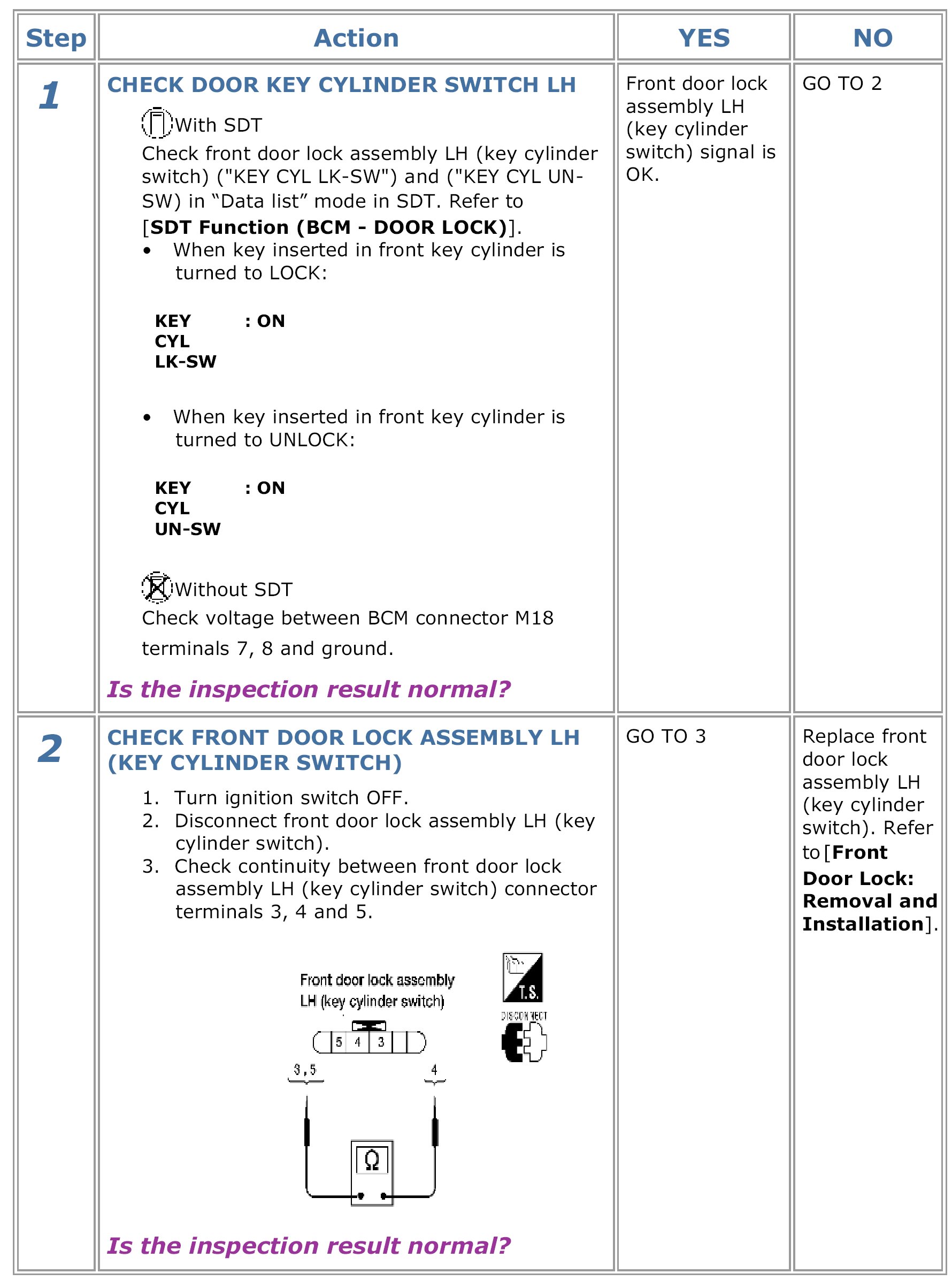

Key Cylinder Switch Circuit Check [Driver Side]DescriptionThe main power window and door lock/unlock switch detects condition of the door key cylinder switch and transmits to
BCM as the LOCK or UNLOCK signal.

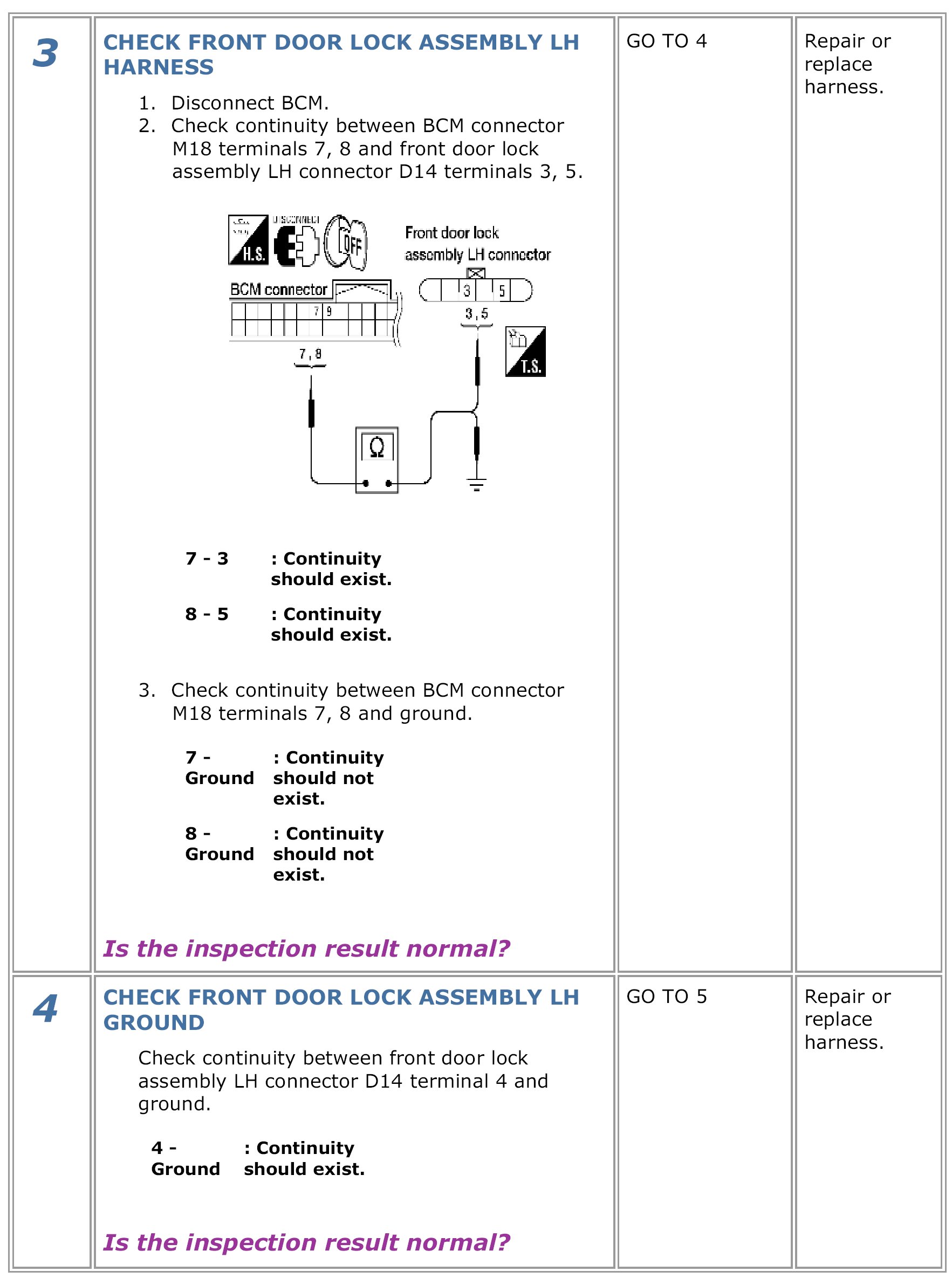

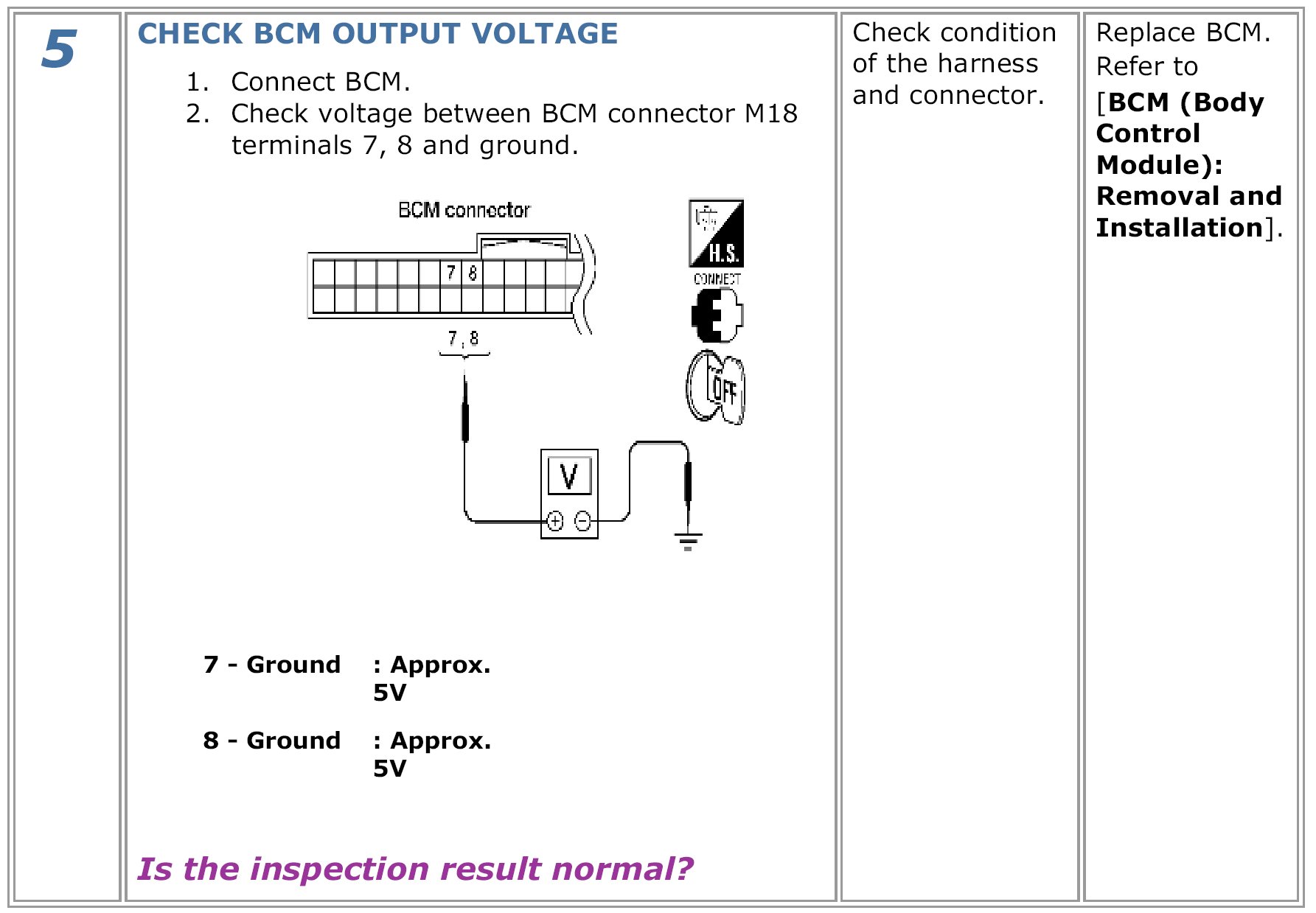

Component Function CheckDiagnosis Procedure
